ELECTRICAL/BULBS - CHASSIS for 2010 Toyota Prius

Select BULBS - CHASSIS Part

2010 Toyota Prius

Change vehicle

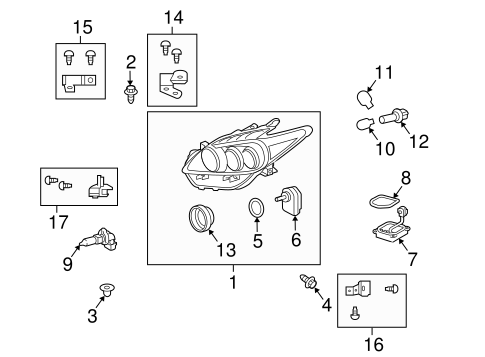

No. Part # Part # / Description List Price Price
1 81145-47221 81145-47221 / Composite Assembly

Headlamp Assembly, RIGHT

W/LED, 2010-11

$813.31 $596.53
1 81185-47221 81185-47221 / Composite Assembly

Headlamp Assembly, LEFT

W/LED, 2010-11

$813.31 $596.53
1 81145-47221 81145-47221 / Composite Assembly

PRIUS; W/LED; RIGHT; TO 2/10

$813.31 $596.53
1 81185-47221 81185-47221 / Composite Assembly

PRIUS; W/LED; LEFT; TO 2/10

$813.31 $596.53
2 90159-A0029 90159-A0029 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

W/LED, 2010-11

$0.86 $0.63
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

W/LED, 2010-11

$1.15 $0.84
5 90075-99120 90075-99120 / Leveling Motor Packing

Headlamp Assembly Packing, LEFT

W/LED, 2010-11

$3.62 $2.66
5 90075-99120 90075-99120 / Leveling Motor Packing

Headlamp Assembly Packing, RIGHT

W/LED, 2010-11

$3.62 $2.66
6 85661-12020 85661-12020 / Leveling Motor

Leveling Motor, LEFT

W/LED, 2010-11

$138.35 $101.47
6 85661-12020 85661-12020 / Leveling Motor

Leveling Motor, RIGHT

W/LED, 2010-11

$138.35 $101.47
6 85661-12020 85661-12020 / Leveling Motor

Motor

HED HEADLAMP LEVELING MOTOR; PRIUS

$138.35 $101.47
7 81107-47290 81107-47290 / Control Module

Control Module, LEFT

W/LED, 2010-11

$262.04 $192.20
7 81107-47290 81107-47290 / Control Module

Control Module, RIGHT

W/LED, 2010-11

$262.04 $192.20
7 81107-47290 81107-47290 / Control Module

LED CONTROL MODULE; PRIUS

$262.04 $192.20
8 90075-68007 90075-68007 / Headlamp Assembly Gasket

Control Module Gasket, LEFT

W/LED, 2010-11

$11.03 $8.09
8 90075-68007 90075-68007 / Headlamp Assembly Gasket

Control Module Gasket, RIGHT

W/LED, 2010-11

$11.03 $8.09
9 90981-13046 90981-13046 / High Beam Bulb

Bulb, RIGHT

W/LED, 2010-11

$23.99 $17.59
9 90981-13046 90981-13046 / High Beam Bulb

Bulb, LEFT

W/LED, 2010-11

$23.99 $17.59
11 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, LEFT

W/LED, 2010-11

$1.04 $0.77
11 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, RIGHT

W/LED, 2010-11

$1.04 $0.77
11 00234-00192 00234-00192 / Bulb

Exterior Bulbs

PRIUS; LICENSE PLATE LAMP

$1.04 $0.77
12 90075-60077 90075-60077 / Marker Lamp Bulb Socket

Socket, LEFT

W/LED, 2010-11, PARK LAMP BULB

$11.03 $8.09
15 81193-47040 81193-47040 / Repair Bracket

Repair Bracket, RIGHT

W/LED, 2010-11, UPPER, OUTER

$6.64 $4.87
17 81195-47040 81195-47040 / Repair Bracket

Repair Bracket, RIGHT

W/LED, 2010-11, LOWER, OUTER

$12.38 $9.09
No. Part # Part # / Description List Price Price
1 81170-47211 81170-47211 / Composite Assembly

Headlamp Assembly, LEFT

W/O LED

$316.73 $232.31
1 81130-47211 81130-47211 / Composite Assembly

Headlamp Assembly, RIGHT

W/O LED

$316.73 $232.31
1 81170-47211 81170-47211 / Composite Assembly

PRIUS; W/O LED; LEFT

$316.73 $232.31
1 81130-47211 81130-47211 / Composite Assembly

PRIUS; W/O LED; RIGHT

$316.73 $232.31
2 90159-A0029 90159-A0029 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

W/O LED

$0.86 $0.63
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

W/O LED

$1.15 $0.84
4 90105-06298 90105-06298 / Headlamp Assembly Lower Bolt

Headlamp Assembly Bolt, RIGHT

W/O LED

$0.86 $0.63
4 90105-06298 90105-06298 / Headlamp Assembly Lower Bolt

Headlamp Assembly Bolt, LEFT

W/O LED

$0.86 $0.63
5 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

W/O LED

$23.99 $17.59
5 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

W/O LED

$23.99 $17.59
5 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

PRIUS; 12V65W

$23.99 $17.59
6 90981-13075 90981-13075 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

W/O LED

$21.72 $15.93
6 90981-13075 90981-13075 / Fog Lamp Bulb

Low Beam Bulb, LEFT

W/O LED

$21.72 $15.93
7 00234-00192 00234-00192 / Bulb

Signal Lamp Bulb, RIGHT

W/O LED

$1.04 $0.77
7 00234-00192 00234-00192 / Bulb

Signal Lamp Bulb, LEFT

W/O LED

$1.04 $0.77
9 90075-60077 90075-60077 / Marker Lamp Bulb Socket

Socket, RIGHT

W/O LED, SIGNAL BULB

$11.03 $8.09
10 81125-47230 81125-47230 / Wire Harness

Wire Harness, RIGHT

W/O LED

$49.16 $36.06
10 81125-47230 81125-47230 / Wire Harness

Wire Harness, LEFT

W/O LED

$49.16 $36.06
11 90069-81008 90069-81008 / Low Beam Bulb Cover

Rear Cover, LEFT

W/O LED

$11.67 $8.55
11 90069-81008 90069-81008 / Low Beam Bulb Cover

Rear Cover, RIGHT

W/O LED

$11.67 $8.55
12 81193-47030 81193-47030 / Repair Bracket

Repair Bracket, RIGHT

W/O LED, UPPER, OUTER

$11.78 $8.64
12 81194-47030 81194-47030 / Repair Bracket

Repair Bracket, LEFT

W/O LED, UPPER, OUTER

$11.78 $8.64
13 81194-47040 81194-47040 / Repair Bracket

Repair Bracket, LEFT

W/O LED, UPPER, INNER

$6.64 $4.87
14 81195-47030 81195-47030 / Repair Bracket

Repair Bracket, RIGHT

W/O LED, LOWER, OUTER

$12.10 $8.87
14 81196-47030 81196-47030 / Repair Bracket

Repair Bracket, LEFT

W/O LED, LOWER, OUTER

$12.10 $8.87
15 81196-47040 81196-47040 / Repair Bracket

Repair Bracket, LEFT

W/O LED, LOWER, INNER

$12.38 $9.09

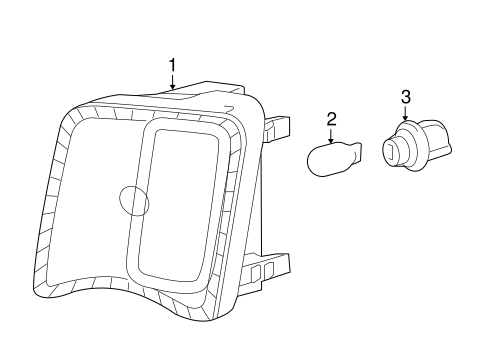

No. Part # Part # / Description List Price Price
1 81511-47020 81511-47020 / Turn Signal Lamp

Turn Signal Lamp, RIGHT

2010-11

$26.72 $19.59
1 81521-47020 81521-47020 / Turn Signal Lamp

Turn Signal Lamp, LEFT

2010-11

$26.72 $19.59
2 90981-15021 90981-15021 / Bulb

Bulb, RIGHT

2010-11

$4.80 $3.51
2 90981-15021 90981-15021 / Bulb

Bulb, LEFT

2010-11

$4.80 $3.51
2 90981-15021 90981-15021 / Bulb

Exterior Bulbs

PRIUS; FRONT TURN SIGNAL

$4.80 $3.51
3 90075-60028 90075-60028 / Socket

Socket, RIGHT

2010-11

$9.97 $7.31
3 90075-60028 90075-60028 / Socket

Socket, LEFT

2010-11

$9.97 $7.31

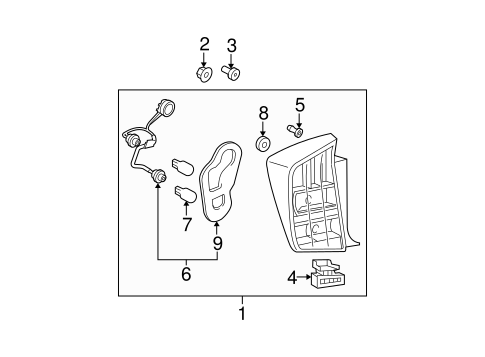

No. Part # Part # / Description List Price Price
1 81551-47111 81551-47111 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

2010-11

$306.37 $224.71
1 81561-47111 81561-47111 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

2010-11

$306.37 $224.71
2 90080-17189 90080-17189 / Tail Lamp Assembly Nut

Tail Lamp Assembly Nut, RIGHT

2010-11

$1.95 $1.43
2 90080-17189 90080-17189 / Tail Lamp Assembly Nut

Tail Lamp Assembly Nut, LEFT

2010-11

$1.95 $1.43
3 76817-0E010 76817-0E010 / Combo Lamp Assembly Clip

Tail Lamp Assembly Clip, RIGHT

2010-11, LOWER

$1.70 $1.24
3 76817-0E010 76817-0E010 / Combo Lamp Assembly Clip

Tail Lamp Assembly Clip, LEFT

2010-11, LOWER

$1.70 $1.24
3 81496-60010 81496-60010 / Tail Lamp Assembly Guide

Tail Lamp Assembly Clip, RIGHT

2010-11, UPPER

$1.87 $1.37
3 81496-60010 81496-60010 / Tail Lamp Assembly Guide

Tail Lamp Assembly Clip, LEFT

2010-11, UPPER

$1.87 $1.37
4 52562-47010 52562-47010 / Tail Lamp Assembly Retainer

Tail Lamp Assembly Retainer, RIGHT

2010-11

$18.73 $13.74
4 52563-47010 52563-47010 / Tail Lamp Assembly Retainer

Tail Lamp Assembly Retainer, LEFT

2010-11

$18.73 $13.74
5 81496-28010 81496-28010 / Tail Lamp Assembly Guide

Tail Lamp Assembly Guide, LEFT

2010-11

$2.87 $2.11
5 81496-28010 81496-28010 / Tail Lamp Assembly Guide

Tail Lamp Assembly Guide, RIGHT

2010-11

$2.87 $2.11
6 81555-47110 81555-47110 / Socket & Wire

Socket & Wire, RIGHT

2010-11

$31.75 $23.29
6 81565-47110 81565-47110 / Socket & Wire

Socket & Wire, LEFT

2010-11

$31.75 $23.29
7 90981-13043 90981-13043 / Bulb

Tail Lamp Bulb, RIGHT

2010-11, TURN SIGNAL

$5.09 $3.73
7 90981-15011 90981-15011 / Bulb

Tail Lamp Bulb, LEFT

2010-11, BACK-UP

$6.67 $4.89
7 90981-15011 90981-15011 / Bulb

Tail Lamp Bulb, RIGHT

2010-11, BACK-UP

$6.67 $4.89
7 90981-13043 90981-13043 / Bulb

Tail Lamp Bulb, LEFT

2010-11, TURN SIGNAL

$5.09 $3.73
7 90981-13043 90981-13043 / Bulb

Exterior Bulbs

PRIUS; BACK-UP LAMP

$5.09 $3.73
7 90981-15011 90981-15011 / Bulb

Exterior Bulbs

PRIUS; REAR TURN SIGNAL

$6.67 $4.89
8 81554-47110 81554-47110 / Tail Lamp Assembly Seal

Tail Lamp Bulb Gasket, LEFT

2010-11, SMALL

$21.09 $15.47
8 81554-47110 81554-47110 / Tail Lamp Assembly Seal

Tail Lamp Bulb Gasket, RIGHT

2010-11, SMALL

$21.09 $15.47
9 81562-47110 81562-47110 / Tail Lamp Bulb Gasket

Tail Lamp Bulb Gasket, LEFT

2010-11, LARGE

$15.63 $11.47
9 81552-47110 81552-47110 / Tail Lamp Bulb Gasket

Tail Lamp Bulb Gasket, RIGHT

2010-11, LARGE

$15.63 $11.47

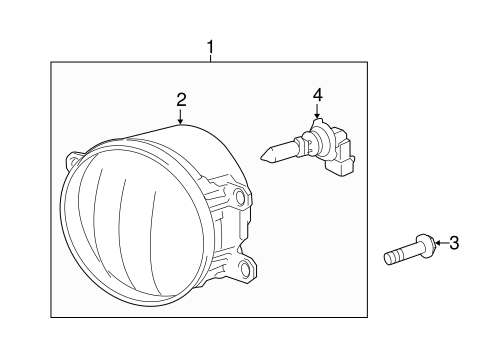

No. Part # Part # / Description List Price Price
1 81210-0D042 81210-0D042 / Fog Lamp Assembly

Fog Lamp, RIGHT

$177.45 $130.15
1 81220-0D042 81220-0D042 / Fog Lamp Assembly

Fog Lamp, LEFT

$177.45 $130.15
1 81210-0D042 81210-0D042 / Fog Lamp Assembly

PRIUS; RIGHT

$177.45 $130.15
1 81220-0D042 81220-0D042 / Fog Lamp Assembly

PRIUS; LEFT

$177.45 $130.15
3 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Lens & Housing Screw, RIGHT

$0.98 $0.72
3 93567-A5014 93567-A5014 / Fog Lamp Assembly Screw

Lens & Housing Screw, LEFT

$0.98 $0.72
4 90981-13075 90981-13075 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

OSRAM

$21.72 $15.93
4 90981-13075 90981-13075 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

OSRAM

$21.72 $15.93
4 90981-13081 90981-13081 / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

PHILIPS

$23.91 $17.53
4 90981-13081 90981-13081 / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

PHILIPS

$23.91 $17.53
4 90981-13075 90981-13075 / Fog Lamp Bulb

Headlamp Bulb

PRIUS; 12V55W

$21.72 $15.93
4 90981-13075 90981-13075 / Fog Lamp Bulb

PRIUS; 12V55W; PHILLIPS

$21.72 $15.93
4 90981-13081 90981-13081 / Fog Lamp Bulb

PRIUS; 12V55W; OSRAM

$23.91 $17.53
