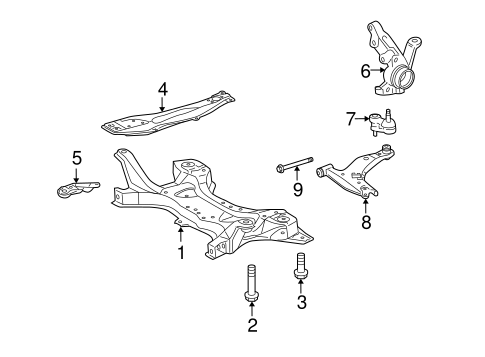

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2010 Toyota Matrix

Select SUSPENSION COMPONENTS Part

2010 Toyota Matrix

Change vehicle

No. Part # Part # / Description List Price Price
1 51201-02152 51201-02152 / Engine Cradle

2.4 LITER, 2WD

$1,309.98 $960.81
1 51201-12422 51201-12422 / Engine Cradle

2.4 LITER, 4WD

$1,333.51 $978.07
2 90119-A0244 90119-A0244 / Engine Cradle Front Bolt

Engine Cradle Front Bolt, LEFT

2.4 LITER

$6.98 $5.12
2 90119-A0244 90119-A0244 / Engine Cradle Front Bolt

Engine Cradle Front Bolt, RIGHT

2.4 LITER

$6.98 $5.12
3 90119-A0014 90119-A0014 / Engine Cradle Rear Bolt

Engine Cradle Rear Bolt, RIGHT

2.4 LITER

$6.29 $4.61
3 90119-A0014 90119-A0014 / Engine Cradle Rear Bolt

Engine Cradle Rear Bolt, LEFT

2.4 LITER

$6.29 $4.61
4 51204-12160 51204-12160 / Engine Support

2.4 LITER, 4WD

$271.81 $199.36
4 51204-02080 51204-02080 / Engine Support

2.4 LITER, 2WD

$271.81 $199.36
5 51963-02170 51963-02170 / Tow Hook Bracket

2.4 LITER

$45.63 $33.46
6 43211-02230 43211-02230 / Knuckle

Knuckle, RIGHT

2.4 LITER, 2WD

$238.39 $174.85
6 43212-02230 43212-02230 / Knuckle

Knuckle, LEFT

2.4 LITER, 2WD

$238.39 $174.85
6 43211-02210 43211-02210 / Knuckle

Knuckle, RIGHT

2.4 LITER, 4WD

$238.39 $174.85
6 43212-02210 43212-02210 / Knuckle

Knuckle, LEFT

2.4 LITER, 4WD

$238.39 $174.85
7 43330-09660 43330-09660 / Lower Ball Joint

Lower Ball Joint, LEFT

2.4 LITER

$59.47 $43.62
7 43330-09660 43330-09660 / Lower Ball Joint

Lower Ball Joint, RIGHT

2.4 LITER

$59.47 $43.62
8 48069-02190 48069-02190 / Control Arm

Lower Control Arm, LEFT

2.4 LITER

$200.07 $146.74
8 48068-02190 48068-02190 / Control Arm

Lower Control Arm, RIGHT

2.4 LITER

$200.07 $146.74
9 90080-11506 90080-11506 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

2.4 LITER

$5.03 $3.68
9 90080-11506 90080-11506 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

2.4 LITER

$5.03 $3.68
FRONT SUSPENSION/SUSPENSION COMPONENTS for 2010 Toyota Matrix #2
No. Part # Part # / Description List Price Price
1 43502-02090 43502-02090 / Hub Assembly

Front Hub

MATRIX; 2.4L

$156.43 $114.74
2 90080-36193 90080-36193 / Bearing

MATRIX; 2.4L

$104.73 $76.81
3 43212-02230 43212-02230 / Knuckle

MATRIX; 2.4L; W/O AWD; LEFT

$238.39 $174.85
3 43211-02230 43211-02230 / Knuckle

MATRIX; 2.4L; W/O AWD; RIGHT

$238.39 $174.85
4 48510-09T00 48510-09T00 / Strut

MATRIX; 2.4L; W/O AWD; W/XRS; RIGHT

$133.58 $97.98
4 48520-09L30 48520-09L30 / Strut

MATRIX; 2.4L; W/O AWD; W/XRS; LEFT

$133.58 $97.98
5 48158-02060 48158-02060 / Lower Insulator

Spring Insulator

MATRIX; LOWER

$21.58 $15.82
5 48044-02120 48044-02120 / Upper Seat

Spring Insulator

MATRIX; UPPER

$17.18 $12.60
6 48331-AB010 48331-AB010 / Strut Bumper

MATRIX

$14.91 $10.94
7 48157-02070 48157-02070 / Upper Insulator

Dust Shield

MATRIX

$24.16 $17.73
8 48131-02D40 48131-02D40 / Coil Spring

MATRIX; 2.4L; W/O AWD; W/XRS; MANUAL TRANS

$66.16 $48.53
8 48131-02D50 48131-02D50 / Coil Spring

MATRIX; 2.4L; W/O AWD; W/XRS; AUTO TRANS

$70.56 $51.75
9 48609-02190 48609-02190 / Strut Mount

MATRIX

$108.12 $79.30
10 48068-02190 48068-02190 / Control Arm

MATRIX; RIGHT

$200.07 $146.74
10 48069-02190 48069-02190 / Control Arm

MATRIX; LEFT

$200.07 $146.74
11 43330-09660 43330-09660 / Lower Ball Joint

MATRIX; 2.4L

$59.47 $43.62
12 51201-02152 51201-02152 / Engine Cradle

Cross-member

MATRIX; W/O AWD

$1,309.98 $960.81
13 48811-AB011 48811-AB011 / Stabilizer Bar

MATRIX; W/O AWD

$126.65 $92.89
14 48820-02030 48820-02030 / Stabilizer Link

Link

MATRIX

$119.18 $87.41
15 48815-02100 48815-02100 / Stabilizer Bar Bushing

Bushings

MATRIX

$13.02 $9.55
16 48824-06020 48824-06020 / Bracket

MATRIX

$21.41 $15.70
