BRAKES/REAR BRAKES for 2010 Toyota Matrix

Select REAR BRAKES Part

2010 Toyota Matrix

Change vehicle

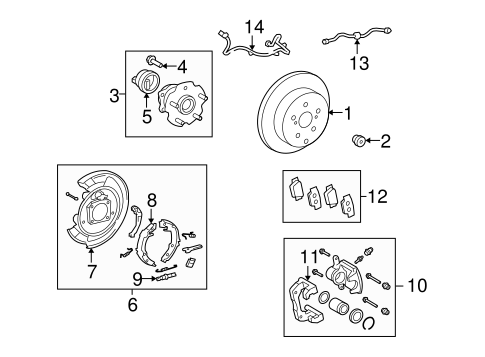

No. Part # Part # / Description List Price Price
1 42431-02220 42431-02220 / Rotor

Rotor, LEFT

2WD, W/INDEPENDENT SUSPENSION

$77.32 $56.71
1 42431-02220 42431-02220 / Rotor

Rotor, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$77.32 $56.71
2 47491-22020 47491-22020 / Rotor Plug

Rotor Plug, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$3.10 $2.28
2 47491-22020 47491-22020 / Rotor Plug

Rotor Plug, LEFT

2WD, W/INDEPENDENT SUSPENSION

$3.10 $2.28
3 42450-02150 42450-02150 / Hub & Bearing

Hub & Bearing, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$406.76 $298.34
3 42450-02150 42450-02150 / Hub & Bearing

Hub & Bearing, LEFT

2WD, W/INDEPENDENT SUSPENSION

$406.76 $298.34
4 90942-02049 90942-02049 / Wheel Stud

Hub & Bearing Stud, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$4.25 $3.12
6 46520-02090 46520-02090 / Brake Assembly

Brake Assembly, LEFT

2WD, W/INDEPENDENT SUSPENSION

- -
6 46510-02090 46510-02090 / Brake Assembly

Brake Assembly, RIGHT

2WD, W/INDEPENDENT SUSPENSION

- -
7 46504-02090 46504-02090 / Splash Shield

Splash Shield, LEFT

2WD, W/INDEPENDENT SUSPENSION

$311.83 $228.71
7 46503-02090 46503-02090 / Splash Shield

Splash Shield, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$311.83 $228.71
8 46540-42010 46540-42010 / Park Brake Shoes

Park Brake Shoes, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$26.78 $19.64
8 46540-42010 46540-42010 / Park Brake Shoes

Park Brake Shoes, LEFT

2WD, W/INDEPENDENT SUSPENSION

$26.78 $19.64
8 46540-42010 46540-42010 / Park Brake Shoes

Shoes

MATRIX

$26.78 $19.64
9 47406-32010 47406-32010 / Adjuster

Adjuster, LEFT

2WD, W/INDEPENDENT SUSPENSION

$20.83 $15.27
9 47405-32010 47405-32010 / Adjuster

Adjuster, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$20.83 $15.27
10 47830-02200 47830-02200 / Caliper

Caliper, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$324.93 $238.33
10 47850-02200 47850-02200 / Caliper

Caliper, LEFT

2WD, W/INDEPENDENT SUSPENSION

$324.93 $238.33
10 47830-02200 47830-02200 / Caliper

MATRIX; 2.4L; W/O AWD; W/XRS; RIGHT

$324.93 $238.33
11 47822-02200 47822-02200 / Caliper Support

Caliper Support, LEFT

2WD, W/INDEPENDENT SUSPENSION

$97.63 $71.61
11 47821-02200 47821-02200 / Caliper Support

Caliper Support, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$97.63 $71.61
12 04466-02220 04466-02220 / Brake Pads

2WD, W/INDEPENDENT SUSPENSION

$47.99 $35.25
13 90947-A2020 90947-A2020 / Brake Hose

Brake Hose, LEFT

2WD, W/INDEPENDENT SUSPENSION

$39.62 $29.06
13 90947-A2019 90947-A2019 / Brake Hose

Brake Hose, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$39.62 $29.06
13 90947-A2020 90947-A2020 / Brake Hose

Flex Hose

MATRIX; 2.4L; W/O AWD; W/XRS; LEFT

$39.62 $29.06
14 89516-02150 89516-02150 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

2WD, W/INDEPENDENT SUSPENSION

$66.20 $48.56
14 89516-02160 89516-02160 / ABS Sensor Wire

ABS Sensor Wire, LEFT

2WD, W/INDEPENDENT SUSPENSION

$79.24 $58.12

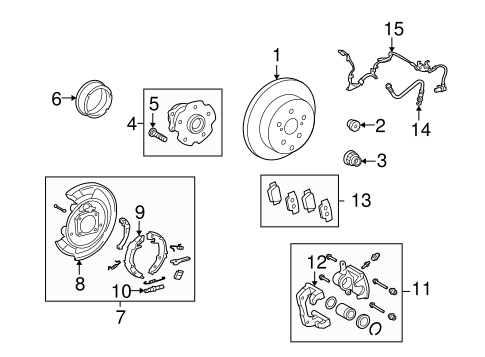

No. Part # Part # / Description List Price Price
1 42431-02220 42431-02220 / Rotor

MATRIX; 2.4L; W/O AWD; W/XRS

$77.32 $56.71
3 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

4WD

$9.40 $6.89
3 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

4WD

$9.40 $6.89
4 42410-02160 42410-02160 / Hub & Bearing

Hub & Bearing, LEFT

4WD

$382.00 $280.17
4 42410-02160 42410-02160 / Hub & Bearing

Hub & Bearing, RIGHT

4WD

$382.00 $280.17
6 42451-12020 42451-12020 / Deflector

Deflector, RIGHT

4WD

$13.42 $9.85
6 42451-12020 42451-12020 / Deflector

Deflector, LEFT

4WD

$13.42 $9.85
11 47850-02200 47850-02200 / Caliper

MATRIX; 2.4L; W/O AWD; W/XRS; LEFT

$324.93 $238.33
13 04466-02220 04466-02220 / Brake Pads

Rear Pads

MATRIX; 2.4L; W/O AWD; W/XRS

$47.99 $35.25
14 90947-A2019 90947-A2019 / Brake Hose

Flex Hose

MATRIX; 2.4L; W/O AWD; W/XRS; RIGHT

$39.62 $29.06
15 89546-12120 89546-12120 / ABS Sensor Wire

ABS Sensor Wire, LEFT

4WD

$245.43 $180.01
15 89545-12120 89545-12120 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

4WD

$245.43 $180.01
No. Part # Part # / Description List Price Price
3 90942-02049 90942-02049 / Wheel Stud

Hub & Bearing Stud, LEFT

2WD, W/O INDEPENDENT SUSPENSION

$4.25 $3.12
5 47803-02020 47803-02020 / Splash Shield

Splash Shield, RIGHT

2WD, W/O INDEPENDENT SUSPENSION

$162.57 $119.23
5 47804-02020 47804-02020 / Splash Shield

Splash Shield, LEFT

2WD, W/O INDEPENDENT SUSPENSION

$162.57 $119.23
5 47803-02020 47803-02020 / Splash Shield

Backing Plate

MATRIX; RIGHT

$162.57 $119.23
5 47804-02020 47804-02020 / Splash Shield

Backing Plate

MATRIX; LEFT

$162.57 $119.23
8 04466-02310 04466-02310 / Brake Pads

2WD, W/O INDEPENDENT SUSPENSION

$57.23 $41.98
9 90947-A2023 90947-A2023 / Brake Hose

Brake Hose, RIGHT

2WD, W/O INDEPENDENT SUSPENSION

$61.20 $44.88
9 90947-A2024 90947-A2024 / Brake Hose

Brake Hose, LEFT

2WD, W/O INDEPENDENT SUSPENSION

$61.20 $44.88
10 89516-02141 89516-02141 / ABS Sensor Wire

ABS Sensor Wire, LEFT

2WD, W/O INDEPENDENT SUSPENSION

$44.02 $32.28
10 89516-02131 89516-02131 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

2WD, W/O INDEPENDENT SUSPENSION

$35.23 $25.84
No. Part # Part # / Description List Price Price
N/A 47831-06050 47831-06050 / Caliper Piston

MATRIX; 2.4L; W/O AWD; W/XRS

$21.09 $15.47
N/A 04479-06280 04479-06280 / Caliper Overhaul Kit

Overhaul Kit

MATRIX; 2.4L; W/O AWD; W/XRS

$32.53 $23.85
No. Part # Part # / Description List Price Price
N/A 04479-06280 04479-06280 / Caliper Overhaul Kit

MATRIX; 2.4L; W/O AWD; W/XRS

$32.53 $23.85
