ELECTRICAL/TAIL LAMPS for 2010 Toyota Avalon

Select TAIL LAMPS Part

2010 Toyota Avalon

Change vehicle

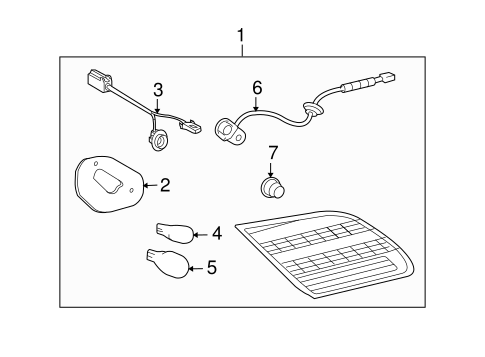

No. Part # Part # / Description List Price Price
1 81550-07050 81550-07050 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

ON QUARTER PANEL, TO 10/09

$157.51 $115.52
1 81560-07050 81560-07050 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

ON QUARTER PANEL, TO 10/09

$157.51 $115.52
1 81560-AC090 81560-AC090 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

ON QUARTER PANEL, FROM 10/09

$157.51 $115.52
1 81550-AC090 81550-AC090 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

ON QUARTER PANEL, FROM 10/09

$157.51 $115.52
2 81552-AC090 81552-AC090 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, RIGHT

ON QUARTER PANEL

$15.72 $11.53
2 81562-AC090 81562-AC090 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, LEFT

ON QUARTER PANEL

$15.72 $11.53
3 58385-AC040 58385-AC040 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, RIGHT

ON QUARTER PANEL

$21.41 $15.70
3 58386-AC040 58386-AC040 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, LEFT

ON QUARTER PANEL

$21.41 $15.70
4 81555-AC090 81555-AC090 / Socket & Wire

Socket & Wire, LEFT

ON QUARTER PANEL

$31.86 $23.38
4 81555-AC090 81555-AC090 / Socket & Wire

Socket & Wire, RIGHT

ON QUARTER PANEL

$31.86 $23.38
5 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, RIGHT

ON QUARTER PANEL

$5.23 $3.83
5 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, LEFT

ON QUARTER PANEL

$5.23 $3.83
5 90981-13044 90981-13044 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; STOP LAMP

$5.23 $3.83
6 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, LEFT

ON QUARTER PANEL

$6.67 $4.89
6 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, RIGHT

ON QUARTER PANEL

$6.67 $4.89
6 90981-15011 90981-15011 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; REAR TURN SIGNAL

$6.67 $4.89
7 00234-00194 00234-00194 / Bulb

Tail Lamp Bulb, RIGHT

ON QUARTER PANEL

$0.57 $0.41
7 00234-00194 00234-00194 / Bulb

Tail Lamp Bulb, LEFT

ON QUARTER PANEL

$0.57 $0.41
7 00234-00194 00234-00194 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; COMBINATION LAMP

$0.57 $0.41
No. Part # Part # / Description List Price Price
1 81590-07020 81590-07020 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

ON TRUNK LID, W/O LIMITED, TO 10/09

$87.17 $63.94
1 81580-AC020 81580-AC020 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

ON TRUNK LID, W/O LIMITED, FROM 10/09

$88.24 $64.72
1 81580-07020 81580-07020 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

ON TRUNK LID, W/O LIMITED, TO 10/09

$87.17 $63.94
1 81590-AC020 81590-AC020 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

ON TRUNK LID, W/O LIMITED, FROM 10/09

$88.24 $64.72
2 81584-AC020 81584-AC020 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, RIGHT

ON TRUNK LID

$15.72 $11.53
2 81594-AC020 81594-AC020 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, LEFT

ON TRUNK LID

$15.72 $11.53
3 81585-AC020 81585-AC020 / Socket & Wire

Socket & Wire, LEFT

ON TRUNK LID

$31.69 $23.24
3 81585-AC020 81585-AC020 / Socket & Wire

Socket & Wire, RIGHT

ON TRUNK LID

$31.69 $23.24
5 90981-11059 90981-11059 / Bulb

Tail Lamp Bulb, RIGHT

ON TRUNK LID, #2

$4.77 $3.50
5 90981-11059 90981-11059 / Bulb

Tail Lamp Bulb, LEFT

ON TRUNK LID, #2

$4.77 $3.50
