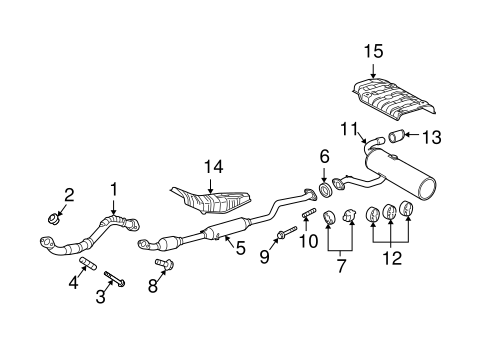

EXHAUST SYSTEM/EXHAUST COMPONENTS for 2010 Scion tC

Select EXHAUST COMPONENTS Part

2010 Scion tC

Change vehicle

No. Part # Part # / Description List Price Price
1 17410-28501 17410-28501 / Front Pipe

$230.57 $184.63
2 17451-0D140 17451-0D140 / Converter & Pipe Gasket

Front Pipe Gasket

$42.70 $31.32
3 90080-10291 90080-10291 / Pipe Bolt

Front Pipe Bolt

$4.80 $3.51
4 90501-A0005 90501-A0005 / Exhaust Pipe Spring

Front Pipe Spring

$5.11 $3.75
5 17420-28520 17420-28520 / Center Pipe

$913.00 $731.12
6 17451-0V040 17451-0V040 / Muffler & Pipe Gasket

Center Pipe Gasket

$43.30 $31.76
7 17565-0P031 17565-0P031 / Muffler & Pipe Hanger

Center Pipe Insulator

$17.44 $12.80
8 91512-81035 91512-81035 / Center Pipe Bolt

Center Pipe Front Bolt

$1.35 $0.99
9 90109-A0013 90109-A0013 / Muffler & Pipe Bolt

Center Pipe Rear Bolt

$2.27 $1.66
10 90501-A0006 90501-A0006 / Muffler & Pipe Spring

Center Pipe Spring

$5.11 $3.75
11 17430-28611 17430-28611 / Muffler & Pipe

$413.89 $331.44
11 17430-28611 17430-28611 / Muffler & Pipe

Muffler

TC

$413.89 $331.44
12 17565-0P031 17565-0P031 / Muffler & Pipe Hanger

Muffler & Pipe Insulator

$17.44 $12.80
13 17408-46020 17408-46020 / Tail Pipe Extension

Tailpipe Extension

$76.83 $61.52
13 17408-46020 17408-46020 / Tail Pipe Extension

TC

$76.83 $61.52
14 58151-21010 58151-21010 / Heat Shield

FRONT

$68.96 $50.58
15 58327-21050 58327-21050 / Heat Shield

REAR

$68.96 $50.58
