FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2009 Toyota Yaris

Select FUEL SYSTEM COMPONENTS Part

2009 Toyota Yaris

Change vehicle

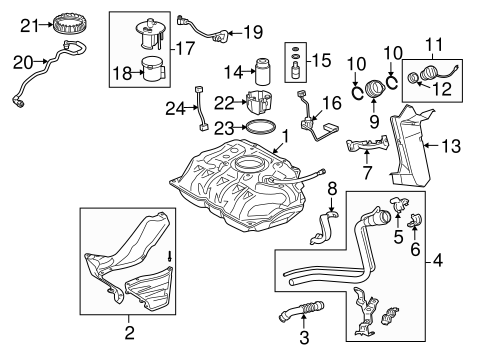

No. Part # Part # / Description List Price Price
1 77001-52212 77001-52212 / Fuel Tank

- -
2 77606-52071 77606-52071 / Vent Cover

$101.86 $74.71
3 77213-52140 77213-52140 / Filler Hose

$36.43 $26.72
4 77201-52231 77201-52231 / Filler Pipe

$169.78 $124.53
5 77219-21010 77219-21010 / Filler Pipe Cover

Pipe Holder

UPPER

$9.37 $6.87
6 77248-52060 77248-52060 / Pipe Holder

LOWER

$11.64 $8.54
7 77296-52020 77296-52020 / Support Bracket

$16.18 $11.87
8 77278-52030 77278-52030 / Protector

$17.35 $12.72
9 77291-52010 77291-52010 / Filler Shield

HATCHBACK

$12.38 $9.09
9 77291-52120 77291-52120 / Filler Shield

SEDAN

$33.99 $24.92
10 77391-60030 77391-60030 / Filler Shield O-Ring

SEDAN, INNER

$3.74 $2.75
10 77391-02040 77391-02040 / Pocket O-Ring

Filler Shield O-Ring

SEDAN, OUTER

$2.93 $2.15
11 77300-06040 77300-06040 / Filler Cap

Fuel Cap

$20.91 $15.34
13 77277-52031 77277-52031 / Pipe Shield

$49.51 $36.31
14 23220-21210 23220-21210 / Fuel Pump

$344.41 $252.61
15 23280-21010 23280-21010 / Fuel Pressure Regulator

Pressure Reg

$150.67 $110.51
15 23280-21010 23280-21010 / Fuel Pressure Regulator

YARIS

$150.67 $110.51
16 83320-52261 83320-52261 / Fuel Gauge Sending Unit

Fuel Sender Unit

$98.32 $72.11
16 83320-52261 83320-52261 / Fuel Gauge Sending Unit

YARIS

$98.32 $72.11
17 77024-52180 77024-52180 / Suction Case

HATCHBACK

$177.19 $129.97
19 77404-52050 77404-52050 / Vent Hose

$24.82 $18.20
20 77209-52101 77209-52101 / Tube

$15.31 $11.24
21 77144-52040 77144-52040 / Upper Retainer

$27.70 $20.31
22 77131-52071 77131-52071 / Lower Retainer

$21.29 $15.62
23 77169-52030 77169-52030 / Fuel Pump Assembly Gasket

Gasket

$10.26 $7.53
24 77785-52060 77785-52060 / Harness

$10.72 $7.86
No. Part # Part # / Description List Price Price
N/A 23807-21090 23807-21090 / Fuel Rail

YARIS

$138.66 $101.70
N/A 23209-21040 23209-21040 / Injector

YARIS

$161.64 $118.56
N/A 90301-07037 90301-07037 / O-Ring

Injector O-Ring

YARIS; FROM 8/07

$3.36 $2.46
No. Part # Part # / Description List Price Price
N/A 78110-52260 78110-52260 / Pedal Travel Sensor

YARIS

$185.70 $136.20
N/A 23291-41010 23291-41010 / Injector Insulators

YARIS

$3.74 $2.75
