BODY/BUMPER & COMPONENTS - REAR for 2009 Toyota Yaris

Select BUMPER & COMPONENTS - REAR Part

2009 Toyota Yaris

Change vehicle

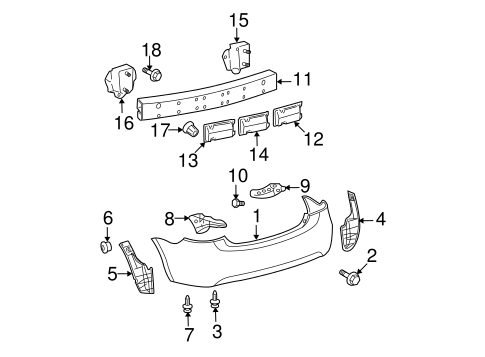

No. Part # Part # / Description List Price Price
1 52159-52954 52159-52954 / Bumper Cover

HATCHBACK

- -
2 90109-06375 90109-06375 / Bumper Cover Bolt

HATCHBACK

$1.09 $0.81
3 52161-02020 52161-02020 / Bumper Cover Clip

HATCHBACK

$2.50 $1.83
4 52591-52270 52591-52270 / Side Seal

Side Seal, RIGHT

HATCHBACK, FROM 01/07

$35.71 $26.19
5 52592-52270 52592-52270 / Side Seal

Side Seal, LEFT

HATCHBACK, FROM 01/07

$35.71 $26.19
6 90189-06013 90189-06013 / Fender Liner Grommet

Side Seal Grommet, LEFT

HATCHBACK

$1.15 $0.84
6 90189-06013 90189-06013 / Fender Liner Grommet

Side Seal Grommet, RIGHT

HATCHBACK

$1.15 $0.84
7 52161-02020 52161-02020 / Bumper Cover Clip

Side Seal Clip, RIGHT

HATCHBACK

$2.50 $1.83
7 52161-02020 52161-02020 / Bumper Cover Clip

Side Seal Clip, LEFT

HATCHBACK

$2.50 $1.83
8 52575-52111 52575-52111 / Side Support

Side Support, RIGHT

HATCHBACK

$38.90 $28.54
9 52576-52091 52576-52091 / Side Support

Side Support, LEFT

HATCHBACK

$38.90 $28.54
10 90159-A0034 90159-A0034 / Side Support Retainer Screw

Side Support Screw, RIGHT

HATCHBACK

$0.86 $0.63
10 90159-A0034 90159-A0034 / Side Support Retainer Screw

Side Support Screw, LEFT

HATCHBACK

$0.86 $0.63
11 52615-52090 52615-52090 / Energy Absorber

Energy Absorber, RIGHT

HATCHBACK

$51.40 $37.70
12 52616-52080 52616-52080 / Energy Absorber

Energy Absorber, LEFT

HATCHBACK

$51.40 $37.70
13 90468-04079 90468-04079 / License Bracket Clip

Energy Absorber Clip, LEFT

HATCHBACK

$1.24 $0.90
13 90468-04079 90468-04079 / License Bracket Clip

Energy Absorber Clip, RIGHT

HATCHBACK

$1.24 $0.90
14 62699-52010 62699-52010 / Energy Absorber Tape

Energy Absorber Tape, RIGHT

HATCHBACK

$1.81 $1.33
14 62699-52010 62699-52010 / Energy Absorber Tape

Energy Absorber Tape, LEFT

HATCHBACK

$1.81 $1.33
15 52171-52030 52171-52030 / Impact Bar

HATCHBACK

$197.30 $144.70
19 52181-52080 52181-52080 / Mount Arm

Mount Arm, RIGHT

HATCHBACK

$39.25 $28.79
20 52182-52080 52182-52080 / Mount Arm

Mount Arm, LEFT

HATCHBACK

$39.25 $28.79
21 90176-08054 90176-08054 / Mount Arm Nut

Mount Arm Nut, LEFT

HATCHBACK

$1.35 $0.99
21 90176-08054 90176-08054 / Mount Arm Nut

Mount Arm Nut, RIGHT

HATCHBACK

$1.35 $0.99
22 90119-08C64 90119-08C64 / Mount Arm Bolt

Mount Arm Bolt, LEFT

HATCHBACK

$1.18 $0.87
22 90119-08C64 90119-08C64 / Mount Arm Bolt

Mount Arm Bolt, RIGHT

HATCHBACK

$1.18 $0.87

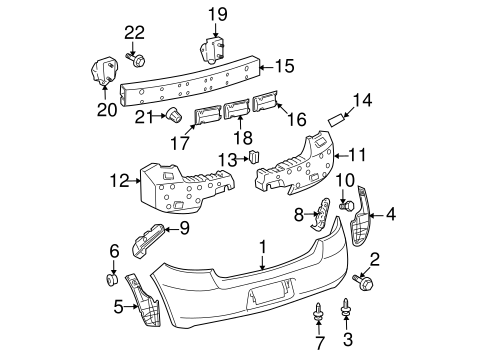

No. Part # Part # / Description List Price Price
1 52159-52929 52159-52929 / Bumper Cover

SEDAN

- -
4 52591-52230 52591-52230 / Side Seal

Side Seal, RIGHT

SEDAN

$31.06 $22.78
5 52592-52220 52592-52220 / Side Seal

Side Seal, LEFT

SEDAN

$31.06 $22.78
7 52161-02020 52161-02020 / Bumper Cover Clip

Side Seal Clip

SEDAN

$2.50 $1.83
8 52575-52142 52575-52142 / Side Support

Side Support, RIGHT

SEDAN, #1

$44.22 $32.43
8 52576-52122 52576-52122 / Side Support

Side Support, LEFT

SEDAN, #1

$44.22 $32.43
9 52156-52091 52156-52091 / Side Support

Side Support, LEFT

SEDAN, #2

$19.94 $14.63
9 52155-52091 52155-52091 / Side Support

Side Support, RIGHT

SEDAN, #2

$19.94 $14.63
10 90159-50353 90159-50353 / Side Trim Panel Fastener

Side Support Screw, RIGHT

SEDAN

$0.92 $0.67
10 90159-50353 90159-50353 / Side Trim Panel Fastener

Side Support Screw, LEFT

SEDAN

$0.92 $0.67
12 52483-52020 52483-52020 / Center Bracket

Outer Bracket, RIGHT

SEDAN

$48.44 $35.53
13 52483-52020 52483-52020 / Center Bracket

Outer Bracket, LEFT

SEDAN

$48.44 $35.53
14 52483-52020 52483-52020 / Center Bracket

SEDAN

$48.44 $35.53
15 52015-52070 52015-52070 / Mount Arm

Mount Arm, RIGHT

SEDAN

$67.64 $49.61
16 52016-52080 52016-52080 / Mount Arm

Mount Arm, LEFT

SEDAN

$67.64 $49.61
No. Part # Part # / Description List Price Price
N/A 08158-52235 08158-52235 / Rear Spoiler

SEDAN, W/S MODEL KIT

$338.52 $248.29
