BODY/GRILLE & COMPONENTS for 2009 Toyota Tundra

Select GRILLE & COMPONENTS Part

2009 Toyota Tundra

Change vehicle

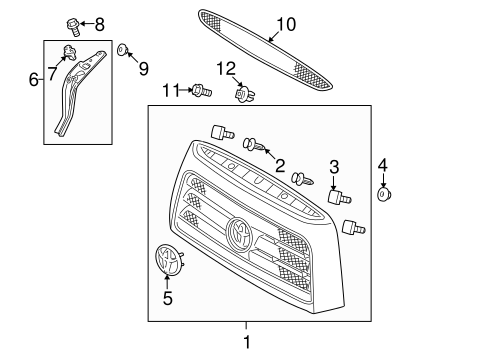

No. Part # Part # / Description List Price Price
1 53100-0C151 53100-0C151 / Grille Assembly

2007-09, W/O LIMITED, BLACK

$321.57 $235.86
1 53100-0C170-D0 53100-0C170-D0 / Grille Assembly

2007-09, W/O LIMITED, W/PAINTED, RED

$321.57 $235.86
1 53100-0C160 53100-0C160 / Grille Assembly

2007-09, W/O LIMITED, CHROME

$338.47 $248.26
1 53100-0C170-A0 53100-0C170-A0 / Grille Assembly

2007-09, W/O LIMITED, W/PAINTED, WHITE

$321.57 $235.86
1 53100-0C170-B1 53100-0C170-B1 / Grille Assembly

2007-09, W/O LIMITED, W/PAINTED, GRAY

$321.57 $235.86
1 53100-0C170-C0 53100-0C170-C0 / Grille Assembly

2007-09, W/O LIMITED, W/PAINTED, BLACK

$321.57 $235.86
1 53100-0C170-J1 53100-0C170-J1 / Grille Assembly

2007-09, W/O LIMITED, W/PAINTED, BLUE

$321.57 $235.86
2 75819-33010 75819-33010 / Side Molding Retainer Clip

Grille Assembly Clip

2007-09

$2.13 $1.56
3 90109-A0011 90109-A0011 / License Molding Screw

Grille Assembly Bolt

2007-09

$0.86 $0.63
4 90109-A0011 90109-A0011 / License Molding Screw

Grille Assembly Nut

2007-09

$0.86 $0.63
5 75311-0C030 75311-0C030 / Emblem

2007-09

$48.44 $35.53
6 53118-0C020 53118-0C020 / Mount Bracket

Mount Bracket, LEFT

2007-09

$53.41 $39.17
6 53117-0C020 53117-0C020 / Mount Bracket

Mount Bracket, RIGHT

2007-09

$53.41 $39.17
7 53145-0C020 53145-0C020 / Mount Bracket Clip

Mount Bracket Clip, LEFT

2007-09

$2.50 $1.83
7 53145-0C020 53145-0C020 / Mount Bracket Clip

Mount Bracket Clip, RIGHT

2007-09

$2.50 $1.83
8 90119-A0156 90119-A0156 / Mount Bracket Bolt

Mount Bracket Bolt, LEFT

2007-09

$0.86 $0.63
8 90119-A0156 90119-A0156 / Mount Bracket Bolt

Mount Bracket Bolt, RIGHT

2007-09

$0.86 $0.63
9 90080-17236 90080-17236 / Mount Bracket Nut

Mount Bracket Nut, LEFT

2007-09

$2.50 $1.83
9 90080-17236 90080-17236 / Mount Bracket Nut

Mount Bracket Nut, RIGHT

2007-09

$2.50 $1.83
10 53121-0C050 53121-0C050 / Molding

2007-09

$93.04 $68.23
11 90159-A0034 90159-A0034 / Side Support Retainer Screw

Molding Screw

2007-09

$0.86 $0.63
12 90189-05142 90189-05142 / Headlamp Assembly Grommet

Molding Grommet

2007-09

$1.15 $0.84
