FRONT SUSPENSION/SUSPENSION COMPONENTS for 2009 Toyota Camry

Select SUSPENSION COMPONENTS Part

2009 Toyota Camry

Change vehicle

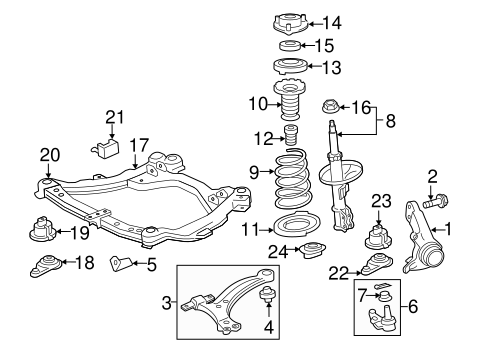

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2009 Toyota Camry #1
No. Part # Part # / Description List Price Price
1 43211-AA010 43211-AA010 / Knuckle

Knuckle, RIGHT

$278.56 $204.31
1 43212-AA010 43212-AA010 / Knuckle

Knuckle, LEFT

$278.56 $204.31
2 90105-17014 90105-17014 / Knuckle Bolt

Knuckle Bolt, LEFT

15MM O.D.

$5.95 $4.37
2 90080-10335 90080-10335 / Strut Mount Bolt

Knuckle Bolt, LEFT

17MM O.D.

$12.38 $9.09
2 90105-17014 90105-17014 / Knuckle Bolt

Knuckle Bolt, RIGHT

15MM O.D.

$5.95 $4.37
2 90105-17015 90105-17015 / Knuckle Bolt

Knuckle Bolt, LEFT

14MM O.D.

$5.03 $3.68
2 90080-10335 90080-10335 / Strut Mount Bolt

Knuckle Bolt, RIGHT

17MM O.D.

$12.38 $9.09
2 90105-17015 90105-17015 / Knuckle Bolt

Knuckle Bolt, RIGHT

14MM O.D.

$5.03 $3.68
2 90105-17013 90105-17013 / Knuckle Bolt

Knuckle Bolt, LEFT

15.9MM O.D.

$5.95 $4.37
2 90105-17013 90105-17013 / Knuckle Bolt

Knuckle Bolt, RIGHT

15.9MM O.D.

$5.95 $4.37
3 48069-06150 48069-06150 / Control Arm

Lower Control Arm, LEFT

$192.66 $141.30
3 48068-06150 48068-06150 / Control Arm

Lower Control Arm, RIGHT

$192.66 $141.30
5 48657-06010 48657-06010 / Stopper

Lower Control Arm Stopper, LEFT

$10.23 $7.50
5 48657-06010 48657-06010 / Stopper

Lower Control Arm Stopper, RIGHT

$10.23 $7.50
6 43330-39845 43330-39845 / Ball Joint

Ball Joint, RIGHT

JAPAN BUILT

$82.30 $60.37
6 43340-39605 43340-39605 / Ball Joint

Ball Joint, LEFT

JAPAN BUILT

$82.30 $60.37
6 43330-09810 43330-09810 / Ball Joint

Ball Joint, RIGHT

US BUILT

$65.62 $48.13
6 43340-09170 43340-09170 / Ball Joint

Ball Joint, LEFT

US BUILT

$65.62 $48.13
7 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Ball Joint Castle Nut, LEFT

$3.25 $2.38
7 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Ball Joint Castle Nut, RIGHT

$3.25 $2.38
8 48520-80104 48520-80104 / Strut

Strut, LEFT

JAPAN BUILT

$144.18 $105.75
8 48510-80327 48510-80327 / Strut

Strut, RIGHT

JAPAN BUILT

$144.18 $105.75
8 48510-09R40 48510-09R40 / Strut

Strut, RIGHT

US BUILT

$144.18 $105.75
8 48520-09K00 48520-09K00 / Strut

Strut, LEFT

US BUILT

$144.18 $105.75
9 48131-33B30 48131-33B30 / Coil Spring

Spring, RIGHT

JAPAN BUILT

$92.87 $68.11
9 48131-33B30 48131-33B30 / Coil Spring

Spring, LEFT

JAPAN BUILT

$92.87 $68.11
9 48131-06C11 48131-06C11 / Coil Spring

Spring, LEFT

US BUILT

$92.87 $68.11
9 48131-06C11 48131-06C11 / Coil Spring

Spring, RIGHT

US BUILT

$92.87 $68.11
10 48157-33072 48157-33072 / Upper Insulator

Upper Insulator, LEFT

JAPAN BUILT

$25.54 $18.74
10 48157-33072 48157-33072 / Upper Insulator

Upper Insulator, RIGHT

JAPAN BUILT

$25.54 $18.74
10 48157-06082 48157-06082 / Upper Insulator

Upper Insulator, LEFT

US BUILT

$27.70 $20.31
10 48157-06082 48157-06082 / Upper Insulator

Upper Insulator, RIGHT

US BUILT

$27.70 $20.31
11 48158-33031 48158-33031 / Lower Insulator

Lower Insulator, LEFT

$24.16 $17.73
11 48158-33031 48158-33031 / Lower Insulator

Lower Insulator, RIGHT

$24.16 $17.73
12 48331-33032 48331-33032 / Bumper

Bumper, RIGHT

JAPAN BUILT

$15.11 $11.09
12 48331-33032 48331-33032 / Bumper

Bumper, LEFT

JAPAN BUILT

$15.11 $11.09
12 48331-06040 48331-06040 / Bumper

Bumper, RIGHT

US BUILT

$17.58 $12.90
12 48331-06040 48331-06040 / Bumper

Bumper, LEFT

US BUILT

$17.58 $12.90
13 48471-41010 48471-41010 / Upper Seat

Upper Seat, LEFT

JAPAN BUILT

$43.16 $31.66
13 48471-41010 48471-41010 / Upper Seat

Upper Seat, RIGHT

JAPAN BUILT

$43.16 $31.66
13 48471-AA010 48471-AA010 / Upper Seat

Upper Seat, RIGHT

US BUILT

$43.16 $31.66
13 48471-AA010 48471-AA010 / Upper Seat

Upper Seat, LEFT

US BUILT

$43.16 $31.66
14 48609-06190 48609-06190 / Strut Mount

Strut Mount, RIGHT

$92.40 $67.77
14 48609-06190 48609-06190 / Strut Mount

Strut Mount, LEFT

$92.40 $67.77
15 90903-63014 90903-63014 / Bearing

Bearing, RIGHT

$40.17 $29.46
15 90903-63014 90903-63014 / Bearing

Bearing, LEFT

$40.17 $29.46
16 90080-17217 90080-17217 / Top Nut

Top Nut, LEFT

$3.25 $2.38
16 90080-17217 90080-17217 / Top Nut

Top Nut, RIGHT

$3.25 $2.38
17 51100-33102 51100-33102 / Engine Cradle

JAPAN BUILT

$1,612.49 $1,182.69
17 51100-06191 51100-06191 / Engine Cradle

US BUILT

$1,612.49 $1,182.69
18 51035-07010 51035-07010 / Front Brace

Front Brace, RIGHT

$79.21 $58.10
18 51036-07010 51036-07010 / Front Brace

Front Brace, LEFT

$79.21 $58.10
19 52211-06080 52211-06080 / Front Brace Insulator

Front Brace Insulator, LEFT

$92.66 $67.97
19 52211-06080 52211-06080 / Front Brace Insulator

Front Brace Insulator, RIGHT

$92.66 $67.97
20 52213-06080 52213-06080 / Stopper

Front Brace Stopper, RIGHT

$37.50 $27.50
20 52213-06080 52213-06080 / Stopper

Front Brace Stopper, LEFT

$37.50 $27.50
21 51227-08010 51227-08010 / Dynamic Damper

Damper

$108.58 $79.64
22 51023-07010 51023-07010 / Rear Brace

Rear Brace, RIGHT

$69.33 $50.85
22 51024-07010 51024-07010 / Rear Brace

Rear Brace, LEFT

$69.33 $50.85
23 52217-07010 52217-07010 / Engine Cradle Cushion

Rear Brace Insulator, LEFT

$98.32 $72.11
23 52215-07030 52215-07030 / Engine Cradle Cushion

Rear Brace Insulator, RIGHT

$110.36 $80.95
24 52216-07020 52216-07020 / Engine Cradle Stopper

Rear Brace Stopper, LEFT

$37.50 $27.50
24 52216-07020 52216-07020 / Engine Cradle Stopper

Rear Brace Stopper, RIGHT

$37.50 $27.50

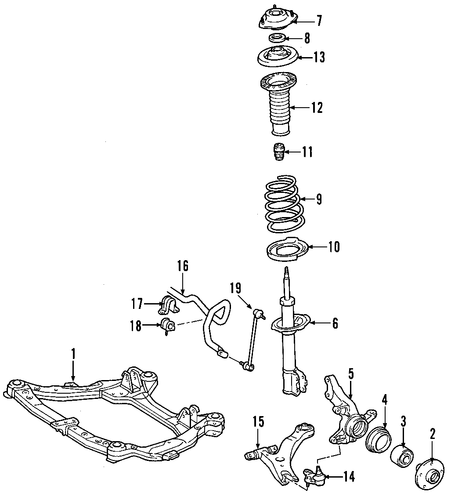

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2009 Toyota Camry #2
No. Part # Part # / Description List Price Price
1 51100-06191 51100-06191 / Engine Cradle

Cross-member

CAMRY HYBRID; USA BUILT

$1,612.49 $1,182.69
2 43502-AA011 43502-AA011 / Hub Assembly

Front Hub

CAMRY HYBRID

$156.43 $114.74
3 90080-36193 90080-36193 / Bearing

Wheel Bearings

CAMRY HYBRID

$104.73 $76.81
4 43246-28020 43246-28020 / Wheel Bearing Dust Shield

Hub Seals

CAMRY HYBRID

$17.21 $12.63
5 43211-AA010 43211-AA010 / Knuckle

CAMRY HYBRID; RIGHT

$278.56 $204.31
5 43212-AA010 43212-AA010 / Knuckle

CAMRY HYBRID; LEFT

$278.56 $204.31
6 48520-09K00 48520-09K00 / Strut

CAMRY HYBRID; LEFT; USA BUILT

$144.18 $105.75
6 48510-80327 48510-80327 / Strut

CAMRY HYBRID; RIGHT; JAPAN BUILT

$144.18 $105.75
6 48510-09R40 48510-09R40 / Strut

CAMRY HYBRID; RIGHT; USA BUILT

$144.18 $105.75
6 48520-80104 48520-80104 / Strut

CAMRY HYBRID; LEFT; JAPAN BUILT

$144.18 $105.75
7 48609-06190 48609-06190 / Strut Mount

CAMRY HYBRID

$92.40 $67.77
8 90903-63014 90903-63014 / Bearing

Strut Bearing

CAMRY HYBRID

$40.17 $29.46
9 48131-33B30 48131-33B30 / Coil Spring

CAMRY HYBRID; JAPAN BUILT

$92.87 $68.11
9 48131-06C11 48131-06C11 / Coil Spring

CAMRY HYBRID; USA BUILT

$92.87 $68.11
10 48158-33031 48158-33031 / Lower Insulator

Spring Seat

CAMRY HYBRID

$24.16 $17.73
11 48331-06040 48331-06040 / Bumper

CAMRY HYBRID; USA BUILT

$17.58 $12.90
11 48331-33032 48331-33032 / Bumper

CAMRY HYBRID; JAPAN BUILT

$15.11 $11.09
12 48157-33072 48157-33072 / Upper Insulator

Cover

CAMRY HYBRID; JAPAN BUILT

$25.54 $18.74
12 48157-06082 48157-06082 / Upper Insulator

Cover

CAMRY HYBRID; USA BUILT

$27.70 $20.31
13 48471-AA010 48471-AA010 / Upper Seat

Spring Insulator

CAMRY HYBRID; USA BUILT

$43.16 $31.66
13 48471-41010 48471-41010 / Upper Seat

Spring Insulator

CAMRY HYBRID; JAPAN BUILT

$43.16 $31.66
14 43340-39605 43340-39605 / Ball Joint

Lower Ball Joint

CAMRY HYBRID; LEFT; JAPAN BUILT

$82.30 $60.37
14 43340-09170 43340-09170 / Ball Joint

Lower Ball Joint

CAMRY HYBRID; LEFT; USA BUILT

$65.62 $48.13
14 43330-09810 43330-09810 / Ball Joint

Lower Ball Joint

CAMRY HYBRID; RIGHT; USA BUILT

$65.62 $48.13
14 43330-39845 43330-39845 / Ball Joint

Lower Ball Joint

CAMRY HYBRID; RIGHT; JAPAN BUILT

$82.30 $60.37
15 48068-06150 48068-06150 / Control Arm

Lower Control Arm

CAMRY HYBRID; RIGHT

$192.66 $141.30
15 48069-06150 48069-06150 / Control Arm

Lower Control Arm

CAMRY HYBRID; LEFT

$192.66 $141.30
16 48811-06050 48811-06050 / Stabilizer Bar

CAMRY HYBRID

$112.72 $82.67
17 48815-06090 48815-06090 / Stabilizer Bar Bushing

Bushings

CAMRY HYBRID

$11.78 $8.64
18 48824-06020 48824-06020 / Bracket

CAMRY HYBRID

$21.41 $15.70
19 48820-06050 48820-06050 / Stabilizer Link

Link

CAMRY HYBRID

$81.71 $59.94
