COOLING SYSTEM/RADIATOR & COMPONENTS for 2009 Toyota Camry

Select RADIATOR & COMPONENTS Part

2009 Toyota Camry

Change vehicle

COOLING SYSTEM/RADIATOR & COMPONENTS for 2009 Toyota Camry #1
No. Part # Part # / Description List Price Price
layer_13 16470-0P020 16470-0P020 / Reservoir Assembly

Reservoir

CAMRY HYBRID

$70.47 $51.69
layer_15 16405-28070 16405-28070 / Reservoir Cap

CAMRY HYBRID; JAPAN BUILT

$17.20 $12.61
layer_8 16471-AA010 16471-AA010 / Reservoir Cap

CAMRY HYBRID; USA BUILT

$6.17 $4.53
layer_15 87200-33010 87200-33010 / Auxiliary Pump

CAMRY HYBRID

$456.27 $334.66
1 16400-0H240 16400-0H240 / Radiator Assembly

Radiator

CAMRY HYBRID

$358.79 $263.17
2 16572-0H090 16572-0H090 / Hose

Upper Hose

CAMRY HYBRID

$23.10 $16.95
3 16571-0H100 16571-0H100 / Hose

Lower Hose

CAMRY HYBRID; USA BUILT

$21.57 $15.81
3 16571-28270 16571-28270 / Hose

Lower Hose

CAMRY HYBRID; JAPAN BUILT

$19.58 $14.36
4 16401-31480 16401-31480 / Radiator Cap

CAMRY HYBRID

$16.61 $12.19
5 16321-0H011 16321-0H011 / Thermostat Hsng

Water Inlet

CAMRY HYBRID

$27.99 $20.52
6 16325-0T030 16325-0T030 / Thermostat Gasket

CAMRY HYBRID

$6.09 $4.47
7 90916-03136 90916-03136 / Thermostat

CAMRY HYBRID

$23.99 $17.59
9 16361-28270 16361-28270 / Fan Blade

CAMRY HYBRID; RIGHT

$90.43 $66.33
9 16361-28280 16361-28280 / Fan Blade

CAMRY HYBRID; LEFT

$66.58 $48.84
10 16711-28310 16711-28310 / Fan Shroud

CAMRY HYBRID

$106.86 $78.37
11 16363-28270 16363-28270 / Fan Motor

CAMRY HYBRID; USA BUILT

$187.54 $137.56
11 16711-28310 16711-28310 / Fan Shroud

Fan Motor

CAMRY HYBRID; JAPAN BUILT

$106.86 $78.37

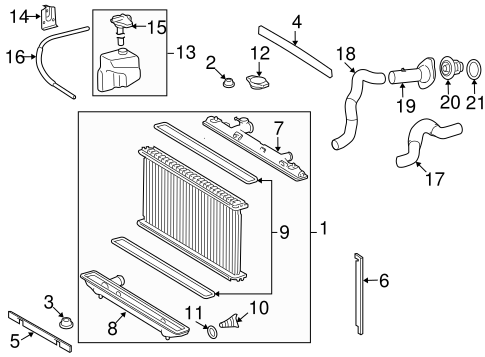

No. Part # Part # / Description List Price Price
1 16400-0H240 16400-0H240 / Radiator Assembly

$358.79 $263.17
2 16523-20020 16523-20020 / Upper Insulator

Radiator Assembly Upper Insulator

JAPAN BUILT

$9.48 $6.95
2 16523-AD010 16523-AD010 / Radiator Assembly Upper Insulator

US BUILT

$5.55 $4.06
3 16535-0H030 16535-0H030 / Radiator Assembly Lower Insulator

$9.80 $7.19
4 16561-28031 16561-28031 / Radiator Assembly Seal

TO RADIATOR SUPPORT, UPPER

$17.87 $13.10
5 16562-28010 16562-28010 / Radiator Assembly Seal

TO RADIATOR SUPPORT, LOWER

$18.79 $13.79
6 16563-28010 16563-28010 / Radiator Assembly Seal

Radiator Assembly Seal, LEFT

TO RADIATOR SUPPORT, SIDE

$4.45 $3.27
6 16563-28010 16563-28010 / Radiator Assembly Seal

Radiator Assembly Seal, RIGHT

TO RADIATOR SUPPORT, SIDE

$4.45 $3.27
7 16441-28550 16441-28550 / Tank

UPPER

$190.29 $139.57
8 16461-28550 16461-28550 / Tank

LOWER

$170.12 $124.78
9 16442-46090 16442-46090 / Tank Seal

$58.36 $42.80
10 16417-21280 16417-21280 / Drain Plug

$5.34 $3.92
11 16492-21050 16492-21050 / Drain Plug O-Ring

$3.05 $2.23
12 16401-31520 16401-31520 / Radiator Cap

$17.44 $12.80
13 16470-0P020 16470-0P020 / Reservoir Assembly

$70.47 $51.69
14 16611-28010 16611-28010 / Reservoir Assembly Bracket

JAPAN BUILT

$10.57 $7.76
14 16611-0A010 16611-0A010 / Reservoir Assembly Bracket

US BUILT

$14.42 $10.58
15 16405-28070 16405-28070 / Reservoir Cap

JAPAN BUILT

$17.20 $12.61
15 16471-AA010 16471-AA010 / Reservoir Cap

US BUILT

$6.17 $4.53
16 16566-0H010 16566-0H010 / Overflow Hose

US BUILT

$14.54 $10.66
17 16571-28270 16571-28270 / Hose

Upper Hose

JAPAN BUILT

$19.58 $14.36
17 16571-0H100 16571-0H100 / Hose

Upper Hose

US BUILT

$21.57 $15.81
18 16572-0H090 16572-0H090 / Hose

Lower Hose

$23.10 $16.95
19 16321-0H011 16321-0H011 / Thermostat Hsng

$27.99 $20.52
20 90916-03136 90916-03136 / Thermostat

$23.99 $17.59
21 16325-0T030 16325-0T030 / Thermostat Gasket

Thermostat Seal

$6.09 $4.47
