BODY/STRUCTURAL COMPONENTS & RAILS for 2009 Toyota Camry

Select STRUCTURAL COMPONENTS & RAILS Part

2009 Toyota Camry

Change vehicle

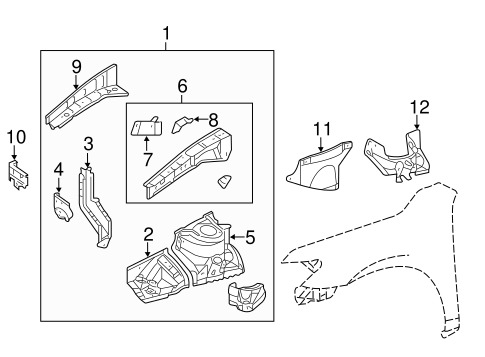

BODY/STRUCTURAL COMPONENTS & RAILS for 2009 Toyota Camry #1
No. Part # Part # / Description List Price Price
1 57027-33901 57027-33901 / Rail Assembly

Rail Assembly, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

- -
1 57028-33901 57028-33901 / Rail Assembly

Rail Assembly, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

- -
2 57115-06030 57115-06030 / Outer Rail

Outer Rail, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$167.51 $125.63
3 57249-06010 57249-06010 / Side Plate Bracket

Outer Rail Bracket, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT, FLEX HOSE

$8.19 $6.14
4 57108-33032 57108-33032 / Rail Extension

Rail Extension, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$62.87 $47.15
4 57107-33032 57107-33032 / Rail Extension

Rail Extension, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$62.87 $47.15
5 57112-33030 57112-33030 / Inner Rail

Inner Rail, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

- -
5 57111-33020 57111-33020 / Inner Rail

Inner Rail, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

- -
6 57117-06030 57117-06030 / Rail End

Rail End, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$63.21 $47.41
8 51964-33010 51964-33010 / Tow Hook

Tow Hook, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$17.04 $12.78
8 51963-33020 51963-33020 / Tow Hook

Tow Hook, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$17.04 $12.78
9 57192-06010 57192-06010 / Rear Rail

Rear Rail, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$295.71 $221.78
9 57191-06010 57191-06010 / Rear Rail

Rear Rail, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$295.71 $221.78
10 57153-33030 57153-33030 / Inner Reinforced

Inner Reinforced, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT, FRONT

$118.92 $89.19
10 57154-33030 57154-33030 / Inner Reinforced

Inner Reinforced, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT, FRONT

$111.80 $83.85
11 57182-33030 57182-33030 / Inner Reinforced

Inner Reinforced, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT, REAR

$156.42 $117.32
11 57181-33030 57181-33030 / Inner Reinforced

Inner Reinforced, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT, REAR

$156.42 $117.32
12 57031-06010 57031-06010 / Lower Reinforced

Lower Reinforced, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$104.99 $78.74
12 57032-06010 57032-06010 / Lower Reinforced

Lower Reinforced, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$104.99 $78.74
13 57198-33040 57198-33040 / Torque Box

Torque Box, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$104.99 $78.74
13 57197-33040 57197-33040 / Torque Box

Torque Box, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$104.99 $78.74
14 57157-33020 57157-33020 / Torque Box Reinforcement

Torque Box Reinforcement, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$52.49 $39.37
14 57158-33020 57158-33020 / Torque Box Reinforcement

Torque Box Reinforcement, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$52.49 $39.37
15 57194-33030 57194-33030 / Reinforcement Plate

Torque Box Plate, LEFT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$42.15 $31.61
15 57193-33030 57193-33030 / Reinforcement Plate

Torque Box Plate, RIGHT

RAIL ASSEMBLY & COMPONENTS, JAPAN BUILT

$42.15 $31.61

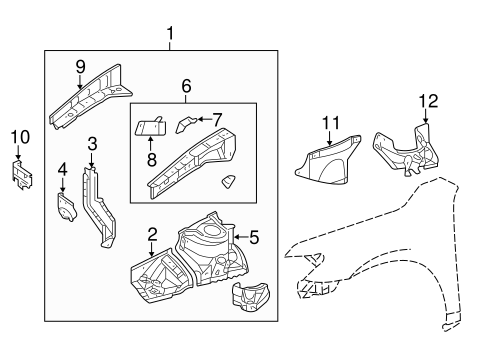

No. Part # Part # / Description List Price Price
1 53701-33150 53701-33150 / Apron Assembly

Apron Assembly, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

- -
1 53702-33110 53702-33110 / Apron Assembly

Apron Assembly, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

- -
3 53713-33020 53713-33020 / Front Extension

Front Extension, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$48.93 $36.70
3 53714-07010 53714-07010 / Front Extension

Front Extension, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$52.49 $39.37
4 53717-06030 53717-06030 / Plate

Plate, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$21.92 $16.44
4 53718-06030 53718-06030 / Plate

Plate, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$21.15 $15.86
6 53731-33901 53731-33901 / Upper Rail

Upper Rail, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$95.36 $71.52
6 53732-33901 53732-33901 / Upper Rail

Upper Rail, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$91.80 $68.85
7 53821-33030 53821-33030 / Upper Rail Bracket

Upper Rail Bracket, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT, #1

$7.38 $5.54
7 53822-33020 53822-33020 / Upper Rail Bracket

Upper Rail Bracket, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT, #1

$7.38 $5.54
9 53734-07020 53734-07020 / Upper Reinforced

Upper Reinforced, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$69.65 $52.24
9 53733-07020 53733-07020 / Upper Reinforced

Upper Reinforced, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$69.65 $52.24
10 53835-06020 53835-06020 / Front Bracket

Front Bracket, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$16.66 $12.50
10 53836-06020 53836-06020 / Front Bracket

Front Bracket, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$16.66 $12.50
11 53736-07021 53736-07021 / Splash Guard

Seal, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$63.21 $47.41
11 53737-06040 53737-06040 / Splash Guard

Seal, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$41.78 $31.34
12 53784-33030 53784-33030 / Insulator

Insulator, LEFT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$71.43 $53.57
12 53783-33020 53783-33020 / Insulator

Insulator, RIGHT

APRON & UPPER RAIL COMPONENTS, JAPAN BUILT

$67.15 $50.36
No. Part # Part # / Description List Price Price
1 53701-06090 53701-06090 / Apron Assembly

Apron Assembly, RIGHT

APRON & UPPER RAIL COMPONENTS, US BUILT

- -
1 53702-06100 53702-06100 / Apron Assembly

Apron Assembly, LEFT

APRON & UPPER RAIL COMPONENTS, US BUILT

- -
2 53711-06110 53711-06110 / Front Panel

Front Panel, RIGHT

APRON & UPPER RAIL COMPONENTS, US BUILT

$82.17 $61.63
2 53712-07020 53712-07020 / Front Panel

Front Panel, LEFT

APRON & UPPER RAIL COMPONENTS, US BUILT

$90.39 $67.79
3 53713-07010 53713-07010 / Front Extension

Front Extension, RIGHT

APRON & UPPER RAIL COMPONENTS, US BUILT

$48.93 $36.70
6 53731-07904 53731-07904 / Upper Rail

Upper Rail, RIGHT

APRON & UPPER RAIL COMPONENTS, US BUILT

$88.58 $66.44
6 53732-07904 53732-07904 / Upper Rail

Upper Rail, LEFT

APRON & UPPER RAIL COMPONENTS, US BUILT

$86.43 $64.82
7 53745-07010 53745-07010 / Upper Rail Bracket

Upper Rail Bracket, RIGHT

APRON & UPPER RAIL COMPONENTS, US BUILT, #1

$12.76 $9.57
7 53746-07010 53746-07010 / Upper Rail Bracket

Upper Rail Bracket, LEFT

APRON & UPPER RAIL COMPONENTS, US BUILT, #1

$12.76 $9.57
12 53784-06060 53784-06060 / Insulator

Insulator, LEFT

APRON & UPPER RAIL COMPONENTS, US BUILT

$56.09 $42.07
12 53783-06050 53783-06050 / Insulator

Insulator, RIGHT

APRON & UPPER RAIL COMPONENTS, US BUILT

$56.09 $42.07

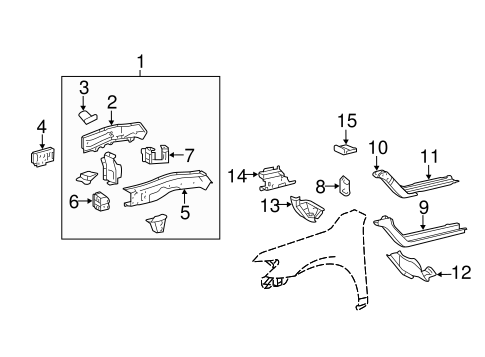

No. Part # Part # / Description List Price Price
1 57102-07021 57102-07021 / Side Member Assembly

Rail Assembly, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

- -
1 57101-06050 57101-06050 / Lower Rail Assembly

Rail Assembly, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

- -
2 57116-06020 57116-06020 / Outer Rail

Outer Rail, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$167.51 $125.63
3 57249-06010 57249-06010 / Side Plate Bracket

Outer Rail Bracket, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT, FLEX HOSE

$8.19 $6.14
5 57112-06030 57112-06030 / Inner Rail

Inner Rail, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

- -
5 57111-06020 57111-06020 / Inner Rail

Inner Rail, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

- -
6 57118-06030 57118-06030 / Rail End

Rail End, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$63.21 $47.41
7 57106-06010 57106-06010 / Mount Bracket

Mount Bracket, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT, FRONT SUSPENSION

$104.99 $78.74
7 57105-06010 57105-06010 / Mount Bracket

Mount Bracket, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT, FRONT SUSPENSION

$104.99 $78.74
8 57155-06010 57155-06010 / Side Reinforced

Side Reinforced, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$30.86 $23.15
8 57156-06011 57156-06011 / Side Reinforced

Side Reinforced, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$32.73 $24.55
9 57151-06010 57151-06010 / Front Reinforced

Front Reinforced, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$18.19 $13.64
9 57152-06010 57152-06010 / Front Reinforced

Front Reinforced, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$17.99 $13.49
10 57167-06010 57167-06010 / Gusset

Gusset, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$6.90 $5.18
10 57168-06010 57168-06010 / Gusset

Gusset, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$7.04 $5.28
12 57043-06010 57043-06010 / Inner Reinforced

Inner Reinforced, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$198.57 $148.93
12 57044-06010 57044-06010 / Inner Reinforced

Inner Reinforced, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$218.57 $163.93
14 57078-06110 57078-06110 / Torque Box

Torque Box, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$170.35 $127.76
14 57077-06040 57077-06040 / Torque Box

Torque Box, RIGHT

RAIL ASSEMBLY & COMPONENTS, US BUILT

$164.29 $123.22
15 53704-07012 53704-07012 / Support Panel

Support Panel, LEFT

RAIL ASSEMBLY & COMPONENTS, US BUILT, BATTERY

$51.43 $38.57
