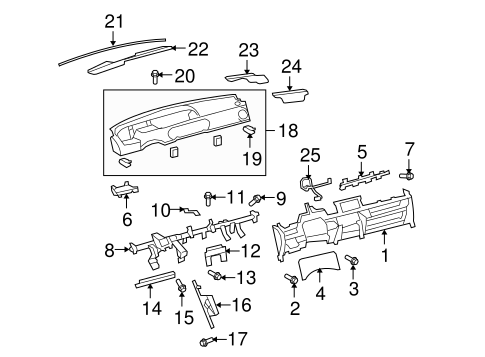

BODY/INSTRUMENT PANEL for 2009 Scion xB

Select INSTRUMENT PANEL Part

2009 Scion xB

Change vehicle

No. Part # Part # / Description List Price Price
1 55303-12450-B0 55303-12450-B0 / Carrier Housing

$325.36 $244.02
2 90080-11699 90080-11699 / Center Belt Assembly Upper Bolt

Carrier Housing Bolt

$1.35 $1.01
3 90159-70004 90159-70004 / Reinforcement Bolt

Carrier Housing Screw

#1

$0.89 $0.67
3 90159-60431 90159-60431 / Side Spoiler Screw

Carrier Housing Screw

#2

$1.21 $0.91
4 55468-12020 55468-12020 / Carrier Housing Seal

$9.17 $6.88
5 55452-12440-B0 55452-12440-B0 / Box

Box, RIGHT

$75.71 $56.78
6 55451-12660-B0 55451-12660-B0 / Box

Box, LEFT

$57.87 $43.40
7 93568-55014 93568-55014 / Center Pillar Trim Screw

Box Screw, LEFT

#2

$0.11 $0.08
7 90159-70004 90159-70004 / Reinforcement Bolt

Box Screw, RIGHT

#1

$0.89 $0.67
7 93568-55014 93568-55014 / Center Pillar Trim Screw

Box Screw, RIGHT

#2

$0.11 $0.08
8 55330-12781 55330-12781 / Reinforced Beam

$385.70 $289.28
9 90080-10099 90080-10099 / Reinforced Beam Bolt

$1.12 $0.84
10 55343-12070 55343-12070 / Upper Brace

Center Brace

$20.89 $15.67
11 90080-10099 90080-10099 / Reinforced Beam Bolt

Center Brace Bolt

$1.12 $0.84
12 55349-12140 55349-12140 / Center Bracket

$22.61 $16.96
13 90159-70004 90159-70004 / Reinforcement Bolt

Center Bracket Screw

$0.89 $0.67
14 55337-12050 55337-12050 / Reinforcement

$26.35 $19.76
15 91511-B0614 91511-B0614 / Center Pillar Trim Bolt

Reinforcement Bolt

$0.89 $0.67
16 55307-12360 55307-12360 / Lower Brace

Lower Brace, RIGHT

$62.49 $46.87
16 55306-12430 55306-12430 / Lower Brace

Lower Brace, LEFT

$62.49 $46.87
17 90080-10099 90080-10099 / Reinforced Beam Bolt

Lower Brace Bolt, LEFT

$1.12 $0.84
17 90080-10099 90080-10099 / Reinforced Beam Bolt

Lower Brace Bolt, RIGHT

$1.12 $0.84
18 55302-12220-B0 55302-12220-B0 / Instrument Panel

$478.57 $358.93
19 90467-12080 90467-12080 / Switch Bezel Clip

Instrument Panel Clip

$1.01 $0.76
20 93568-55014 93568-55014 / Center Pillar Trim Screw

Instrument Panel Screw, RIGHT

$0.11 $0.08
20 93568-55014 93568-55014 / Center Pillar Trim Screw

Instrument Panel Screw, LEFT

$0.11 $0.08
21 55355-12130 55355-12130 / Cushion

#1

$12.44 $9.33
22 55356-12170 55356-12170 / Cushion

#2

$9.54 $7.16
23 55357-12140 55357-12140 / Cushion

#3

$4.74 $3.56
24 55358-12140 55358-12140 / Cushion

#4

$5.09 $3.82
25 82140-52010 82140-52010 / Wire

$17.50 $13.13
