ELECTRICAL/HEADLAMP COMPONENTS for 2008 Toyota RAV4

Select HEADLAMP COMPONENTS Part

2008 Toyota RAV4

Change vehicle

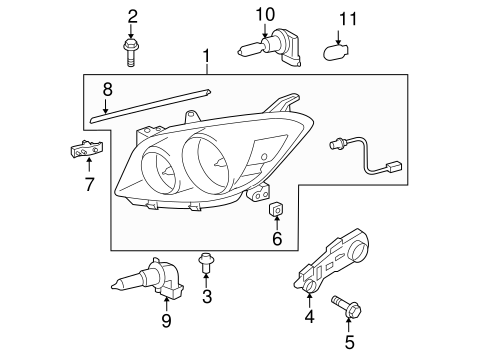

No. Part # Part # / Description List Price Price
1 81170-42331 81170-42331 / Composite Headlamp

Headlamp Assembly, LEFT

2006-08, BASE, LIMITED

$189.29 $138.84
1 81130-42331 81130-42331 / Composite Headlamp

Headlamp Assembly, RIGHT

2006-08, BASE, LIMITED

$189.29 $138.84
1 81170-42331 81170-42331 / Composite Headlamp

RAV4; LEFT; BASE, LIMITED MODELS

$189.29 $138.84
1 81130-42331 81130-42331 / Composite Headlamp

RAV4; RIGHT; BASE, LIMITED MODELS

$189.29 $138.84
2 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw, RIGHT

2006-08

$0.86 $0.63
2 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw, LEFT

2006-08

$0.86 $0.63
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

2006-08

$1.15 $0.84
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

2006-08

$1.15 $0.84
5 90105-06298 90105-06298 / Headlamp Assembly Lower Bolt

Side Bracket Bolt, RIGHT

2006-08

$0.86 $0.63
5 90105-06298 90105-06298 / Headlamp Assembly Lower Bolt

Side Bracket Bolt, LEFT

2006-08

$0.86 $0.63
6 90183-06030 90183-06030 / Grille Assembly Nut

Side Bracket Nut, RIGHT

2006-08

$0.95 $0.70
6 90183-06030 90183-06030 / Grille Assembly Nut

Side Bracket Nut, LEFT

2006-08

$0.95 $0.70
7 81195-42020 81195-42020 / Side Bracket Lower Retainer

Side Bracket Lower Retainer, RIGHT

2006-08

$9.63 $7.06
7 81196-42020 81196-42020 / Side Bracket Lower Retainer

Side Bracket Lower Retainer, LEFT

2006-08

$9.63 $7.06
8 53183-42030 53183-42030 / Seal

Seal, RIGHT

2006-08

$12.61 $9.25
8 53184-42030 53184-42030 / Seal

Seal, LEFT

2006-08

$12.61 $9.25
9 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

2006-08

$23.99 $17.59
9 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

2006-08

$23.99 $17.59
9 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

RAV4; 12V65W

$23.99 $17.59
10 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, LEFT

2006-08

$23.99 $17.59
10 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

2006-08

$23.99 $17.59
10 90981-13047 90981-13047 / Fog Lamp Bulb

Headlamp Bulb

RAV4; 12V51W

$23.99 $17.59
11 90981-13044 90981-13044 / Bulb

Signal Bulb, LEFT

2006-08

$5.23 $3.83
11 90981-13044 90981-13044 / Bulb

Signal Bulb, RIGHT

2006-08

$5.23 $3.83
11 90981-13044 90981-13044 / Bulb

Exterior Bulbs

RAV4; FRONT TURN SIGNAL

$5.23 $3.83
No. Part # Part # / Description List Price Price
layer_1 81130-42371 81130-42371 / Composite Headlamp

RAV4; RIGHT; SPORT MODEL

$186.08 $136.48
