REAR SUSPENSION/REAR SUSPENSION for 2008 Toyota Matrix

Select REAR SUSPENSION Part

2008 Toyota Matrix

Change vehicle

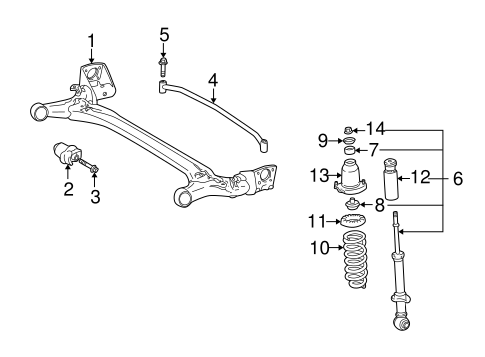

No. Part # Part # / Description List Price Price
1 42101-01010 42101-01010 / Axle Assembly

Axle Beam

2WD, BASE & XR

$1,599.01 $1,172.81
2 48725-02230 48725-02230 / Axle Beam Bushing

Axle Beam Bushing, LEFT

2WD

$86.66 $63.56
2 48725-02230 48725-02230 / Axle Beam Bushing

Axle Beam Bushing, RIGHT

2WD

$86.66 $63.56
3 90119-A0013 90119-A0013 / Axle Beam Mount Bolt

Axle Beam Mount Bolt, LEFT

2WD

$6.29 $4.61
3 90119-A0013 90119-A0013 / Axle Beam Mount Bolt

Axle Beam Mount Bolt, RIGHT

2WD

$6.29 $4.61
4 48812-AB011 48812-AB011 / Stabilizer Bar

2WD

$105.19 $77.15
5 90105-14155 90105-14155 / Stabilizer Bar Mount Bolt

Stabilizer Bar Mount Bolt, RIGHT

2WD

$6.55 $4.81
5 90105-14155 90105-14155 / Stabilizer Bar Mount Bolt

Stabilizer Bar Mount Bolt, LEFT

2WD

$6.55 $4.81
6 48530-A9540 48530-A9540 / Shock Absorber

Strut, RIGHT

2WD, ALL

$107.93 $79.17
6 48530-A9540 48530-A9540 / Shock Absorber

Strut, LEFT

2WD, ALL

$107.93 $79.17
7 48755-02050 48755-02050 / Upper Support

Strut Upper Support, LEFT

2WD

$9.91 $7.27
7 48755-02050 48755-02050 / Upper Support

Strut Upper Support, RIGHT

2WD

$9.91 $7.27
8 48750-02050 48750-02050 / Support

Strut Lower Support, LEFT

2WD

$18.62 $13.65
8 48750-02050 48750-02050 / Support

Strut Lower Support, RIGHT

2WD

$18.62 $13.65
9 90948-03021 90948-03021 / Upper Support Washer

Strut Washer, RIGHT

2WD

$9.86 $7.22
9 90948-03021 90948-03021 / Upper Support Washer

Strut Washer, LEFT

2WD

$9.86 $7.22
10 48231-AB010 48231-AB010 / Coil Spring

Spring, LEFT

2WD

$76.80 $56.33
10 48231-AB010 48231-AB010 / Coil Spring

Spring, RIGHT

2WD

$76.80 $56.33
11 48257-02040 48257-02040 / Insulator

Insulator, LEFT

2WD

$14.37 $10.54
11 48257-02040 48257-02040 / Insulator

Insulator, RIGHT

2WD

$14.37 $10.54
12 48341-AB010 48341-AB010 / Bumper

Bumper, LEFT

2WD

$22.30 $16.35
12 48341-AB010 48341-AB010 / Bumper

Bumper, RIGHT

2WD

$22.30 $16.35
13 48401-32020 48401-32020 / Upper Bracket

Bracket, RIGHT

2WD

$34.94 $25.62
13 48403-32010 48403-32010 / Upper Bracket

Bracket, LEFT

2WD

$34.94 $25.62
14 90178-12010 90178-12010 / Top Nut

Top Nut, LEFT

2WD

$1.67 $1.22
14 90178-12010 90178-12010 / Top Nut

Top Nut, RIGHT

2WD

$1.67 $1.22
REAR SUSPENSION/REAR SUSPENSION for 2008 Toyota Matrix #2
No. Part # Part # / Description List Price Price
1 48530-A9540 48530-A9540 / Shock Absorber

MATRIX; BASE

$107.93 $79.17
2 48341-AB010 48341-AB010 / Bumper

MATRIX

$22.30 $16.35
3 48401-32020 48401-32020 / Upper Bracket

MATRIX; RIGHT

$34.94 $25.62
3 48403-32010 48403-32010 / Upper Bracket

MATRIX; LEFT

$34.94 $25.62
4 48231-AB010 48231-AB010 / Coil Spring

MATRIX

$76.80 $56.33
5 48257-02040 48257-02040 / Insulator

Spring Insulator

MATRIX

$14.37 $10.54
6 42410-01020 42410-01020 / Hub & Bearing

MATRIX; W/O ABS

$410.30 $300.94
7 42101-01010 42101-01010 / Axle Assembly

MATRIX; W/O XRS; W/REAR BRAKE DRUM

$1,599.01 $1,172.81
7 42101-01020 42101-01020 / Axle Assembly

MATRIX; W/O XRS; W/REAR BRAKE DISC

$1,599.01 $1,172.81
