ELECTRICAL/POWERTRAIN CONTROL for 2008 Toyota Matrix

Select POWERTRAIN CONTROL Part

2008 Toyota Matrix

Change vehicle

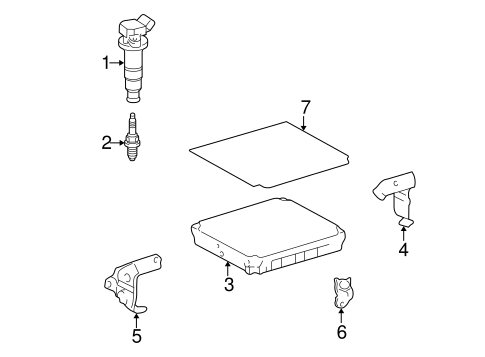

No. Part # Part # / Description List Price Price
1 90080-19015 90080-19015 / Ignition Coil

W/O XRS

$105.61 $77.46
2 90080-91184 90080-91184 / Spark Plug

W/O XRS, 2WD

$10.37 $7.59
3 89661-02R02 89661-02R02 / ECM

W/O XRS, 2WD, AUTO TRANS

$509.17 $373.45
3 89661-02R12 89661-02R12 / ECM

MATRIX; W/O XRS; MANUAL TRANS

$446.84 $327.74
4 89668-02080 89668-02080 / ECM Bracket

ECM Bracket, RIGHT

BASE & XR, 2WD

$13.36 $9.80
5 89667-02110 89667-02110 / ECM Side Bracket

ECM Bracket, LEFT

BASE & XR, 2WD

$10.69 $7.84
7 89279-02080 89279-02080 / ECM Cover

Cover

BASE & XR, 2WD

$5.78 $4.23
No. Part # Part # / Description List Price Price
1 17120-0D080 17120-0D080 / Intake Manifold

MATRIX; W/O XRS

$389.15 $285.43
2 17171-0D020 17171-0D020 / Manifold Gasket

Intake Manifold Gasket

1.8 LITER W/O XRS

$8.54 $6.27
2 17171-0D020 17171-0D020 / Manifold Gasket

MATRIX; W/O XRS

$8.54 $6.27
3 17135-22010 17135-22010 / Manifold Cover

1.8 LITER W/O XRS

$24.85 $18.23
4 13470-22021 13470-22021 / Crankshaft Pulley

1.8 LITER W/O XRS

$263.91 $193.57
5 11321-0D010 11321-0D010 / Timing Cover

1.8 LITER W/O XRS

$274.11 $201.04
6 90080-31049 90080-31049 / Seal

Timing Cover Oil Seal

1.8 LITER W/O XRS, 2WD

$8.94 $6.55
7 11201-0D030 11201-0D030 / Valve Cover

1.8 LITER W/O XRS, 2WD

$445.67 $326.87
8 11213-0D040 11213-0D040 / Valve Cover Gasket

1.8 LITER W/O XRS

$26.85 $19.69
9 12180-0H012 12180-0H012 / Filler Cap

1.8 LITER W/O XRS, 2WD

$11.84 $8.69
11 12101-0D010 12101-0D010 / Oil Pan

1.8 LITER W/O XRS

$155.76 $114.24
12 90915-YZZF2 90915-YZZF2 / Oil Filter

MATRIX; W/O XRS

$5.41 $3.95
13 15301-22050 15301-22050 / Dipstick

1.8 LITER W/O XRS

$16.12 $11.82
14 11452-22031 11452-22031 / Guide Tube

1.8 LITER W/O XRS

$19.14 $14.03
15 15100-0D021 15100-0D021 / Oil Pump

1.8 LITER W/O XRS

$181.03 $132.77
16 15197-0D010 15197-0D010 / Oil Pump Gasket

1.8 LITER W/O XRS

$6.23 $4.58
17 90080-19013 90080-19013 / Crankshaft Position Sensor

Crankshaft Sensor

1.8 LITER W/O XRS

$155.61 $114.13
17 90080-19013 90080-19013 / Crankshaft Position Sensor

MATRIX; W/O XRS

$155.61 $114.13

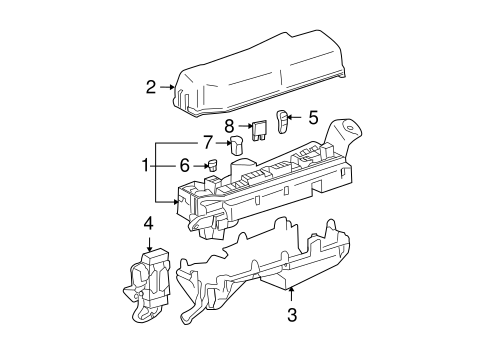

No. Part # Part # / Description List Price Price
2 82662-02140 82662-02140 / Upper Cover

ENGINE COMPARTMENT, BASE & XR, 2WD, W/VSC

$36.78 $26.97
2 82662-02130 82662-02130 / Upper Cover

ENGINE COMPARTMENT, BASE & XR, 2WD, W/O VSC

$36.78 $26.97
3 82663-02020 82663-02020 / Lower Cover

ENGINE COMPARTMENT

$31.09 $22.80
4 85928-12010 85928-12010 / Fan Resistor

ENGINE COMPARTMENT

$121.31 $88.97
5 82616-20010 82616-20010 / Fuse Puller

ENGINE COMPARTMENT

$3.53 $2.59
6 90080-82031 90080-82031 / Mini Fuse

Fuse

ENGINE COMPARTMENT, 5A

$1.49 $1.10
6 90080-82022 90080-82022 / Mini Fuse

Fuse

ENGINE COMPARTMENT, 15A

$1.86 $1.37
6 90080-82033 90080-82033 / Mini Fuse

Fuse

ENGINE COMPARTMENT, 25A

$2.38 $1.74
7 90982-08283 90982-08283 / Fusible Link

ENGINE COMPARTMENT, 30A

$12.99 $9.53
7 90982-08284 90982-08284 / Fusible Link

ENGINE COMPARTMENT, 40A

$17.45 $12.80
8 88263-08010 88263-08010 / Relay Box Relay

Relay

ENGINE COMPARTMENT, SKID CONTROL, #1

$96.57 $70.83
8 90080-87010 90080-87010 / Relay Box Relay

Relay

MATRIX; SIEMENS

$29.19 $21.41
8 90084-98032 90084-98032 / Fuel Pump Relay

Relay

ENGINE COMPARTMENT, COOLING FAN #2, DENSO

$56.23 $41.24
8 90987-02028 90987-02028 / Relay

ENGINE COMPARTMENT, AC CLUTCH

$80.65 $59.16
8 88263-21010 88263-21010 / Relay Box Relay

Relay

ENGINE COMPARTMENT, SKID CONTROL, #2

$64.36 $47.20
8 90080-87010 90080-87010 / Relay Box Relay

Horn Relay

MATRIX

$29.19 $21.41
8 90080-87010 90080-87010 / Relay Box Relay

ECM Relay

MATRIX; SIEMENS

$29.19 $21.41
No. Part # Part # / Description List Price Price
layer_1 89467-12010 89467-12010 / Oxygen Sensor

MATRIX; W/O XRS; W/O AWD; FRONT

$197.30 $144.72
layer_5 90080-19014 90080-19014 / Camshaft Position Sensor

MATRIX

$66.91 $57.71
layer_3 89452-02020 89452-02020 / Sensor

Throttle Position Sensor

MATRIX; W/O XRS

$81.14 $59.51
layer_7 89615-06010 89615-06010 / Knock Sensor

MATRIX

$230.26 $168.88
No. Part # Part # / Description List Price Price
layer_25 89422-35010 89422-35010 / Coolant Temp Sensor

MATRIX

$72.15 $52.91
N/A 83181-12020 83181-12020 / Vehicle Speed Sensor

MATRIX; W/O XRS; W/O AWD

$278.70 $204.41
N/A 89661-02R52 89661-02R52 / ECM

MATRIX; W/O XRS; AUTO TRANS; W/O AWD

$509.17 $373.45
