ELECTRICAL/BULBS - CHASSIS for 2008 Toyota Avalon

Select BULBS - CHASSIS Part

2008 Toyota Avalon

Change vehicle

No. Part # Part # / Description List Price Price
1 81550-07050 81550-07050 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

ON QUARTER PANEL, TO 10/09

$157.51 $115.52
1 81560-07050 81560-07050 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

ON QUARTER PANEL, TO 10/09

$157.51 $115.52
2 81552-AC090 81552-AC090 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, RIGHT

ON QUARTER PANEL

$15.72 $11.53
2 81562-AC090 81562-AC090 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, LEFT

ON QUARTER PANEL

$15.72 $11.53
3 58385-AC040 58385-AC040 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, RIGHT

ON QUARTER PANEL

$21.41 $15.70
3 58386-AC040 58386-AC040 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, LEFT

ON QUARTER PANEL

$21.41 $15.70
4 81555-AC090 81555-AC090 / Socket & Wire

Socket & Wire, LEFT

ON QUARTER PANEL

$31.86 $23.38
4 81555-AC090 81555-AC090 / Socket & Wire

Socket & Wire, RIGHT

ON QUARTER PANEL

$31.86 $23.38
5 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, RIGHT

ON QUARTER PANEL

$5.23 $3.83
5 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, LEFT

ON QUARTER PANEL

$5.23 $3.83
5 90981-13044 90981-13044 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; STOP LAMP

$5.23 $3.83
6 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, LEFT

ON QUARTER PANEL

$6.67 $4.89
6 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, RIGHT

ON QUARTER PANEL

$6.67 $4.89
6 90981-15011 90981-15011 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; REAR TURN SIGNAL

$6.67 $4.89
7 00234-00194 00234-00194 / Bulb

Tail Lamp Bulb, RIGHT

ON QUARTER PANEL

$0.57 $0.41
7 00234-00194 00234-00194 / Bulb

Tail Lamp Bulb, LEFT

ON QUARTER PANEL

$0.57 $0.41
7 00234-00194 00234-00194 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; COMBINATION LAMP

$0.57 $0.41
No. Part # Part # / Description List Price Price
1 81110-07083 81110-07083 / Composite Assembly

Headlamp Assembly, RIGHT

W/HID, TO 6/09

$1,118.09 $820.07
1 81150-07083 81150-07083 / Composite Assembly

Headlamp Assembly, LEFT

W/HID, TO 6/09

$1,118.09 $820.07
1 81110-07083 81110-07083 / Composite Assembly

AVALON; RIGHT; W/HID

$1,118.09 $820.07
1 81150-07083 81150-07083 / Composite Assembly

AVALON; LEFT; W/HID

$1,118.09 $820.07
2 81130-AC060 81130-AC060 / Lens & Housing

Lens & Housing, RIGHT

W/HID

$460.39 $337.67
2 81170-AC060 81170-AC060 / Lens & Housing

Lens & Housing, LEFT

W/HID

$460.39 $337.67
3 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Lens & Housing Screw, LEFT

W/HID, UPPER

$0.95 $0.70
3 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Lens & Housing Screw, RIGHT

W/HID, UPPER

$0.95 $0.70
4 90080-10080 90080-10080 / Lens & Housing Screw

Lens & Housing Screw, LEFT

W/HID, LOWER

$1.06 $0.78
4 90080-10080 90080-10080 / Lens & Housing Screw

Lens & Housing Screw, RIGHT

W/HID, LOWER

$1.06 $0.78
5 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Lens & Housing Screw, LEFT

W/HID, INNER

$0.86 $0.63
5 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Lens & Housing Screw, RIGHT

W/HID, INNER

$0.86 $0.63
6 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, LEFT

W/HID

$1.15 $0.84
6 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, RIGHT

W/HID

$1.15 $0.84
7 90981-20002 90981-20002 / Hid Bulb

Hid Bulb, LEFT

W/HID

$175.00 $149.45
7 90981-20002 90981-20002 / Hid Bulb

Hid Bulb, RIGHT

W/HID

$175.00 $149.45
8 90981-13066 90981-13066 / Bulb

High Beam Bulb, LEFT

W/HID

$71.40 $52.37
9 81139-AE020 81139-AE020 / High Beam Bulb Protector

High Beam Bulb Protector, LEFT

W/HID

$10.57 $7.76
9 81139-AE020 81139-AE020 / High Beam Bulb Protector

High Beam Bulb Protector, RIGHT

W/HID

$10.57 $7.76
10 90981-AF002 90981-AF002 / Signal Lamp Bulb

Signal Lamp Bulb, LEFT

W/HID

$7.07 $5.19
10 90981-AF002 90981-AF002 / Signal Lamp Bulb

Signal Lamp Bulb, RIGHT

W/HID

$7.07 $5.19
10 90981-AF002 90981-AF002 / Signal Lamp Bulb

Exterior Bulbs

AVALON; FRONT TURN SIGNAL

$7.07 $5.19
11 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, LEFT

W/HID

$1.04 $0.77
11 00234-00192 00234-00192 / Bulb

Exterior Bulbs

AVALON; FRONT PARK LAMP

$1.04 $0.77
12 85661-48030 85661-48030 / Leveling Motor

Leveling Motor, LEFT

W/HID

$174.18 $127.75
12 85661-48030 85661-48030 / Leveling Motor

Leveling Motor, RIGHT

W/HID

$174.18 $127.75
12 85661-48030 85661-48030 / Leveling Motor

Motor

HEADLAMP LEVELING MOTOR; AVALON

$174.18 $127.75
13 85967-06020 85967-06020 / Control Module

Control Module, RIGHT

W/HID

$250.23 $183.54
13 85967-06020 85967-06020 / Control Module

Control Module, LEFT

W/HID

$250.23 $183.54
13 85967-06020 85967-06020 / Control Module

Module

HID MODULE; AVALON

$250.23 $183.54
14 90075-68007 90075-68007 / Headlamp Assembly Gasket

Control Module Gasket, LEFT

W/HID

$11.03 $8.09
14 90075-68007 90075-68007 / Headlamp Assembly Gasket

Control Module Gasket, RIGHT

W/HID

$11.03 $8.09
17 81138-22680 81138-22680 / Marker Lamp Bulb Socket

Socket, RIGHT

W/HID, PARK LAMP BULB

$15.49 $11.36

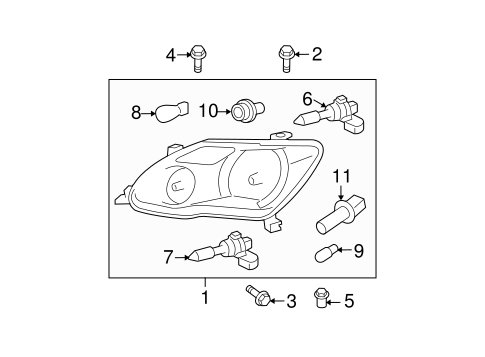

No. Part # Part # / Description List Price Price
1 81110-07093 81110-07093 / Composite Assembly

Headlamp Assembly, RIGHT

W/O HID, TO 6/09

$298.38 $218.84
1 81150-07093 81150-07093 / Composite Assembly

Headlamp Assembly, LEFT

W/O HID, TO 6/09

$298.38 $218.84
1 81110-07093 81110-07093 / Composite Assembly

AVALON; RIGHT; W/O HID

$298.38 $218.84
1 81150-07093 81150-07093 / Composite Assembly

AVALON; LEFT; W/O HID

$298.38 $218.84
2 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Headlamp Assembly Screw, RIGHT

W/O HID, UPPER

$0.95 $0.70
2 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Headlamp Assembly Screw, LEFT

W/O HID, UPPER

$0.95 $0.70
3 90080-10080 90080-10080 / Lens & Housing Screw

Headlamp Assembly Screw, RIGHT

W/O HID, LOWER

$1.06 $0.78
3 90080-10080 90080-10080 / Lens & Housing Screw

Headlamp Assembly Screw, LEFT

W/O HID, LOWER

$1.06 $0.78
4 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Headlamp Assembly Screw, LEFT

W/O HID, INNER

$0.86 $0.63
4 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Headlamp Assembly Screw, RIGHT

W/O HID, INNER

$0.86 $0.63
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

W/O HID

$1.15 $0.84
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

W/O HID

$1.15 $0.84
6 90981-AD008 90981-AD008 / Low Beam Bulb

Low Beam Bulb, RIGHT

W/O HID

$23.91 $17.53
6 90981-AD008 90981-AD008 / Low Beam Bulb

Low Beam Bulb, LEFT

W/O HID

$23.91 $17.53
6 90981-AD008 90981-AD008 / Low Beam Bulb

Headlamp Bulb

AVALON; LOW BEAM; W/O HID

$23.91 $17.53
7 90981-13066 90981-13066 / Bulb

High Beam Bulb, RIGHT

W/O HID

$71.40 $52.37
7 90981-13066 90981-13066 / Bulb

Headlamp Bulb

AVALON; HIGH BEAM

$71.40 $52.37
9 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, RIGHT

W/O HID

$1.04 $0.77
10 81515-AE010 81515-AE010 / Socket

Socket, RIGHT

W/O HID, SIGNAL LAMP BULB

$17.96 $13.18
10 81515-AE010 81515-AE010 / Socket

Socket, LEFT

W/O HID, SIGNAL LAMP BULB

$17.96 $13.18
11 81138-22680 81138-22680 / Marker Lamp Bulb Socket

Socket, LEFT

W/O HID, PARK LAMP BULB

$15.49 $11.36
No. Part # Part # / Description List Price Price
N/A 90981-20012 90981-20012 / Headlamp Bulb

AVALON; LOW BEAM; W/HID

$175.00 $149.45
