FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2007 Toyota Solara

Select FUEL SYSTEM COMPONENTS Part

2007 Toyota Solara

Change vehicle

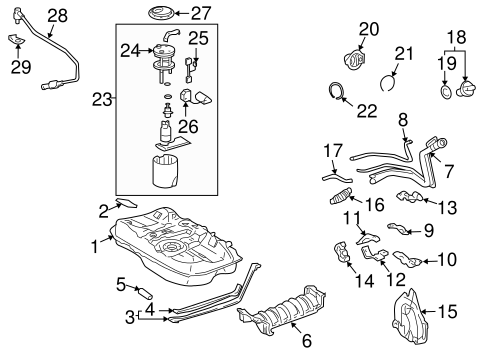

FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2007 Toyota Solara #1
No. Part # Part # / Description List Price Price
1 77001-06112 77001-06112 / Fuel Tank

2.4 LITER, 2007-08

- -
2 77652-33020 77652-33020 / Fuel Tank Cushion

2.4 LITER, 2007-08

$7.67 $5.75
3 77601-07010 77601-07010 / Mount Strap

Mount Strap, RIGHT

2.4 LITER, 2007-08

$56.09 $42.07
3 77602-07010 77602-07010 / Mount Strap

Mount Strap, LEFT

2.4 LITER, 2007-08

$56.09 $42.07
4 77681-32060 77681-32060 / Mount Strap Insulator

Mount Strap Seat, RIGHT

2.4 LITER, 2007-08

$27.81 $20.86
4 77681-32060 77681-32060 / Mount Strap Insulator

Mount Strap Seat, LEFT

2.4 LITER, 2007-08

$27.81 $20.86
5 90250-08019 90250-08019 / Mount Strap Pin

Mount Strap Pin, LEFT

2.4 LITER, 2007-08

$5.75 $4.31
5 90250-08019 90250-08019 / Mount Strap Pin

Mount Strap Pin, RIGHT

2.4 LITER, 2007-08

$5.75 $4.31
6 77631-06060 77631-06060 / Tank Shield

2.4 LITER, 2007-08

$65.37 $49.03
7 77201-06150 77201-06150 / Filler Neck

2.4 LITER, 2007-08

$250.72 $188.04
8 77226-06040 77226-06040 / Breather Tube

2.4 LITER, 2007-08

$57.87 $43.40
9 77216-06030 77216-06030 / Breather Tube Support

2.4 LITER, 2007-08, #1

$13.96 $10.47
10 77217-06040 77217-06040 / Breather Tube Support

2.4 LITER, 2007-08, #2

$10.92 $8.19
11 77218-06050 77218-06050 / Filler Neck Support

Breather Tube Support

2.4 LITER, 2007-08, #3

$11.44 $8.58
12 77272-06020 77272-06020 / Filler Neck Support

Breather Tube Support

2.4 LITER, 2007-08, #4

$14.28 $10.71
13 77285-06060 77285-06060 / Breather Tube Clamp

2.4 LITER, 2007-08, #1

$5.09 $3.82
14 77229-06040 77229-06040 / Breather Tube Clamp

2.4 LITER, 2007-08, #2

$2.90 $2.18
15 77277-AA040 77277-AA040 / Pipe Shield

2.4 LITER, 2007-08

$124.64 $93.48
16 77213-06040 77213-06040 / Connector Hose

2.4 LITER, 2007-08

$42.15 $31.61
17 77203-06020 77203-06020 / Suction Tube

Suction Hose

2.4 LITER, 2007-08

$37.15 $27.86
18 77300-06040 77300-06040 / Filler Cap

Fuel Cap

2.4 LITER, 2007-08

$20.96 $15.72
19 77316-06070 77316-06070 / Filler Cap Gasket

Fuel Cap Gasket

2.4 LITER, 2007-08

$17.93 $13.45
20 77291-AA040 77291-AA040 / Pocket

2.4 LITER, 2007-08

$32.30 $24.23
21 77391-20030 77391-20030 / Pocket O-Ring

2.4 LITER, 2007-08, OUTER

$3.42 $2.57
22 77391-02040 77391-02040 / Pocket O-Ring

2.4 LITER, 2007-08, INNER

$2.90 $2.18
23 77020-06121 77020-06121 / Fuel Pump Assembly

2.4 LITER, 2007-08

$493.71 $370.28
23 77020-06121 77020-06121 / Fuel Pump Assembly

Fuel Pump

SOLARA; 2.4L; PART OF PUMP ASSY.

$493.71 $370.28
24 77169-33020 77169-33020 / Fuel Pump Gasket

Suction Tube

2.4 LITER, 2007-08

$15.23 $11.42
25 77785-06040 77785-06040 / Harness

2.4 LITER, 2007-08

$7.01 $5.26
26 83320-06030 83320-06030 / Fuel Gauge Sending Unit

Fuel Sender Unit

2.4 LITER, 2007-08

$77.15 $57.86
26 83320-06030 83320-06030 / Fuel Gauge Sending Unit

SOLARA; 2.4L

$77.15 $57.86
27 77168-33050 77168-33050 / Suction Tube Plate

Lock Plate Cover

2.4 LITER, 2007-08

$25.54 $19.16
28 77209-06030 77209-06030 / Suction Tube

Tube

2.4 LITER, 2007-08

$35.57 $26.68
29 77241-06020 77241-06020 / Suction Tube Retainer Clip

Tube Clip

2.4 LITER, 2007-08

$1.15 $0.86
No. Part # Part # / Description List Price Price
N/A 78010-33010 78010-33010 / Pedal Travel Sensor

SOLARA

$532.15 $399.11
N/A 23814-0H010 23814-0H010 / Fuel Rail

SOLARA; 2.4L

$66.08 $49.56
No. Part # Part # / Description List Price Price
N/A 23209-0H030 23209-0H030 / Injector

SOLARA; 2.4L; FROM 9/03

$161.74 $121.31
