ELECTRICAL/BULBS - CHASSIS for 2007 Toyota Avalon

Select BULBS - CHASSIS Part

2007 Toyota Avalon

Change vehicle

No. Part # Part # / Description List Price Price
1 81150-AC050 81150-AC050 / Composite Assembly

Headlamp Assembly, LEFT

W/O HID

$340.60 $255.45
1 81110-AC050 81110-AC050 / Composite Assembly

Headlamp Assembly, RIGHT

W/O HID

$340.60 $255.45
1 81150-AC050 81150-AC050 / Composite Assembly

AVALON; LEFT; W/O HID

$340.60 $255.45
1 81110-AC050 81110-AC050 / Composite Assembly

AVALON; RIGHT; W/O HID

$340.60 $255.45
2 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Headlamp Assembly Screw, LEFT

W/O HID, UPPER

$0.92 $0.69
2 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Headlamp Assembly Screw, RIGHT

W/O HID, UPPER

$0.92 $0.69
3 90080-10080 90080-10080 / Lens & Housing Screw

Headlamp Assembly Screw, RIGHT

W/O HID, LOWER

$1.03 $0.77
3 90080-10080 90080-10080 / Lens & Housing Screw

Headlamp Assembly Screw, LEFT

W/O HID, LOWER

$1.03 $0.77
4 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Headlamp Assembly Screw, RIGHT

W/O HID, INNER

$0.83 $0.62
4 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Headlamp Assembly Screw, LEFT

W/O HID, INNER

$0.83 $0.62
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, LEFT

W/O HID

$1.12 $0.84
5 90189-05142 90189-05142 / Headlamp Assembly Grommet

Headlamp Assembly Grommet, RIGHT

W/O HID

$1.12 $0.84
6 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, LEFT

W/O HID

$23.73 $17.80
6 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

W/O HID

$23.73 $17.80
6 90981-13047 90981-13047 / Fog Lamp Bulb

AVALON

$23.73 $17.80
6 90981-13047 90981-13047 / Fog Lamp Bulb

Headlamp Bulb

AVALON; LOW BEAM; W/O HID

$23.73 $17.80
8 90981-AF002 90981-AF002 / Signal Lamp Bulb

Signal Lamp Bulb, RIGHT

W/O HID

$6.95 $5.21
8 90981-AF002 90981-AF002 / Signal Lamp Bulb

Exterior Bulbs

AVALON; FRONT TURN SIGNAL

$6.95 $5.21
10 81515-AE010 81515-AE010 / Socket

Socket, RIGHT

W/O HID, SIGNAL LAMP BULB

$17.79 $13.34
11 81138-22680 81138-22680 / Marker Lamp Bulb Socket

Socket, LEFT

W/O HID, PARK LAMP BULB

$15.31 $11.48
11 81138-22680 81138-22680 / Marker Lamp Bulb Socket

Socket, RIGHT

W/O HID, PARK LAMP BULB

$15.31 $11.48

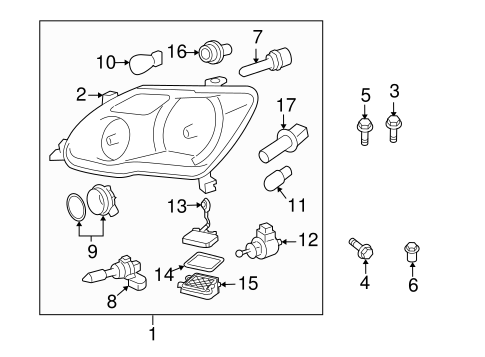

ELECTRICAL/BULBS - CHASSIS for 2007 Toyota Avalon #3
No. Part # Part # / Description List Price Price
1 81110-AC060 81110-AC060 / Composite Assembly

Headlamp Assembly, RIGHT

W/HID

$1,156.05 $867.04
1 81150-AC060 81150-AC060 / Composite Assembly

Headlamp Assembly, LEFT

W/HID

$1,156.05 $867.04
1 81150-AC060 81150-AC060 / Composite Assembly

AVALON; LEFT; W/HID

$1,156.05 $867.04
1 81110-AC060 81110-AC060 / Composite Assembly

AVALON; RIGHT; W/HID

$1,156.05 $867.04
2 81130-AC060 81130-AC060 / Lens & Housing

Lens & Housing, RIGHT

W/HID

$460.13 $345.10
2 81170-AC060 81170-AC060 / Lens & Housing

Lens & Housing, LEFT

W/HID

$460.13 $345.10
3 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Lens & Housing Screw, RIGHT

W/HID, UPPER

$0.92 $0.69
3 90159-A0006 90159-A0006 / Combo Lamp Assembly Screw

Lens & Housing Screw, LEFT

W/HID, UPPER

$0.92 $0.69
4 90080-10080 90080-10080 / Lens & Housing Screw

Lens & Housing Screw, LEFT

W/HID, LOWER

$1.03 $0.77
4 90080-10080 90080-10080 / Lens & Housing Screw

Lens & Housing Screw, RIGHT

W/HID, LOWER

$1.03 $0.77
5 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Lens & Housing Screw, RIGHT

W/HID, INNER

$0.83 $0.62
5 90109-A0003 90109-A0003 / Bumper Cover Upper Bolt

Lens & Housing Screw, LEFT

W/HID, INNER

$0.83 $0.62
6 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, LEFT

W/HID

$1.12 $0.84
6 90189-05142 90189-05142 / Headlamp Assembly Grommet

Lens & Housing Grommet, RIGHT

W/HID

$1.12 $0.84
7 90981-20002 90981-20002 / Hid Bulb

Hid Bulb, RIGHT

W/HID

$175.00 $131.25
7 90981-20002 90981-20002 / Hid Bulb

Hid Bulb, LEFT

W/HID

$175.00 $131.25
7 90981-20002 90981-20002 / Hid Bulb

Headlamp Bulb

AVALON; LOW BEAM; W/HID

$175.00 $131.25
8 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

W/HID

$23.73 $17.80
8 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

W/HID

$23.73 $17.80
8 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

AVALON; HIGH BEAM

$23.73 $17.80
9 81139-AE020 81139-AE020 / High Beam Bulb Protector

High Beam Bulb Protector, RIGHT

W/HID

$10.46 $7.85
9 81139-AE020 81139-AE020 / High Beam Bulb Protector

High Beam Bulb Protector, LEFT

W/HID

$10.46 $7.85
10 90981-AF002 90981-AF002 / Signal Lamp Bulb

Signal Lamp Bulb, LEFT

W/HID

$6.95 $5.21
11 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, LEFT

W/HID

$1.04 $0.78
11 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, RIGHT

W/HID

$1.04 $0.78
11 00234-00192 00234-00192 / Bulb

Exterior Bulbs

AVALON; FRONT PARK LAMP

$1.04 $0.78
12 85661-48030 85661-48030 / Leveling Motor

Leveling Motor, RIGHT

W/HID

$174.12 $130.59
12 85661-48030 85661-48030 / Leveling Motor

Leveling Motor, LEFT

W/HID

$174.12 $130.59
12 85661-48030 85661-48030 / Leveling Motor

Motor

HEADLAMP LEVELING MOTOR; AVALON

$174.12 $130.59
13 85967-07010 85967-07010 / Control Module

Control Module, LEFT

W/HID

$327.78 $245.84
13 85967-07010 85967-07010 / Control Module

Control Module, RIGHT

W/HID

$327.78 $245.84
13 85967-07010 85967-07010 / Control Module

Module

HID MODULE; AVALON

$327.78 $245.84
14 81117-07050 81117-07050 / Control Module Packing

Control Module Gasket, LEFT

W/HID

$11.44 $8.58
14 81117-07050 81117-07050 / Control Module Packing

Control Module Gasket, RIGHT

W/HID

$11.44 $8.58
15 81189-07050 81189-07050 / Control Module Cover

Control Module Cover, RIGHT

W/HID

$9.83 $7.37
15 81189-07050 81189-07050 / Control Module Cover

Control Module Cover, LEFT

W/HID

$9.83 $7.37
16 81515-AE010 81515-AE010 / Socket

Socket, LEFT

W/HID, SIGNAL LAMP BULB

$17.79 $13.34

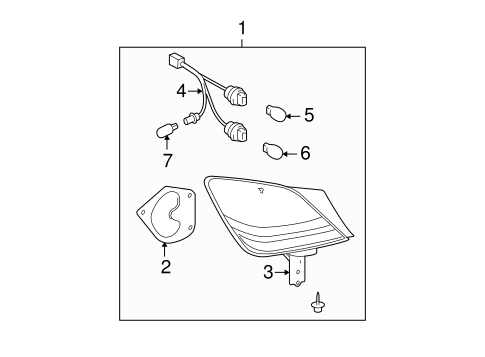

No. Part # Part # / Description List Price Price
1 81550-AC090 81550-AC090 / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

ON QUARTER PANEL

$157.51 $118.13
1 81560-AC090 81560-AC090 / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

ON QUARTER PANEL

$157.51 $118.13
2 81562-AC090 81562-AC090 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, LEFT

ON QUARTER PANEL

$15.54 $11.66
2 81552-AC090 81552-AC090 / Tail Lamp Assembly Gasket

Tail Lamp Assembly Gasket, RIGHT

ON QUARTER PANEL

$15.54 $11.66
3 58385-AC040 58385-AC040 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, RIGHT

ON QUARTER PANEL

$21.18 $15.89
3 58386-AC040 58386-AC040 / Tail Lamp Assembly Bracket

Tail Lamp Assembly Bracket, LEFT

ON QUARTER PANEL

$21.18 $15.89
4 81555-AC090 81555-AC090 / Socket & Wire

Socket & Wire, RIGHT

ON QUARTER PANEL

$31.55 $23.66
4 81555-AC090 81555-AC090 / Socket & Wire

Socket & Wire, LEFT

ON QUARTER PANEL

$31.55 $23.66
5 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, RIGHT

ON QUARTER PANEL

$5.14 $3.86
5 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, LEFT

ON QUARTER PANEL

$5.14 $3.86
5 90981-13044 90981-13044 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; STOP LAMP

$5.14 $3.86
6 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, LEFT

ON QUARTER PANEL

$6.61 $4.96
6 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, RIGHT

ON QUARTER PANEL

$6.61 $4.96
6 90981-15011 90981-15011 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; REAR TURN SIGNAL

$6.61 $4.96
7 00234-00194 00234-00194 / Bulb

Tail Lamp Bulb, RIGHT

ON QUARTER PANEL

$0.57 $0.43
7 00234-00194 00234-00194 / Bulb

Tail Lamp Bulb, LEFT

ON QUARTER PANEL

$0.57 $0.43
7 00234-00194 00234-00194 / Bulb

Exterior Bulbs

AVALON; REAR COMBINATION/BACK-UP; COMBINATION LAMP

$0.57 $0.43
