FRONT SUSPENSION/SUSPENSION COMPONENTS for 2007 Toyota 4Runner

Select SUSPENSION COMPONENTS Part

2007 Toyota 4Runner

Change vehicle

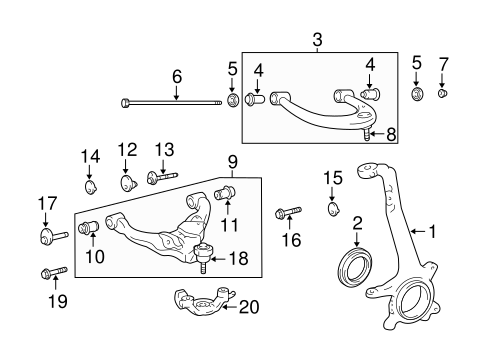

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2007 Toyota 4Runner #1
No. Part # Part # / Description List Price Price
1 43212-60200 43212-60200 / Knuckle

Knuckle, LEFT

$410.33 $300.96
1 43211-60200 43211-60200 / Knuckle

Knuckle, RIGHT

$410.33 $300.96
2 90316-A0001 90316-A0001 / Inner Seal

Knuckle Seal, LEFT

4WD

$34.39 $25.23
2 90316-A0001 90316-A0001 / Inner Seal

Knuckle Seal, RIGHT

4WD

$34.39 $25.23
3 48630-60040 48630-60040 / Upper Control Arm

Upper Control Arm, LEFT

$381.94 $280.14
3 48610-60070 48610-60070 / Upper Control Arm

Upper Control Arm, RIGHT

$381.94 $280.14
4 48632-60040 48632-60040 / Upper Control Arm Bushing

Upper Control Arm Bushing, RIGHT

$45.63 $33.46
4 48632-60040 48632-60040 / Upper Control Arm Bushing

Upper Control Arm Bushing, LEFT

$45.63 $33.46
5 90948-A2002 90948-A2002 / Upper Control Arm Retainer

Upper Control Arm Retainer, RIGHT

$19.54 $14.34
5 90948-A2002 90948-A2002 / Upper Control Arm Retainer

Upper Control Arm Retainer, LEFT

$19.54 $14.34
6 90105-A0095 90105-A0095 / Upper Control Arm Mount Bolt

Upper Control Arm Bolt, RIGHT

$12.99 $9.53
6 90105-A0095 90105-A0095 / Upper Control Arm Mount Bolt

Upper Control Arm Bolt, LEFT

$12.99 $9.53
7 90080-17208 90080-17208 / Upper Control Arm Nut

Upper Control Arm Nut, LEFT

BOLT

$3.25 $2.38
7 90080-17208 90080-17208 / Upper Control Arm Nut

Upper Control Arm Nut, RIGHT

BOLT

$3.25 $2.38
8 90468-A0003 90468-A0003 / Ball Joint Cotter Pin

Upper Control Arm Nut, LEFT

BALL JOINT

$0.89 $0.66
8 90468-A0003 90468-A0003 / Ball Joint Cotter Pin

Upper Control Arm Nut, RIGHT

BALL JOINT

$0.89 $0.66
9 48069-60010 48069-60010 / Lower Control Arm

Lower Control Arm, LEFT

$381.62 $279.90
9 48068-60010 48068-60010 / Lower Control Arm

Lower Control Arm, RIGHT

$381.62 $279.90
10 48654-60030 48654-60030 / Lower Control Arm Bushing

Lower Control Arm Bushing, RIGHT

FRONT

$63.67 $46.70
10 48654-60030 48654-60030 / Lower Control Arm Bushing

Lower Control Arm Bushing, LEFT

FRONT

$63.67 $46.70
11 48655-60030 48655-60030 / Lower Control Arm Bushing

Lower Control Arm Bushing, LEFT

REAR

$76.40 $56.03
11 48655-60030 48655-60030 / Lower Control Arm Bushing

Lower Control Arm Bushing, RIGHT

REAR

$76.40 $56.03
12 48409-60020 48409-60020 / Adjust Cam

Lower Control Arm Adjust Cam, RIGHT

TOE ADJUST

$20.72 $15.19
12 48409-60020 48409-60020 / Adjust Cam

Lower Control Arm Adjust Cam, LEFT

TOE ADJUST

$20.72 $15.19
13 48190-60020 48190-60020 / Adjust Cam

Lower Control Arm Adjust Cam, RIGHT

CAMBER ADJUST

$16.29 $11.94
13 48190-60020 48190-60020 / Adjust Cam

Lower Control Arm Adjust Cam, LEFT

CAMBER ADJUST

$16.29 $11.94
14 48452-35020 48452-35020 / Lower Control Arm Plate

Lower Control Arm Plate, RIGHT

FRONT

$22.07 $16.19
14 48452-35020 48452-35020 / Lower Control Arm Plate

Lower Control Arm Plate, LEFT

FRONT

$22.07 $16.19
15 48198-60011 48198-60011 / Adjust Cam

Lower Control Arm Plate, RIGHT

REAR

$15.72 $11.53
15 48198-60011 48198-60011 / Adjust Cam

Lower Control Arm Plate, LEFT

REAR

$15.72 $11.53
16 90105-14104 90105-14104 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

$5.69 $4.17
16 90105-14104 90105-14104 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

$5.69 $4.17
17 90178-A0001 90178-A0001 / Control Arm Nut

Lower Control Arm Nut, RIGHT

ADJUST CAM

$1.64 $1.20
17 90178-A0001 90178-A0001 / Control Arm Nut

Lower Control Arm Nut, LEFT

ADJUST CAM

$1.64 $1.20
18 90171-A0005 90171-A0005 / Lower Control Arm Nut

Lower Control Arm Nut, RIGHT

BALL JOINT

$4.28 $3.14
18 90171-A0005 90171-A0005 / Lower Control Arm Nut

Lower Control Arm Nut, LEFT

BALL JOINT

$4.28 $3.14
19 90170-14026 90170-14026 / Lower Control Arm Nut

Lower Control Arm Nut, LEFT

MOUNT BOLT

$1.38 $1.01
19 90170-14026 90170-14026 / Lower Control Arm Nut

Lower Control Arm Nut, RIGHT

MOUNT BOLT

$1.38 $1.01
20 48625-60010 48625-60010 / Attachment Kit

Lower Control Arm Bracket, RIGHT

LOWER BALL JOINT

$92.66 $67.97
20 48626-60010 48626-60010 / Attachment Kit

Lower Control Arm Bracket, LEFT

LOWER BALL JOINT

$92.66 $67.97
FRONT SUSPENSION/SUSPENSION COMPONENTS for 2007 Toyota 4Runner #2
No. Part # Part # / Description List Price Price
1 43502-60201 43502-60201 / Hub Assembly

Front Hub

4-RUNNER

$198.94 $145.91
2 43570-60011 43570-60011 / Wheel Bearing

Front Wheel Bearing

4-RUNNER

$192.05 $140.86
3 90312-96001 90312-96001 / Outer Seal

Wheel Seal

4-RUNNER

$15.69 $11.50
4 43212-60200 43212-60200 / Knuckle

4-RUNNER; LEFT; W/ABS

$410.33 $300.96
5 48520-39875 48520-39875 / Shock Absorber

4-RUNNER; ALL; W/HEIGHT CONTROL; LEFT

$264.11 $193.71
5 48510-80229 48510-80229 / Shock Absorber

4-RUNNER; ALL; W/HEIGHT CONTROL; RIGHT

$264.11 $193.71
6 48131-35461 48131-35461 / Coil Spring

4-RUNNER; RIGHT; 8 CYLINDER

$124.54 $91.34
6 48131-35481 48131-35481 / Coil Spring

4-RUNNER; LEFT; 8 CYLINDER

$126.10 $92.49
7 48609-60100 48609-60100 / Strut Mount

Support

4-RUNNER

$83.70 $61.39
11 48068-60010 48068-60010 / Lower Control Arm

4-RUNNER; RIGHT

$381.62 $279.90
15 48815-60190 48815-60190 / Stabilizer Bar Bushing

Bushings

4-RUNNER

$15.83 $11.61
FRONT SUSPENSION/SUSPENSION COMPONENTS for 2007 Toyota 4Runner #3
No. Part # Part # / Description List Price Price
1 43502-35220 43502-35220 / Hub Assembly

Front Hub

4-RUNNER

$198.94 $145.91
2 90312-96001 90312-96001 / Outer Seal

4-RUNNER

$15.69 $11.50
4 43442-35060 43442-35060 / Dust Seal

Inner Seal

4-RUNNER

$19.54 $14.34
5 43211-60200 43211-60200 / Knuckle

4-RUNNER; RIGHT

$410.33 $300.96
7 48510-69675 48510-69675 / Shock Absorber

4-RUNNER; W/O HEIGHT CONTROL; LEFT

$157.12 $115.24
7 48609-60100 48609-60100 / Strut Mount

Upper Mounting Plate

4-RUNNER

$83.70 $61.39
7 48510-80230 48510-80230 / Shock Absorber

4-RUNNER; W/HEIGHT CONTROL; RIGHT

$264.11 $193.71
7 48520-39885 48520-39885 / Shock Absorber

4-RUNNER; W/HEIGHT CONTROL; LEFT

$264.11 $193.71
8 90389-A0001 90389-A0001 / Strut Bushing

Lower Bushing

4-RUNNER

$18.65 $13.68
9 48131-35531 48131-35531 / Coil Spring

4-RUNNER; LEFT; 4.7L

$94.97 $69.65
9 48131-35511 48131-35511 / Coil Spring

4-RUNNER; RIGHT; 4.7L

$93.66 $68.69
10 48304-60130 48304-60130 / Spring Bumper

Bumper

4-RUNNER

$36.78 $26.97
11 48610-60070 48610-60070 / Upper Control Arm

4-RUNNER; RIGHT

$381.94 $280.14
11 48630-60040 48630-60040 / Upper Control Arm

4-RUNNER; LEFT

$381.94 $280.14
12 48632-60040 48632-60040 / Upper Control Arm Bushing

Bushings

4-RUNNER

$45.63 $33.46
14 48069-60010 48069-60010 / Lower Control Arm

4-RUNNER; LEFT

$381.62 $279.90
15 48655-60030 48655-60030 / Lower Control Arm Bushing

Bushings

4-RUNNER; REAR

$76.40 $56.03
15 48654-60030 48654-60030 / Lower Control Arm Bushing

Bushings

4-RUNNER; FRONT

$63.67 $46.70
16 48198-60011 48198-60011 / Adjust Cam

4-RUNNER; CAMBER; #2

$15.72 $11.53
16 48452-35020 48452-35020 / Lower Control Arm Plate

Adjust Cam

4-RUNNER; TOE IN; REAR

$22.07 $16.19
16 48190-60020 48190-60020 / Adjust Cam

4-RUNNER; CAMBER; #1

$16.29 $11.94
16 48409-60020 48409-60020 / Adjust Cam

4-RUNNER; TOE IN; FRONT

$20.72 $15.19
18 48625-60010 48625-60010 / Attachment Kit

4-RUNNER; RIGHT

$92.66 $67.97
18 48626-60010 48626-60010 / Attachment Kit

4-RUNNER; LEFT

$92.66 $67.97
19 48811-60230 48811-60230 / Stabilizer Bar

4-RUNNER

$153.46 $112.56
20 48815-60350 48815-60350 / Stabilizer Bar Bushing

Bushings

4-RUNNER

$15.75 $11.55
21 48824-60140 48824-60140 / Stabilizer Bar Bracket

Bracket

4-RUNNER; RIGHT

$24.77 $18.17
21 48829-60090 48829-60090 / Stabilizer Bar Bracket

Bracket

4-RUNNER; LEFT

$24.77 $18.17
22 48820-60050 48820-60050 / Stabilizer Link

Link

4-RUNNER; RIGHT

$104.33 $76.52
22 48810-60040 48810-60040 / Stabilizer Link

Link

4-RUNNER; LEFT

$104.33 $76.52
