REAR SUSPENSION/SUSPENSION MOUNTING for 2006 Toyota Highlander

Select SUSPENSION MOUNTING Part

2006 Toyota Highlander

Change vehicle

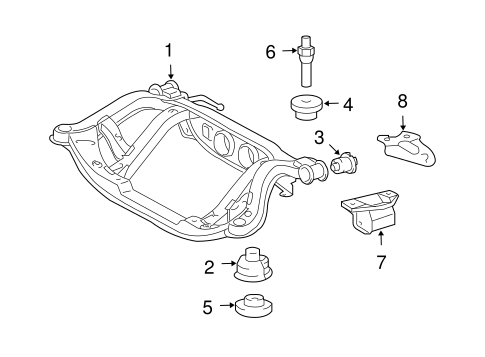

No. Part # Part # / Description List Price Price
1 51206-48050 51206-48050 / Suspension Cross-Member

4WD

$1,592.37 $1,167.94
2 52271-0E010 52271-0E010 / Suspension Cross-Member Cushion

Suspension Cross-member Cushion, RIGHT

4WD, FRONT

$88.75 $65.10
2 52271-0E010 52271-0E010 / Suspension Cross-Member Cushion

Suspension Cross-member Cushion, LEFT

4WD, FRONT

$88.75 $65.10
3 52275-0E010 52275-0E010 / Suspension Cross-Member Bushing

Suspension Cross-member Cushion, RIGHT

4WD, REAR

$88.75 $65.10
3 52275-0E010 52275-0E010 / Suspension Cross-Member Bushing

Suspension Cross-member Cushion, LEFT

4WD, REAR

$88.75 $65.10
4 52272-0E010 52272-0E010 / Stopper

Suspension Cross-member Stopper, RIGHT

4WD

$13.96 $10.25
4 52272-0E010 52272-0E010 / Stopper

Suspension Cross-member Stopper, LEFT

4WD

$13.96 $10.25
5 52277-0E020 52277-0E020 / Suspension Cross-Member Retainer

Suspension Cross-member Retainer, LEFT

4WD

$28.96 $21.24
5 52277-0E020 52277-0E020 / Suspension Cross-Member Retainer

Suspension Cross-member Retainer, RIGHT

4WD

$28.96 $21.24
6 90080-10404 90080-10404 / Suspension Cross-Member Mount Stud

Suspension Cross-member Mount Stud, LEFT

4WD

$12.38 $9.09
6 90080-10404 90080-10404 / Suspension Cross-Member Mount Stud

Suspension Cross-member Mount Stud, RIGHT

4WD

$12.38 $9.09
7 51073-0E010 51073-0E010 / Mount Bracket

Mount Bracket, RIGHT

4WD

$131.77 $96.65
7 51074-0E010 51074-0E010 / Mount Bracket

Mount Bracket, LEFT

4WD

$130.96 $96.05
8 51967-48020 51967-48020 / Tow Hook

Tow Hook, RIGHT

4WD

$42.09 $30.88
8 51968-0E010 51968-0E010 / Tow Hook

Tow Hook, LEFT

4WD

$29.65 $21.75

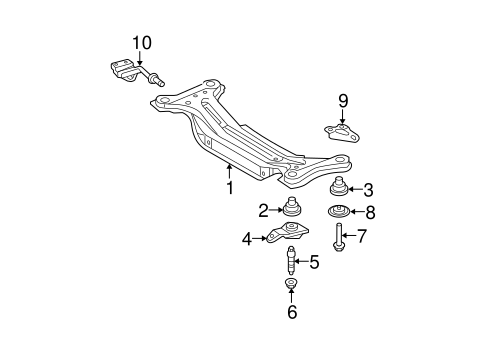

No. Part # Part # / Description List Price Price
1 51206-0E014 51206-0E014 / Cross-Member

Suspension Cross-member

2WD

$615.78 $451.64
2 52272-0E021 52272-0E021 / Suspension Cross-Member Cushion

Suspension Cross-member Cushion, LEFT

2WD, FRONT

$47.41 $34.77
2 52271-0E021 52271-0E021 / Suspension Cross-Member Cushion

Suspension Cross-member Cushion, RIGHT

2WD, FRONT

$47.41 $34.77
3 52275-06051 52275-06051 / Suspension Cross-Member Mount Cushion

Suspension Cross-member Cushion, RIGHT

2WD, REAR

$47.41 $34.77
3 52275-06051 52275-06051 / Suspension Cross-Member Mount Cushion

Suspension Cross-member Cushion, LEFT

2WD, REAR

$47.41 $34.77
4 52204-0E010 52204-0E010 / Suspension Cross-Member Stopper

Stopper, LEFT

2WD

$46.95 $34.44
4 52203-0E010 52203-0E010 / Suspension Cross-Member Stopper

Stopper, RIGHT

2WD

$46.95 $34.44
5 90080-10405 90080-10405 / Suspension Cross-Member Stud

Mount Stud, RIGHT

2WD

$8.30 $6.09
5 90080-10405 90080-10405 / Suspension Cross-Member Stud

Mount Stud, LEFT

2WD

$8.30 $6.09
6 90080-17199 90080-17199 / Suspension Cross-Member Nut

Mount Stud Nut, LEFT

2WD

$3.74 $2.75
6 90080-17199 90080-17199 / Suspension Cross-Member Nut

Mount Stud Nut, RIGHT

2WD

$3.74 $2.75
7 90080-11721 90080-11721 / Suspension Cross-Member Bolt

Mount Bolt, RIGHT

2WD

$10.31 $7.56
7 90080-11721 90080-11721 / Suspension Cross-Member Bolt

Mount Bolt, LEFT

2WD

$10.31 $7.56
8 52273-32010 52273-32010 / Suspension Cross-Member Stopper

Mount Bolt Washer, LEFT

2WD

$8.99 $6.60
8 52273-32010 52273-32010 / Suspension Cross-Member Stopper

Mount Bolt Washer, RIGHT

2WD

$8.99 $6.60
10 51308-0E012 51308-0E012 / Bracket

2WD, EXHAUST PIPE CLAMP

$44.56 $32.68
