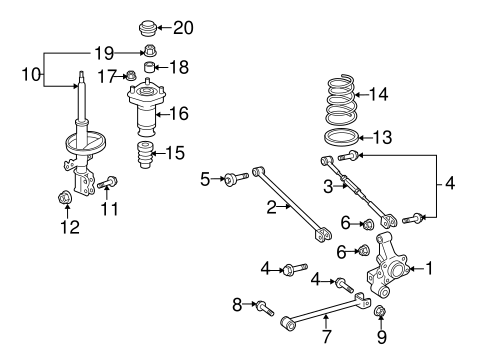

REAR SUSPENSION/REAR SUSPENSION for 2006 Toyota Highlander

Select REAR SUSPENSION Part

2006 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 42304-48031 42304-48031 / Knuckle

Knuckle, RIGHT

4WD

$532.58 $390.63
1 42305-48031 42305-48031 / Knuckle

Knuckle, LEFT

4WD

$532.58 $390.63
2 48710-0E020 48710-0E020 / Front Control Arm

Ft Lower Control Arm, RIGHT

4WD

- -
2 48710-0E020 48710-0E020 / Front Control Arm

Ft Lower Control Arm, LEFT

4WD

- -
3 48730-48110 48730-48110 / Rear Control Arm

Rear Lower Control Arm, LEFT

4WD

$133.35 $97.81
3 48730-48110 48730-48110 / Rear Control Arm

Rear Lower Control Arm, RIGHT

4WD

$133.35 $97.81
4 90080-11672 90080-11672 / Ft Lateral Arm Mount Bolt

Rear Lower Control Arm Bolt, RIGHT

4WD, #1

$10.31 $7.56
4 90080-11672 90080-11672 / Ft Lateral Arm Mount Bolt

Rear Lower Control Arm Bolt, LEFT

4WD, #1

$10.31 $7.56
6 90178-A0001 90178-A0001 / Control Arm Nut

Rear Lower Control Arm Nut, RIGHT

4WD

$1.64 $1.20
6 90178-A0001 90178-A0001 / Control Arm Nut

Rear Lower Control Arm Nut, LEFT

4WD

$1.64 $1.20
7 48780-48050 48780-48050 / Strut Rod

Strut Rod, LEFT

4WD

$141.13 $103.52
7 48780-48050 48780-48050 / Strut Rod

Strut Rod, RIGHT

4WD

$141.13 $103.52
8 90080-11695 90080-11695 / Strut Rod Mount Bolt

Strut Rod Bolt, RIGHT

4WD

$8.30 $6.09
8 90080-11695 90080-11695 / Strut Rod Mount Bolt

Strut Rod Bolt, LEFT

4WD

$8.30 $6.09
9 90089-17059 90089-17059 / Strut Rod Nut

Strut Rod Nut, LEFT

4WD

- -
9 90089-17059 90089-17059 / Strut Rod Nut

Strut Rod Nut, RIGHT

4WD

- -
10 48530-49595 48530-49595 / Strut

Strut, RIGHT

4WD

$183.21 $134.38
10 48540-49325 48540-49325 / Strut

Strut, LEFT

4WD

$183.21 $134.38
11 90080-10398 90080-10398 / Strut Bolt

Strut Bolt, LEFT

4WD

$10.31 $7.56
11 90080-10398 90080-10398 / Strut Bolt

Strut Bolt, RIGHT

4WD

$10.31 $7.56
12 90080-17213 90080-17213 / Strut Nut

Strut Nut, LEFT

4WD

$4.19 $3.07
12 90080-17213 90080-17213 / Strut Nut

Strut Nut, RIGHT

4WD

$4.19 $3.07
13 48258-0E010 48258-0E010 / Spring Lower Insulator

Insulator, LEFT

4WD

$14.25 $10.46
13 48258-0E010 48258-0E010 / Spring Lower Insulator

Insulator, RIGHT

4WD

$14.25 $10.46
14 48231-48350 48231-48350 / Coil Spring

Spring, LEFT

4WD

$143.46 $105.23
14 48231-48350 48231-48350 / Coil Spring

Spring, RIGHT

4WD

$143.46 $105.23
15 48341-0E030 48341-0E030 / Strut Bumper

Bumper, LEFT

4WD

$18.65 $13.68
15 48341-0E030 48341-0E030 / Strut Bumper

Bumper, RIGHT

4WD

$18.65 $13.68
16 48750-0E010 48750-0E010 / Strut Mount

Support, RIGHT

4WD

$142.23 $104.31
16 48760-0E010 48760-0E010 / Strut Mount

Support, LEFT

4WD

$142.23 $104.31
17 90080-17225 90080-17225 / Strut Mount Nut

Support Nut, RIGHT

4WD

$3.25 $2.38
17 90080-17225 90080-17225 / Strut Mount Nut

Support Nut, LEFT

4WD

$3.25 $2.38
18 90080-38148 90080-38148 / Collar

Collar, RIGHT

4WD

$9.02 $6.61
18 90080-38148 90080-38148 / Collar

Collar, LEFT

4WD

$9.02 $6.61
19 90080-17212 90080-17212 / Strut Retainer Nut

Top Nut, RIGHT

4WD

$2.96 $2.17
19 90080-17212 90080-17212 / Strut Retainer Nut

Top Nut, LEFT

4WD

$2.96 $2.17
20 48753-06011 48753-06011 / Strut Mount Cover

Cover, LEFT

4WD

$4.42 $3.25
20 48753-06011 48753-06011 / Strut Mount Cover

Cover, RIGHT

4WD

$4.42 $3.25
No. Part # Part # / Description List Price Price
1 42304-48021 42304-48021 / Knuckle

Knuckle, RIGHT

2WD

$402.40 $295.14
1 42305-48021 42305-48021 / Knuckle

Knuckle, LEFT

2WD

$402.40 $295.14
2 48710-0E010 48710-0E010 / Front Control Arm

Ft Lower Control Arm, RIGHT

2WD

- -
2 48710-0E010 48710-0E010 / Front Control Arm

Ft Lower Control Arm, LEFT

2WD

- -
3 48730-48090 48730-48090 / Rear Lower Control Arm

Rear Lower Control Arm, RIGHT

2WD

$171.10 $125.50
3 48740-0E010 48740-0E010 / Rear Lower Control Arm

Rear Lower Control Arm, LEFT

2WD

- -
5 90080-11674 90080-11674 / Ft Lateral Arm Mount Bolt

Rear Lower Control Arm Bolt, LEFT

2WD, #2

$28.16 $20.65
5 90080-11674 90080-11674 / Ft Lateral Arm Mount Bolt

Rear Lower Control Arm Bolt, RIGHT

2WD, #2

$28.16 $20.65
6 90080-17223 90080-17223 / Ft Lateral Arm Nut

Rear Lower Control Arm Nut, RIGHT

2WD

$1.67 $1.22
6 90080-17223 90080-17223 / Ft Lateral Arm Nut

Rear Lower Control Arm Nut, LEFT

2WD

$1.67 $1.22
7 48780-0E010 48780-0E010 / Strut Rod

Strut Rod, LEFT

2WD

$147.20 $107.96
7 48780-0E010 48780-0E010 / Strut Rod

Strut Rod, RIGHT

2WD

$147.20 $107.96
10 48540-49355 48540-49355 / Strut

Strut, LEFT

2WD

$196.41 $144.06
10 48530-49615 48530-49615 / Strut

Strut, RIGHT

2WD

$196.41 $144.06
14 48231-48390 48231-48390 / Coil Spring

Spring, RIGHT

2WD

$117.79 $86.39
14 48231-48390 48231-48390 / Coil Spring

Spring, LEFT

2WD

$117.79 $86.39

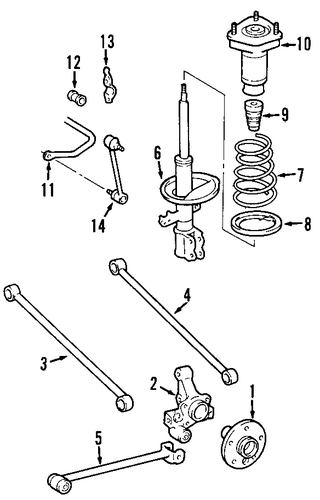

REAR SUSPENSION/REAR SUSPENSION for 2006 Toyota Highlander #3
No. Part # Part # / Description List Price Price
1 42450-0E010 42450-0E010 / Hub & Bearing Assembly

HIGHLANDER HYBRID; 2WD; RIGHT

$729.83 $535.30
1 42410-0E050 42410-0E050 / Hub & Bearing Assembly

HIGHLANDER HYBRID; 4WD

$382.00 $280.17
1 42460-0E010 42460-0E010 / Hub & Bearing Assembly

HIGHLANDER HYBRID; 2WD; LEFT

$729.83 $535.30
2 42305-48021 42305-48021 / Knuckle

HIGHLANDER; 2WD; LEFT

$402.40 $295.14
2 42304-48021 42304-48021 / Knuckle

HIGHLANDER; 2WD; RIGHT

$402.40 $295.14
2 42305-48031 42305-48031 / Knuckle

HIGHLANDER; 4WD; LEFT

$532.58 $390.63
2 42304-48031 42304-48031 / Knuckle

HIGHLANDER; 4WD; RIGHT

$532.58 $390.63
3 48710-0E010 48710-0E010 / Front Control Arm

Front Arm

HIGHLANDER HYBRID; 2WD

- -
3 48710-0E020 48710-0E020 / Front Control Arm

Front Arm

HIGHLANDER HYBRID; 4WD

- -
4 48730-48090 48730-48090 / Rear Lower Control Arm

Rear Arm

HIGHLANDER HYBRID; 2WD; RIGHT

$171.10 $125.50
4 48740-0E010 48740-0E010 / Rear Lower Control Arm

Rear Arm

HIGHLANDER HYBRID; 2WD; LEFT

- -
4 48730-48110 48730-48110 / Rear Control Arm

Rear Arm

HIGHLANDER HYBRID; 4WD

$133.35 $97.81
5 48780-48050 48780-48050 / Strut Rod

Trailing Arm

HIGHLANDER HYBRID; 4WD

$141.13 $103.52
5 48780-0E010 48780-0E010 / Strut Rod

Trailing Arm

HIGHLANDER HYBRID; 2WD

$147.20 $107.96
6 48530-49595 48530-49595 / Strut

HIGHLANDER HYBRID; 4WD; RIGHT

$183.21 $134.38
6 48530-49615 48530-49615 / Strut

HIGHLANDER HYBRID; 2WD; RIGHT

$196.41 $144.06
6 48540-49325 48540-49325 / Strut

HIGHLANDER HYBRID; 4WD; LEFT

$183.21 $134.38
6 48540-49355 48540-49355 / Strut

HIGHLANDER HYBRID; 2WD; LEFT

$196.41 $144.06
7 48231-48350 48231-48350 / Coil Spring

HIGHLANDER HYBRID; 4WD

$143.46 $105.23
7 48231-48390 48231-48390 / Coil Spring

HIGHLANDER HYBRID; 2WD

$117.79 $86.39
8 48258-0E010 48258-0E010 / Spring Lower Insulator

Lower Spring Insulator

HIGHLANDER HYBRID

$14.25 $10.46
9 48341-0E030 48341-0E030 / Strut Bumper

Bumper

HIGHLANDER HYBRID

$18.65 $13.68
10 48750-0E010 48750-0E010 / Strut Mount

HIGHLANDER HYBRID; RIGHT

$142.23 $104.31
10 48760-0E010 48760-0E010 / Strut Mount

HIGHLANDER HYBRID; LEFT

$142.23 $104.31
11 48812-48140 48812-48140 / Stabilizer Bar

HIGHLANDER HYBRID; 2WD

$97.29 $71.36
11 48805-48110 48805-48110 / Stabilizer Bar

HIGHLANDER HYBRID; 4WD

$227.73 $167.03
12 48818-06130 48818-06130 / Stabilizer Bar Bushing

Bushings

HIGHLANDER HYBRID; 2WD

$20.08 $14.73
13 48832-0E060 48832-0E060 / Bracket

Mounting Bracket

HIGHLANDER HYBRID; 4WD

$19.02 $13.96
13 48832-AA010 48832-AA010 / Bracket

Mounting Bracket

HIGHLANDER HYBRID; 2WD

$10.92 $8.00
14 48830-06030 48830-06030 / Stabilizer Link

Link

HIGHLANDER HYBRID

$97.26 $71.33
