MAINTENANCE & LUBRICATION/FILTERS for 2006 Toyota Highlander

Select FILTERS Part

2006 Toyota Highlander

Change vehicle

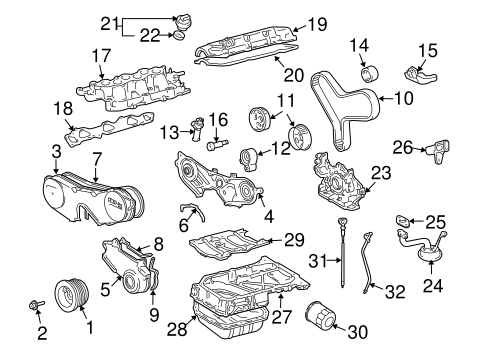

No. Part # Part # / Description List Price Price
1 13408-20010 13408-20010 / Crankshaft Pulley

JAPAN BUILT

$365.36 $267.97
2 90119-16004 90119-16004 / Crankshaft Pulley Bolt

$7.93 $5.82
3 11303-0A031 11303-0A031 / Front Cover

Upper Timing Cover

OUTER

$117.43 $86.13
4 11323-20030 11323-20030 / Upper Timing Cover

INNER

$129.81 $95.21
5 11321-0A020 11321-0A020 / Lower Timing Cover

$55.88 $40.99
7 11329-20010 11329-20010 / Gasket

UPPER TIMING COVER, OUTER

$6.29 $4.61
8 11328-20020 11328-20020 / Gasket

LOWER TIMING COVER, UPPER

$6.29 $4.61
9 11319-20010 11319-20010 / Gasket

LOWER TIMING COVER, LOWER

$6.29 $4.61
10 13568-09080 13568-09080 / Timing Belt

$61.72 $45.26
11 13523-20020 13523-20020 / Camshaft Gear

Timing Pulley, RIGHT

$44.39 $32.56
11 13523-20020 13523-20020 / Camshaft Gear

Timing Pulley, LEFT

$44.39 $32.56
12 13505-20030 13505-20030 / Tensioner Pulley

Tension Pulley

$112.49 $82.51
13 13540-20030 13540-20030 / Belt Tensioner

Tensioner

$72.98 $53.53
14 13503-0A010 13503-0A010 / Idler Pulley

$110.71 $81.20
15 13584-20011 13584-20011 / Bracket

$38.56 $28.28
16 13556-62010 13556-62010 / Tension Pulley Shaft

Shaft

$15.29 $11.21
17 17101-20070 17101-20070 / Intake Manifold

HIGHLANDER HYBRID

$306.72 $224.97
18 17177-20020 17177-20020 / Manifold Gasket

Intake Manifold Gasket, RIGHT

$31.47 $23.08
18 17178-20020 17178-20020 / Manifold Gasket

Intake Manifold Gasket, LEFT

$30.33 $22.25
18 17177-20020 17177-20020 / Manifold Gasket

HIGHLANDER HYBRID; RIGHT

$31.47 $23.08
18 17178-20020 17178-20020 / Manifold Gasket

HIGHLANDER HYBRID; LEFT

$30.33 $22.25
19 11202-0A051 11202-0A051 / Valve Cover

Valve Cover, LEFT

$243.71 $178.75
19 11201-0A060 11201-0A060 / Valve Cover

Valve Cover, RIGHT

$285.43 $209.35
20 11214-0A010 11214-0A010 / Valve Cover Gasket

Valve Cover Gasket, LEFT

$19.74 $14.48
20 11213-0A010 11213-0A010 / Valve Cover Gasket

Valve Cover Gasket, RIGHT

$19.74 $14.48
21 12180-46031 12180-46031 / Filler Cap

$13.02 $9.55
22 12195-20020 12195-20020 / Filler Cap Gasket

$3.36 $2.46
23 15100-0A040 15100-0A040 / Oil Pump

$272.59 $199.93
24 15104-20020 15104-20020 / Oil Pick-Up

Tube

OIL PUMP PICKUP

$49.16 $36.06
25 15147-20010 15147-20010 / Tube Gasket

$3.22 $2.35
26 90080-19014 90080-19014 / Camshaft Position Sensor

Crankshaft Sensor

$66.91 $57.71
26 90080-19014 90080-19014 / Camshaft Position Sensor

Crankshaft Position Sensor

HIGHLANDER HYBRID; UPPER; NO.1 (CYLINDER HEAD)

$66.91 $57.71
27 12111-0A040 12111-0A040 / Oil Pan

Upper Oil Pan

$263.16 $193.02
28 12102-20010 12102-20010 / Oil Pan

Lower Oil Pan

$204.11 $149.71
29 12121-0A011 12121-0A011 / Baffle Plate

$33.42 $24.51
30 90915-YZZD1 90915-YZZD1 / Oil Filter

HIGHLANDER HYBRID

$5.41 $3.95
31 15301-20021 15301-20021 / Dipstick

$13.53 $9.93
32 11452-0A020 11452-0A020 / Tube

Guide Tube

$20.06 $14.71

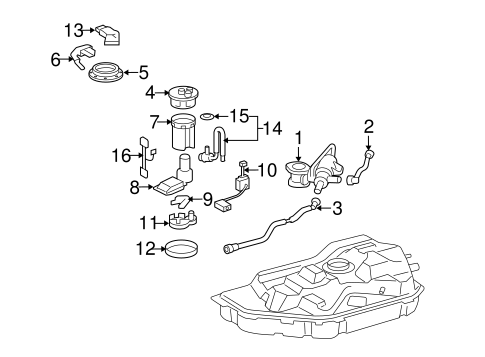

No. Part # Part # / Description List Price Price
1 77710-48020 77710-48020 / Check Valve

FUEL PUMP & COMPONENTS

$484.57 $355.41
2 77404-48040 77404-48040 / Vent Hose

FUEL PUMP & COMPONENTS, #1

$24.48 $17.96
3 77404-48090 77404-48090 / Vent Hose

FUEL PUMP & COMPONENTS, #2

$49.71 $36.45
4 77024-48020 77024-48020 / Plate

FUEL PUMP & COMPONENTS, SUCTION

$37.84 $27.76
5 77168-52010 77168-52010 / Fuel Pump Retainer Plate

Plate Retainer

FUEL PUMP & COMPONENTS

$17.10 $12.54
6 77161-48020 77161-48020 / Plate Connector

FUEL PUMP & COMPONENTS

$4.60 $3.37
7 23300-0A020 23300-0A020 / Fuel Filter

HIGHLANDER HYBRID; FUEL TANK

$38.23 $28.04
9 23249-0A020 23249-0A020 / Fuel Pump Cushion

FUEL PUMP & COMPONENTS

$18.39 $13.49
10 83320-48040 83320-48040 / Fuel Gauge Sending Unit

Fuel Sender Unit

FUEL PUMP & COMPONENTS

$77.81 $57.07
10 83320-48040 83320-48040 / Fuel Gauge Sending Unit

HIGHLANDER HYBRID

$77.81 $57.07
11 77175-07020 77175-07020 / Lower Support

Support

FUEL PUMP & COMPONENTS

$12.67 $9.30
12 77169-33030 77169-33030 / Fuel Pump Gasket

Support Gasket

FUEL PUMP & COMPONENTS

$31.17 $22.86
13 89461-48020 89461-48020 / Pressure Sensor

FUEL PUMP & COMPONENTS

$260.66 $191.19
13 89461-48020 89461-48020 / Pressure Sensor

Tank Pressure Sensor

HIGHLANDER HYBRID

$260.66 $191.19
14 23020-0A010 23020-0A010 / Fuel Pressure Regulator

Pressure Reg

FUEL PUMP & COMPONENTS

$101.17 $74.20
14 23020-0A010 23020-0A010 / Fuel Pressure Regulator

HIGHLANDER HYBRID

$101.17 $74.20
15 90301-07020 90301-07020 / Pressure Reg O-Ring

FUEL PUMP & COMPONENTS

$3.96 $2.90
16 77785-52020 77785-52020 / Wire Harness

FUEL PUMP & COMPONENTS

$5.34 $3.92
No. Part # Part # / Description List Price Price
layer_9 23217-20060 23217-20060 / Fuel Filter

HIGHLANDER HYBRID; FUEL PUMP

$15.43 $11.32
