FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2006 Toyota Highlander

Select FUEL SYSTEM COMPONENTS Part

2006 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 77710-48020 77710-48020 / Check Valve

FUEL PUMP & COMPONENTS

$484.57 $355.41
2 77404-48040 77404-48040 / Vent Hose

FUEL PUMP & COMPONENTS, #1

$24.48 $17.96
3 77404-48090 77404-48090 / Vent Hose

FUEL PUMP & COMPONENTS, #2

$49.71 $36.45
4 77024-48020 77024-48020 / Plate

FUEL PUMP & COMPONENTS, SUCTION

$37.84 $27.76
5 77168-52010 77168-52010 / Fuel Pump Retainer Plate

Plate Retainer

FUEL PUMP & COMPONENTS

$17.10 $12.54
6 77161-48020 77161-48020 / Plate Connector

FUEL PUMP & COMPONENTS

$4.60 $3.37
7 23300-0A020 23300-0A020 / Fuel Filter

HIGHLANDER HYBRID; FUEL TANK

$38.23 $28.04
9 23249-0A020 23249-0A020 / Fuel Pump Cushion

FUEL PUMP & COMPONENTS

$18.39 $13.49
10 83320-48040 83320-48040 / Fuel Gauge Sending Unit

Fuel Sender Unit

FUEL PUMP & COMPONENTS

$77.81 $57.07
10 83320-48040 83320-48040 / Fuel Gauge Sending Unit

HIGHLANDER HYBRID

$77.81 $57.07
11 77175-07020 77175-07020 / Lower Support

Support

FUEL PUMP & COMPONENTS

$12.67 $9.30
12 77169-33030 77169-33030 / Fuel Pump Gasket

Support Gasket

FUEL PUMP & COMPONENTS

$31.17 $22.86
13 89461-48020 89461-48020 / Pressure Sensor

FUEL PUMP & COMPONENTS

$260.66 $191.19
13 89461-48020 89461-48020 / Pressure Sensor

Tank Pressure Sensor

HIGHLANDER HYBRID

$260.66 $191.19
14 23020-0A010 23020-0A010 / Fuel Pressure Regulator

Pressure Reg

FUEL PUMP & COMPONENTS

$101.17 $74.20
14 23020-0A010 23020-0A010 / Fuel Pressure Regulator

HIGHLANDER HYBRID

$101.17 $74.20
15 90301-07020 90301-07020 / Pressure Reg O-Ring

FUEL PUMP & COMPONENTS

$3.96 $2.90
16 77785-52020 77785-52020 / Wire Harness

FUEL PUMP & COMPONENTS

$5.34 $3.92

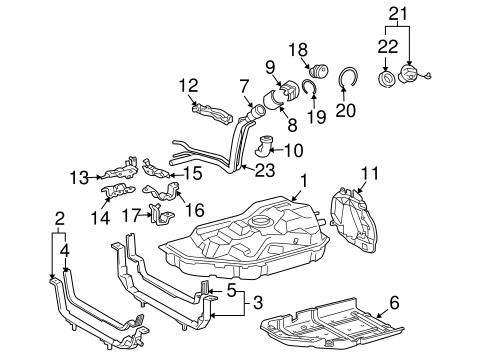

No. Part # Part # / Description List Price Price
1 77001-48112 77001-48112 / Fuel Tank

FUEL TANK & COMPONENTS

- -
2 77601-48050 77601-48050 / Fuel Tank Strap

Fuel Tank Strap, RIGHT

FUEL TANK & COMPONENTS

$76.74 $56.29
3 77602-48050 77602-48050 / Fuel Tank Strap

Fuel Tank Strap, LEFT

FUEL TANK & COMPONENTS

$76.74 $56.29
4 77616-48020 77616-48020 / Fuel Tank Strap Seat

Fuel Tank Strap Seat, RIGHT

FUEL TANK & COMPONENTS

$5.69 $4.17
5 77616-48030 77616-48030 / Fuel Tank Strap Seat

Fuel Tank Strap Seat, LEFT

FUEL TANK & COMPONENTS

$5.69 $4.17
6 77606-48080 77606-48080 / Tank Shield

FUEL TANK & COMPONENTS

$367.83 $269.79
7 77210-48170 77210-48170 / Filler Pipe

FUEL TANK & COMPONENTS

$481.04 $352.82
9 77291-48030 77291-48030 / Fuel Pocket

Filler Pipe Cover

FUEL TANK & COMPONENTS

$33.67 $24.69
10 77278-48010 77278-48010 / Filler Pipe Protector

FUEL TANK & COMPONENTS

$10.83 $7.94
11 77277-48060 77277-48060 / Filler Shield

FUEL TANK & COMPONENTS

$62.26 $45.66
12 77292-48020 77292-48020 / Breather Tube Shield

Shield

FUEL TANK & COMPONENTS

$68.96 $50.58
13 77218-48060 77218-48060 / Filler Pipe Support

Front Bracket

FUEL TANK & COMPONENTS, UPPER

$17.04 $12.49
14 77217-48050 77217-48050 / Filler Pipe Support

Front Bracket

FUEL TANK & COMPONENTS, LOWER

$18.27 $13.41
15 77216-48030 77216-48030 / Filler Pipe Support

Rear Bracket

FUEL TANK & COMPONENTS, UPPER

$15.37 $11.27
16 77272-48020 77272-48020 / Filler Pipe Support

Rear Bracket

FUEL TANK & COMPONENTS, LOWER

$31.49 $23.09
17 77273-48020 77273-48020 / Stabilizer Bar Mount Bracket

Support

FUEL TANK & COMPONENTS

$43.79 $32.12
18 77291-48030 77291-48030 / Fuel Pocket

Filler Neck

FUEL TANK & COMPONENTS

$33.67 $24.69
19 77391-02040 77391-02040 / Pocket O-Ring

Filler Neck Ring

FUEL TANK & COMPONENTS, INNER

$2.93 $2.15
20 77391-33010 77391-33010 / Fuel Pocket Ring

Filler Neck Ring

FUEL TANK & COMPONENTS, OUTER

$3.56 $2.61
21 77300-48010 77300-48010 / Filler Cap

FUEL TANK & COMPONENTS

$19.49 $14.29
22 77316-47020 77316-47020 / Filler Cap Gasket

FUEL TANK & COMPONENTS

$15.00 $11.00
23 77226-48050 77226-48050 / Breather Tube

FUEL TANK & COMPONENTS

$72.87 $53.45
No. Part # Part # / Description List Price Price
N/A 23815-20021 23815-20021 / Fuel Rail

HIGHLANDER HYBRID; LEFT

$66.86 $49.04
N/A 78120-48091 78120-48091 / Pedal Travel Sensor

HIGHLANDER HYBRID

$173.31 $127.12
layer_5 23221-20030 23221-20030 / Fuel Pump

HIGHLANDER HYBRID

$343.09 $251.65
No. Part # Part # / Description List Price Price
N/A 23207-20011 23207-20011 / Pulse Damper

Damper

HIGHLANDER HYBRID

$74.99 $55.00
N/A 23209-0A020 23209-0A020 / Injector

HIGHLANDER HYBRID

$161.64 $118.56
N/A 23814-20021 23814-20021 / Fuel Rail

HIGHLANDER HYBRID; RIGHT

$66.86 $49.04
