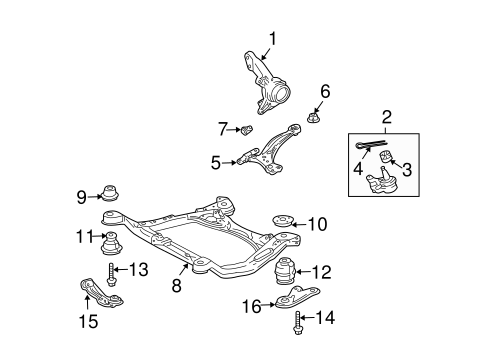

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2006 Toyota Highlander

Select SUSPENSION COMPONENTS Part

2006 Toyota Highlander

Change vehicle

No. Part # Part # / Description List Price Price
1 43211-58020 43211-58020 / Knuckle

Knuckle, RIGHT

$348.38 $255.52
1 43212-58020 43212-58020 / Knuckle

Knuckle, LEFT

$348.38 $255.52
2 43330-29615 43330-29615 / Lower Ball Joint

Lower Ball Joint, RIGHT

$82.09 $60.21
2 43340-29215 43340-29215 / Lower Ball Joint

Lower Ball Joint, LEFT

$82.09 $60.21
3 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Nut, RIGHT

$3.25 $2.38
3 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Nut, LEFT

$3.25 $2.38
4 95381-03225 95381-03225 / Lower Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, RIGHT

$1.06 $0.78
4 95381-03225 95381-03225 / Lower Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, LEFT

$1.06 $0.78
5 48068-0E010 48068-0E010 / Control Arm

Control Arm, RIGHT

$253.65 $186.04
5 48069-0E010 48069-0E010 / Control Arm

Control Arm, LEFT

$253.65 $186.04
6 90080-17223 90080-17223 / Ft Lateral Arm Nut

Control Arm Nut, RIGHT

$1.67 $1.22
6 90080-17223 90080-17223 / Ft Lateral Arm Nut

Control Arm Nut, LEFT

$1.67 $1.22
7 48657-06010 48657-06010 / Stopper

Stopper, LEFT

$10.23 $7.50
7 48657-06010 48657-06010 / Stopper

Stopper, RIGHT

$10.23 $7.50
8 51100-48061 51100-48061 / Engine Cradle

$1,612.49 $1,182.69
9 52213-0E010 52213-0E010 / Engine Cradle Stopper

FRONT

$42.21 $30.96
10 52216-06030 52216-06030 / Engine Cradle Stopper

REAR

$30.28 $22.22
11 52211-0E010 52211-0E010 / Engine Cradle Cushion

FRONT

$84.01 $61.62
12 52215-06030 52215-06030 / Engine Cradle Cushion

Engine Cradle Cushion, RIGHT

REAR

$100.45 $73.68
12 52217-06010 52217-06010 / Engine Cradle Insulator

Engine Cradle Cushion, LEFT

REAR

$92.66 $67.97
13 90080-11723 90080-11723 / Engine Cradle Bolt

Engine Cradle Front Bolt

$18.50 $13.57
14 90080-11722 90080-11722 / Engine Cradle Bolt

Engine Cradle Rear Bolt, RIGHT

$16.52 $12.11
14 90080-11722 90080-11722 / Engine Cradle Bolt

Engine Cradle Rear Bolt, LEFT

$16.52 $12.11
15 51035-0E011 51035-0E011 / Front Plate

Engine Cradle Front Bracket, RIGHT

$112.43 $82.46
15 51036-0E011 51036-0E011 / Front Plate

Engine Cradle Front Bracket, LEFT

$112.43 $82.46
16 51023-48030 51023-48030 / Rear Brace

Engine Cradle Rear Bracket, RIGHT

$96.25 $70.60
16 51024-48030 51024-48030 / Rear Brace

Engine Cradle Rear Bracket, LEFT

$106.11 $77.82

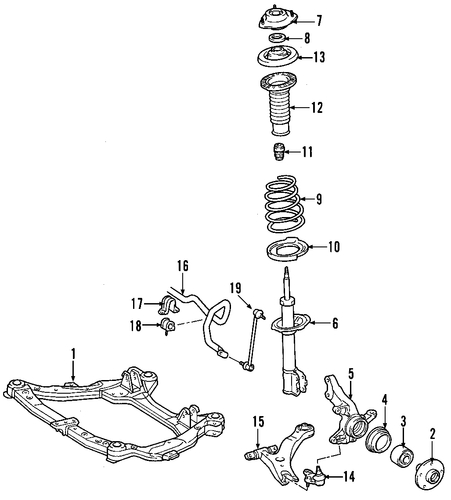

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2006 Toyota Highlander #2
No. Part # Part # / Description List Price Price
1 51100-48061 51100-48061 / Engine Cradle

Cross-member

HIGHLANDER HYBRID

$1,612.49 $1,182.69
2 43502-AA021 43502-AA021 / Hub Assembly

Front Hub

HIGHLANDER HYBRID

$156.43 $114.74
3 90080-36193 90080-36193 / Bearing

Front Hub Bearing

HIGHLANDER HYBRID

$104.73 $76.81
4 43246-28020 43246-28020 / Wheel Bearing Dust Shield

Hub Seals

HIGHLANDER HYBRID

$17.21 $12.63
5 43211-58020 43211-58020 / Knuckle

HIGHLANDER HYBRID; RIGHT

$348.38 $255.52
5 43212-58020 43212-58020 / Knuckle

HIGHLANDER HYBRID; LEFT

$348.38 $255.52
6 48510-49885 48510-49885 / Strut

HIGHLANDER HYBRID; RIGHT

$177.23 $129.99
6 48520-80020 48520-80020 / Strut

HIGHLANDER HYBRID; LEFT

$177.23 $129.99
7 48609-0E010 48609-0E010 / Strut Mount

HIGHLANDER HYBRID

$113.46 $83.22
8 90903-63014 90903-63014 / Bearing

Strut Bearing

HIGHLANDER HYBRID

$40.17 $29.46
9 48131-48530 48131-48530 / Coil Spring

HIGHLANDER HYBRID

$115.72 $84.88
10 48158-0E010 48158-0E010 / Lower Seat

Lower Spring Insulator

HIGHLANDER HYBRID

$31.23 $22.91
11 48331-0E010 48331-0E010 / Stopper

HIGHLANDER HYBRID

$23.24 $17.04
12 48157-48030 48157-48030 / Dust Cover

Upper Spring Insulator

HIGHLANDER HYBRID

$28.42 $20.84
13 48471-41012 48471-41012 / Seat

Spring Seat

HIGHLANDER HYBRID

$33.53 $24.60
14 43330-29615 43330-29615 / Lower Ball Joint

HIGHLANDER HYBRID; RIGHT

$82.09 $60.21
14 43340-09010 43340-09010 / Lower Ball Joint

HIGHLANDER HYBRID; LEFT

$65.44 $47.99
15 48068-0E010 48068-0E010 / Control Arm

Lower Control Arm

HIGHLANDER HYBRID; RIGHT

$253.65 $186.04
15 48069-0E010 48069-0E010 / Control Arm

Lower Control Arm

HIGHLANDER HYBRID; LEFT

$253.65 $186.04
16 48811-48060 48811-48060 / Stabilizer Bar

HIGHLANDER HYBRID

$126.65 $92.89
17 48824-0E010 48824-0E010 / Stabilizer Bar Bracket

Mounting Bracket

HIGHLANDER HYBRID

$28.13 $20.63
18 48815-0E010 48815-0E010 / Stabilizer Bar Bushing

Bushings

HIGHLANDER HYBRID

$14.85 $10.89
19 48820-06040 48820-06040 / Stabilizer Link

Link

HIGHLANDER HYBRID

$82.06 $60.18
No. Part # Part # / Description List Price Price
N/A 51227-48040 51227-48040 / Damper

REAR

$94.44 $69.27
No. Part # Part # / Description List Price Price
N/A 51227-48090 51227-48090 / Damper

FRONT

$98.67 $72.37
