FRONT SUSPENSION/DRIVE AXLES for 2006 Toyota Highlander

Select DRIVE AXLES Part

2006 Toyota Highlander

Change vehicle

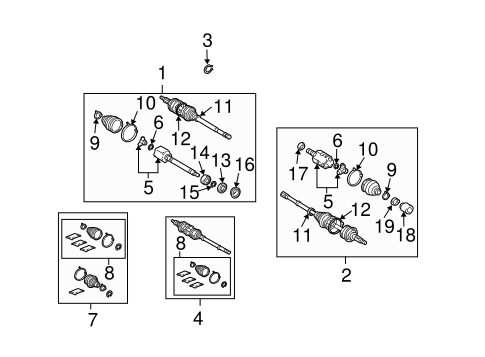

FRONT SUSPENSION/DRIVE AXLES for 2006 Toyota Highlander #1
No. Part # Part # / Description List Price Price
1 43410-0W160 43410-0W160 / Axle Assembly

Axle Assembly, RIGHT

$615.47 $451.42
2 43420-0W190 43420-0W190 / Axle Assembly

Axle Assembly, LEFT

$490.17 $359.52
3 90521-78002 90521-78002 / Axle Assembly Snap Ring

Axle Assembly Retainer Ring, RIGHT

PASSENGER SIDE

$3.65 $2.67
4 43470-09J00 43470-09J00 / Shaft & Joint Assembly

Outer Joint, LEFT

$267.09 $195.90
4 43460-09E21 43460-09E21 / Shaft & Joint Assembly

Outer Joint, RIGHT

$235.28 $172.57
5 43040-0W020 43040-0W020 / Inner Cv Joint

Inner Joint, LEFT

$392.60 $287.96
5 43030-0W030 43030-0W030 / Inner Cv Joint

Inner Joint, RIGHT

$491.64 $360.60
6 43425-08040 43425-08040 / Inner Joint Snap Ring

Inner Joint Snap Ring, RIGHT

$0.89 $0.66
6 43425-08040 43425-08040 / Inner Joint Snap Ring

Inner Joint Snap Ring, LEFT

$0.89 $0.66
7 04427-08050 04427-08050 / Boot Kit

Boot Kit, RIGHT

INNER & OUTER

- -
7 04428-08060 04428-08060 / Boot Kit

Boot Kit, LEFT

INNER & OUTER

$53.74 $39.42
8 04438-08020 04438-08020 / Inner Boot

Boot Kit, LEFT

INNER ONLY

$30.56 $22.41
8 04438-08010 04438-08010 / Inner Boot

Boot Kit, RIGHT

INNER ONLY

$30.56 $22.41
9 42345-08070 42345-08070 / Boot Kit Clamp

Boot Kit Clamp, RIGHT

INNER BOOT, SMALL

$6.64 $4.87
9 42345-08070 42345-08070 / Boot Kit Clamp

Boot Kit Clamp, LEFT

INNER BOOT, SMALL

$6.64 $4.87
10 42345-08060 42345-08060 / Boot Kit Clamp

Boot Kit Clamp, LEFT

INNER BOOT, LARGE

$7.50 $5.50
10 42345-08060 42345-08060 / Boot Kit Clamp

Boot Kit Clamp, RIGHT

INNER BOOT, LARGE

$7.50 $5.50
11 42345-04030 42345-04030 / Boot Kit Clamp

Boot Kit Clamp, RIGHT

OUTER BOOT, SMALL

$4.80 $3.51
11 42345-04030 42345-04030 / Boot Kit Clamp

Boot Kit Clamp, LEFT

OUTER BOOT, SMALL

$4.80 $3.51
12 42345-04040 42345-04040 / Boot Kit Clamp

Boot Kit Clamp, LEFT

OUTER BOOT, LARGE

$6.64 $4.87
12 42345-04040 42345-04040 / Boot Kit Clamp

Boot Kit Clamp, RIGHT

OUTER BOOT, LARGE

$6.64 $4.87
13 43458-06020 43458-06020 / Bearing Dust Shield

Dust Seal, LEFT

$17.47 $12.81
13 43458-06020 43458-06020 / Bearing Dust Shield

Dust Seal, RIGHT

$17.47 $12.81
14 90080-36133 90080-36133 / Front Wheel Bearing

Bearing, RIGHT

PASSENGER SIDE

$31.63 $23.20
15 90080-52017 90080-52017 / Snap Ring

Bearing Snap Ring, LEFT

$2.73 $2.00
15 90080-52013 90080-52013 / Bearing Snap Ring

Bearing Snap Ring, RIGHT

$2.73 $2.00
16 41336-06020 41336-06020 / Dust Cover

Dust Cover, RIGHT

$27.07 $19.85
17 41336-07010 41336-07010 / Dust Cover

Dust Cover, LEFT

$27.07 $19.85
18 43474-0W030 43474-0W030 / Damper

Damper, RIGHT

$61.54 $45.14
18 43474-0E010 43474-0E010 / Damper

Damper, LEFT

$73.78 $54.12
19 42345-06100 42345-06100 / Damper Clamp

Damper Clamp, LEFT

$1.55 $1.13
19 42345-06100 42345-06100 / Damper Clamp

Damper Clamp, RIGHT

$1.55 $1.13
