COOLING SYSTEM/RADIATOR & COMPONENTS for 2006 Toyota Highlander

Select RADIATOR & COMPONENTS Part

2006 Toyota Highlander

Change vehicle

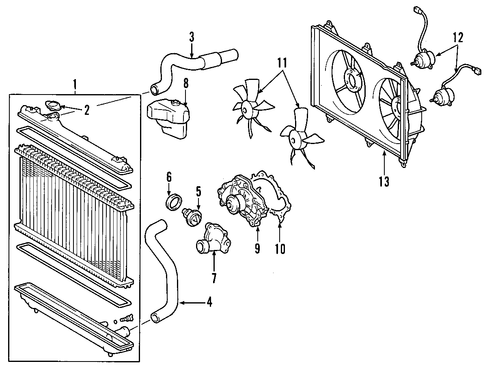

COOLING SYSTEM/RADIATOR & COMPONENTS for 2006 Toyota Highlander #1
No. Part # Part # / Description List Price Price
layer_17 16323-20020 16323-20020 / Thermostat Housing

HIGHLANDER HYBRID

$136.54 $100.14
layer_1 87200-48020 87200-48020 / Auxiliary Pump

HIGHLANDER HYBRID; W/O REAR HEATER

$753.36 $552.56
layer_1 87200-48050 87200-48050 / Auxiliary Pump

HIGHLANDER HYBRID; W/REAR HEATER

- -
1 16041-20354 16041-20354 / Radiator Assembly

Radiator

HIGHLANDER HYBRID; FROM 9/05

$388.37 $284.86
1 16041-20351 16041-20351 / Radiator

HIGHLANDER HYBRID; TO 9/05

$530.07 $388.78
3 16571-20091 16571-20091 / Upper Hose

HIGHLANDER HYBRID

$20.90 $15.32
4 16572-20121 16572-20121 / Lower Hose

HIGHLANDER HYBRID

$20.90 $15.32
5 90916-A3003 90916-A3003 / Thermostat

HIGHLANDER HYBRID

$24.02 $17.62
6 16325-62010 16325-62010 / Thermostat Gasket

HIGHLANDER HYBRID

$6.44 $4.72
7 16321-20030 16321-20030 / Thermostat Hsng

Water Inlet

HIGHLANDER HYBRID

$64.73 $47.48
9 16100-29085 16100-29085 / Water Pump Assembly

Water Pump

HIGHLANDER HYBRID

$150.70 $110.53
10 16271-20020 16271-20020 / Water Pump Assembly Gasket

Gasket

HIGHLANDER HYBRID

$8.70 $6.38
11 16361-20230 16361-20230 / Fan Blade

HIGHLANDER HYBRID; LEFT

$81.26 $59.61
11 16361-20220 16361-20220 / Fan Blade

HIGHLANDER HYBRID; RIGHT

$58.46 $42.88
12 16363-20400 16363-20400 / Fan Motor

HIGHLANDER HYBRID

$244.40 $179.25
13 16711-20171 16711-20171 / Fan Shroud

HIGHLANDER HYBRID

$121.83 $89.35

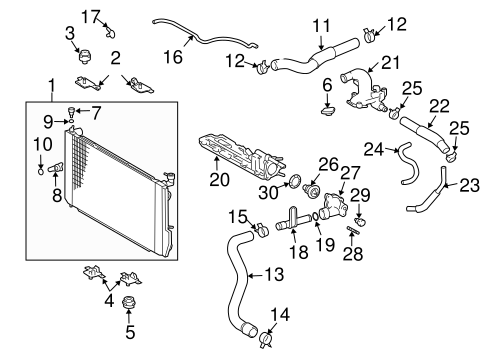

No. Part # Part # / Description List Price Price
1 16041-20354 16041-20354 / Radiator Assembly

$388.37 $284.86
2 16505-20090 16505-20090 / Upper Bracket

Upper Bracket, RIGHT

- -
2 16505-20100 16505-20100 / Upper Bracket

Upper Bracket, LEFT

- -
3 16523-20020 16523-20020 / Upper Insulator

Upper Insulator, RIGHT

$9.48 $6.95
3 16523-20020 16523-20020 / Upper Insulator

Upper Insulator, LEFT

$9.48 $6.95
4 16506-20050 16506-20050 / Lower Bracket

Lower Bracket, RIGHT

- -
4 16506-20060 16506-20060 / Lower Bracket

Lower Bracket, LEFT

- -
5 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator

Mount Cushion, LEFT

$9.37 $6.87
5 16535-0A090 16535-0A090 / Radiator Assembly Lower Insulator

Mount Cushion, RIGHT

$9.37 $6.87
6 16401-20353 16401-20353 / Cap

Radiator Cap

$14.96 $10.98
7 16417-20290 16417-20290 / Radiator Assembly Plug

Drain Plug

UPPER

$5.95 $4.37
8 16417-20300 16417-20300 / Drain Plug

LOWER

- -
9 16418-20290 16418-20290 / Drain Plug Upper Seal

$2.56 $1.88
10 96711-19007 96711-19007 / Radiator Assembly Seal

Drain Plug Lower Seal

$3.48 $2.55
11 16571-20090 16571-20090 / Upper Hose

- -
12 90466-35001 90466-35001 / Hose Clamp

Upper Hose Clamp

$9.28 $6.81
13 16572-20120 16572-20120 / Lower Hose

- -
14 90466-41006 90466-41006 / Lower Hose Clamp

#1

$9.97 $7.31
15 90466-35001 90466-35001 / Hose Clamp

Lower Hose Clamp

#2

$9.28 $6.81
16 16377-20140 16377-20140 / Overflow Hose

- -
17 90069-19014 90069-19014 / Reservoir Hose Clamp

Overflow Hose Clamp

$1.35 $0.99
18 16322-0A030 16322-0A030 / Inlet Pipe

$45.28 $33.21
19 96761-35031 96761-35031 / Water Inlet Tube O-Ring

Inlet Pipe O-Ring

$3.99 $2.93
20 16323-20020 16323-20020 / Thermostat Housing

Water Inlet

$136.54 $100.14
21 16331-20080 16331-20080 / Water Outlet

$110.71 $81.20
22 16261-20010 16261-20010 / By-Pass Hose

#1

$19.68 $14.43
23 16267-20050 16267-20050 / By-Pass Hose

#2

$6.89 $5.05
24 16264-20050 16264-20050 / By-Pass Hose

#3

$6.89 $5.05
25 90467-28007 90467-28007 / Air Inlet Hose Clamp

By-Pass Hose Clamp

$4.65 $3.42
26 90916-A3003 90916-A3003 / Thermostat

$24.02 $17.62
27 16321-20030 16321-20030 / Thermostat Hsng

$64.73 $47.48
28 90080-11541 90080-11541 / Thermostat Hsng Stud

$1.06 $0.78
29 90341-16094 90341-16094 / Thermostat Hsng Plug

$9.83 $7.21
30 16325-62010 16325-62010 / Thermostat Gasket

Thermostat Hsng Gasket

$6.44 $4.72
