BRAKES/ANTI-LOCK BRAKES for 2006 Toyota Highlander

Select ANTI-LOCK BRAKES Part

2006 Toyota Highlander

Change vehicle

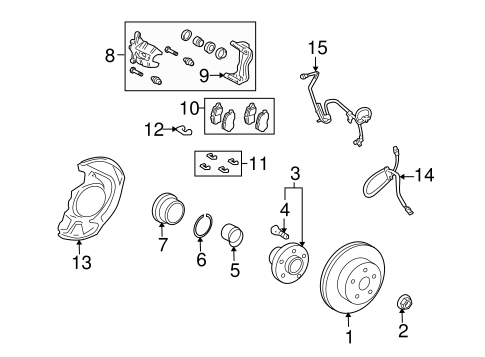

No. Part # Part # / Description List Price Price
1 43512-48081 43512-48081 / Rotor

Rotor, LEFT

$92.02 $67.49
1 43512-48081 43512-48081 / Rotor

Rotor, RIGHT

$92.02 $67.49
1 43512-48081 43512-48081 / Rotor

HIGHLANDER HYBRID

$92.02 $67.49
2 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

$9.40 $6.89
2 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

$9.40 $6.89
3 43502-AA021 43502-AA021 / Hub Assembly

Hub, RIGHT

$156.43 $114.74
3 43502-AA021 43502-AA021 / Hub Assembly

Hub, LEFT

$156.43 $114.74
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

$4.25 $3.12
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

$4.25 $3.12
5 90080-36193 90080-36193 / Bearing

Bearing, LEFT

$104.73 $76.81
5 90080-36193 90080-36193 / Bearing

Bearing, RIGHT

$104.73 $76.81
6 90520-77001 90520-77001 / Bearing Snap Ring

Bearing Snap Ring, RIGHT

$6.47 $4.75
6 90520-77001 90520-77001 / Bearing Snap Ring

Bearing Snap Ring, LEFT

$6.47 $4.75
7 43246-28020 43246-28020 / Wheel Bearing Dust Shield

Bearing Dust Shield, LEFT

$17.21 $12.63
7 43246-28020 43246-28020 / Wheel Bearing Dust Shield

Bearing Dust Shield, RIGHT

$17.21 $12.63
8 47730-48060 47730-48060 / Caliper

Caliper, RIGHT

$372.34 $273.10
8 47750-48060 47750-48060 / Caliper

Caliper, LEFT

$372.34 $273.10
9 47721-48061 47721-48061 / Caliper Mount

Caliper Mount, LEFT

$159.87 $117.25
9 47721-48061 47721-48061 / Caliper Mount

Caliper Mount, RIGHT

$159.87 $117.25
10 04465-48100 04465-48100 / Brake Pads

$62.99 $46.23
10 04465-48100 04465-48100 / Brake Pads

Front Pads

HIGHLANDER HYBRID

$62.99 $46.23
11 04947-48050 04947-48050 / Brake Pads Clip

Brake Pads Clip, LEFT

$14.71 $10.78
11 04947-48050 04947-48050 / Brake Pads Clip

Brake Pads Clip, RIGHT

$14.71 $10.78
12 47717-48050 47717-48050 / Brake Pads Plate

Brake Pads Plate, RIGHT

$6.78 $4.98
12 47717-48050 47717-48050 / Brake Pads Plate

Brake Pads Plate, LEFT

$6.78 $4.98
13 47781-0E010 47781-0E010 / Splash Shield

Splash Shield, RIGHT

$41.26 $30.27
13 47782-0E010 47782-0E010 / Splash Shield

Splash Shield, LEFT

$41.26 $30.27
13 47781-0E010 47781-0E010 / Splash Shield

HIGHLANDER HYBRID; RIGHT

$41.26 $30.27
13 47782-0E010 47782-0E010 / Splash Shield

HIGHLANDER HYBRID; LEFT

$41.26 $30.27
14 90947-02F64 90947-02F64 / Brake Hose

Brake Hose, RIGHT

$69.42 $50.91
14 90947-02F65 90947-02F65 / Brake Hose

Brake Hose, LEFT

$69.42 $50.91
14 90947-02F65 90947-02F65 / Brake Hose

Flex Hose

HIGHLANDER HYBRID; LEFT

$69.42 $50.91
14 90947-02F64 90947-02F64 / Brake Hose

Flex Hose

HIGHLANDER HYBRID; RIGHT

$69.42 $50.91
15 89543-48030 89543-48030 / Speed Sensor

Speed Sensor, LEFT

$273.73 $200.78
15 89542-48030 89542-48030 / Speed Sensor

Speed Sensor, RIGHT

$273.73 $200.78
15 89543-48030 89543-48030 / Speed Sensor

HIGHLANDER HYBRID; FRONT; LEFT

$273.73 $200.78

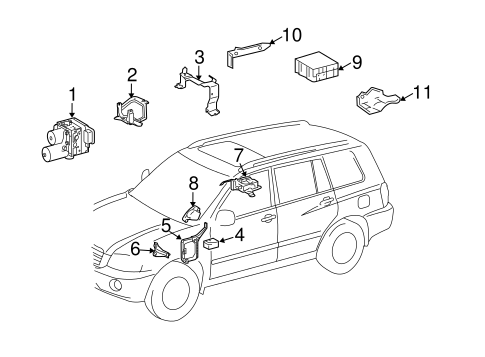

No. Part # Part # / Description List Price Price
1 44050-48191 44050-48191 / Modulator Valve

Actuator

$1,764.25 $1,294.01
1 44050-48191 44050-48191 / Modulator Valve

HIGHLANDER HYBRID

$1,764.25 $1,294.01
2 44590-48120 44590-48120 / Actuator Upper Bracket

$60.48 $44.36
3 44590-48140 44590-48140 / Actuator Lower Bracket

$61.54 $45.14
4 86652-04010 86652-04010 / Buzzer Switch

Warning Buzzer

$56.60 $41.52
5 89540-48360 89540-48360 / Control Module

Computer

SKID CONTROL

$1,821.36 $1,555.26
5 89540-48360 89540-48360 / Control Module

HIGHLANDER HYBRID

$1,821.36 $1,555.26
6 89539-48050 89539-48050 / Computer Bracket

$24.08 $17.67
7 89180-48020 89180-48020 / Sensor

YAW RATE

$456.27 $334.66
7 89180-48020 89180-48020 / Sensor

Yaw Rate Sensor

HIGHLANDER HYBRID

$456.27 $334.66
8 89510-47010 89510-47010 / Pedal Travel Sensor

Sensor

BRAKE PEDAL

$191.36 $140.35
8 89510-47010 89510-47010 / Pedal Travel Sensor

HIGHLANDER HYBRID

$191.36 $140.35
9 89680-33010 89680-33010 / Control Module

BRAKE CONTROL

$490.20 $359.55
10 89686-48020 89686-48020 / Control Module Bracket

Control Module Bracket, RIGHT

$13.53 $9.93
11 89686-48030 89686-48030 / Control Module Bracket

Control Module Bracket, LEFT

$15.43 $11.32
No. Part # Part # / Description List Price Price
1 42431-48041 42431-48041 / Rotor

Rotor, RIGHT

4WD

$80.97 $59.39
1 42431-48041 42431-48041 / Rotor

Rotor, LEFT

4WD

$80.97 $59.39
2 42450-0E010 42450-0E010 / Hub & Bearing Assembly

Hub & Bearing, RIGHT

4WD

$729.83 $535.30
2 42460-0E010 42460-0E010 / Hub & Bearing Assembly

Hub & Bearing, LEFT

4WD

$729.83 $535.30
3 90942-02049 90942-02049 / Wheel Stud

Hub & Bearing Wheel Stud, LEFT

4WD

$4.25 $3.12
3 90942-02049 90942-02049 / Wheel Stud

Hub & Bearing Wheel Stud, RIGHT

4WD

$4.25 $3.12
4 90080-10397 90080-10397 / Hub Assembly Bolt

Hub & Bearing Bolt, RIGHT

4WD

$5.37 $3.94
4 90080-10397 90080-10397 / Hub Assembly Bolt

Hub & Bearing Bolt, LEFT

4WD

$5.37 $3.94
5 89545-48030 89545-48030 / Speed Sensor

Speed Sensor, RIGHT

4WD

$273.73 $200.78
5 89546-48030 89546-48030 / Speed Sensor

Speed Sensor, LEFT

4WD

$273.73 $200.78
5 89546-48030 89546-48030 / Speed Sensor

HIGHLANDER HYBRID; REAR; LEFT; 4WD

$273.73 $200.78
5 89545-48030 89545-48030 / Speed Sensor

HIGHLANDER HYBRID; REAR; RIGHT; 4WD

$273.73 $200.78
6 47491-22020 47491-22020 / Rotor Plug

Plug, RIGHT

4WD

$3.10 $2.28
6 47491-22020 47491-22020 / Rotor Plug

Plug, LEFT

4WD

$3.10 $2.28
7 47830-48050 47830-48050 / Caliper

Caliper, RIGHT

4WD

$299.39 $219.59
7 47850-48050 47850-48050 / Caliper

Caliper, LEFT

4WD

$299.39 $219.59
7 47830-48050 47830-48050 / Caliper

HIGHLANDER HYBRID; RIGHT

$299.39 $219.59
8 47821-48050 47821-48050 / Caliper Mount

Caliper Mount, LEFT

4WD

$134.12 $98.37
8 47821-48050 47821-48050 / Caliper Mount

Caliper Mount, RIGHT

4WD

$134.12 $98.37
9 04466-48060 04466-48060 / Brake Pads

4WD

$65.00 $47.58
10 46504-48020 46504-48020 / Backing Plate

Backing Plate, LEFT

4WD

$313.53 $229.96
10 46503-48020 46503-48020 / Backing Plate

Backing Plate, RIGHT

4WD

$313.53 $229.96
11 90080-94207 90080-94207 / Brake Hose

Brake Hose, RIGHT

4WD

$80.48 $59.02
11 90080-94208 90080-94208 / Brake Hose

Brake Hose, LEFT

4WD

$80.48 $59.02
11 90080-94207 90080-94207 / Brake Hose

Flex Hose

HIGHLANDER HYBRID; 2WD; RIGHT

$80.48 $59.02
12 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

4WD

$9.40 $6.89
12 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

4WD

$9.40 $6.89
No. Part # Part # / Description List Price Price
layer_10 88263-32070 88263-32070 / Control Relay

Relay

HIGHLANDER HYBRID; SOLENOID RELAY

$41.03 $30.10
layer_15 89542-48020 89542-48020 / Speed Sensor

HIGHLANDER HYBRID; FRONT; RIGHT

$306.55 $224.83
No. Part # Part # / Description List Price Price
layer_8 88263-21010 88263-21010 / Relay Box Relay

Relay

HIGHLANDER HYBRID; MOTOR RELAY

$64.36 $47.20
