BODY/STRUCTURAL COMPONENTS & RAILS for 2006 Toyota Highlander

Select STRUCTURAL COMPONENTS & RAILS Part

2006 Toyota Highlander

Change vehicle

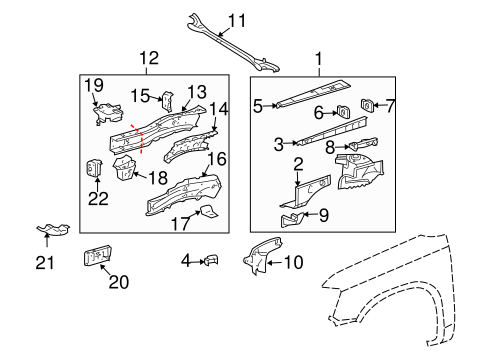

No. Part # Part # / Description List Price Price
1 53701-48051 53701-48051 / Apron Assembly

Apron Assembly, RIGHT

- -
1 53702-48020 53702-48020 / Apron Assembly

Apron Assembly, LEFT

- -
2 53712-48020 53712-48020 / Front Panel

Front Panel, LEFT

$114.79 $84.19
2 53711-48021 53711-48021 / Front Panel

Front Panel, RIGHT

$130.65 $95.82
3 53734-48010 53734-48010 / Reinforced

Upper Reinforced, LEFT

$70.39 $51.63
3 53733-48010 53733-48010 / Reinforced

Upper Reinforced, RIGHT

$70.39 $51.63
4 53743-48010 53743-48010 / Lower Reinforced

Lower Reinforced, RIGHT

PASSENGER SIDE

$7.33 $5.37
5 53731-48020 53731-48020 / Upper Rail

Upper Rail, RIGHT

$84.53 $62.00
5 53732-48020 53732-48020 / Upper Rail

Upper Rail, LEFT

$84.53 $62.00
6 55722-48030 55722-48030 / Inner Brace

Upper Rail Brace, LEFT

$7.84 $5.76
6 55721-48010 55721-48010 / Inner Brace

Upper Rail Brace, RIGHT

$7.84 $5.76
7 55723-48020 55723-48020 / Inner Reinforced

Upper Rail Reinforcement, RIGHT

$12.90 $9.47
7 55724-48020 55724-48020 / Inner Reinforced

Upper Rail Reinforcement, LEFT

$12.90 $9.47
8 53718-48020 53718-48020 / Lower Rail Gusset

Gusset, LEFT

UPPER

$47.03 $34.50
8 53717-48020 53717-48020 / Lower Rail Gusset

Gusset, RIGHT

UPPER

$47.03 $34.50
9 53737-48040 53737-48040 / Gusset

Gusset, RIGHT

LOWER

$35.11 $25.75
9 53738-0E010 53738-0E010 / Gusset

Gusset, LEFT

LOWER

$41.81 $30.66
10 53736-07021 53736-07021 / Splash Guard

Seal, RIGHT

FROM 2/06

$64.02 $46.96
10 53737-48030 53737-48030 / Seal

Seal, LEFT

TO 2/06

$38.90 $28.54
10 53736-33030 53736-33030 / Seal

Seal, RIGHT

TO 2/06

$65.42 $47.98
11 53681-48030 53681-48030 / Support Brace

Center Brace

$167.31 $122.71
12 57027-0E906 57027-0E906 / Rail Assembly

Rail Assembly, RIGHT

$778.90 $571.29
12 57028-48907 57028-48907 / Rail Assembly

Rail Assembly, LEFT

$1,032.52 $757.32
13 57112-0E010 57112-0E010 / Inner Rail

Inner Rail, LEFT

$382.97 $280.89
13 57111-0E010 57111-0E010 / Inner Rail

Inner Rail, RIGHT

$382.97 $280.89
14 57016-0E010 57016-0E010 / Inner Rail Reinforcement

Inner Rail Reinforcement, RIGHT

#1

$118.35 $86.80
14 57017-0E010 57017-0E010 / Inner Rail Reinforcement

Inner Rail Reinforcement, LEFT

#1

$118.35 $86.80
15 57151-0E010 57151-0E010 / Inner Rail Reinforcement

Inner Rail Reinforcement, RIGHT

#2

$20.28 $14.88
15 57152-0E010 57152-0E010 / Inner Rail Reinforcement

Inner Rail Reinforcement, LEFT

#2

$20.28 $14.88
16 57115-0E010 57115-0E010 / Rail Front Plate

Inner Rail Front Plate, RIGHT

$188.57 $138.31
16 57116-0E010 57116-0E010 / Rail Front Plate

Inner Rail Front Plate, LEFT

$188.57 $138.31
17 57249-06010 57249-06010 / Side Plate Bracket

Inner Rail Bracket, LEFT

BRAKE HOSE

$8.27 $6.06
17 57249-06010 57249-06010 / Side Plate Bracket

Inner Rail Bracket, RIGHT

BRAKE HOSE

$8.27 $6.06
18 57105-06010 57105-06010 / Mount Bracket

Suspension Support, RIGHT

$106.11 $77.82
18 57106-0E010 57106-0E010 / Mount Bracket

Suspension Support, LEFT

$118.35 $86.80
19 53704-0E050 53704-0E050 / Support Bracket

Support, LEFT

BATTERY

$64.36 $47.20
20 57114-0E010 57114-0E010 / Outer Rail Extension

Front Extension, LEFT

$71.40 $52.37
20 57113-0E010 57113-0E010 / Outer Rail Extension

Front Extension, RIGHT

$71.40 $52.37
21 57163-0E010 57163-0E010 / Reinforced Bracket

Front Reinforced, RIGHT

$56.03 $41.09
21 57164-0E010 57164-0E010 / Reinforced Bracket

Front Reinforced, LEFT

$56.03 $41.09
22 57021-0E011 57021-0E011 / Bumper Bracket

Bumper Bracket, RIGHT

$66.14 $48.51
22 57022-0E011 57022-0E011 / Bumper Bracket

Bumper Bracket, LEFT

$76.74 $56.29
