COOLING SYSTEM/RADIATOR & COMPONENTS for 2006 Toyota Corolla

Select RADIATOR & COMPONENTS Part

2006 Toyota Corolla

Change vehicle

COOLING SYSTEM/RADIATOR & COMPONENTS for 2006 Toyota Corolla #1
No. Part # Part # / Description List Price Price
N/A 16325-62010 16325-62010 / Thermostat Gasket

Gasket

COROLLA

$6.35 $4.76
N/A 90080-87010 90080-87010 / Relay Box Relay

Fan Relay

COROLLA

$28.85 $21.64
1 16400-0D240 16400-0D240 / Radiator Assembly

Radiator

COROLLA

$423.90 $317.93
6 16321-22070 16321-22070 / Thermostat Housing

COROLLA

$18.04 $13.53
7 16100-29146 16100-29146 / Water Pump

COROLLA; ALL; W/O XRS

$144.50 $108.38
8 90916-A3003 90916-A3003 / Thermostat

COROLLA

$24.05 $18.04
8 90301-69006 90301-69006 / Water Pump Assembly Gasket

Gasket

COROLLA; W/O XRS

$4.97 $3.73
9 16361-0D090 16361-0D090 / Fan Blade

COROLLA; MANUAL TRANS

$72.53 $54.40
9 16361-0D100 16361-0D100 / Fan Blade

COROLLA; AUTO TRANS

$72.53 $54.40
10 16363-0D100 16363-0D100 / Fan Motor

COROLLA

$195.92 $146.94
11 16711-0D072 16711-0D072 / Fan Shroud

COROLLA

$103.32 $77.49

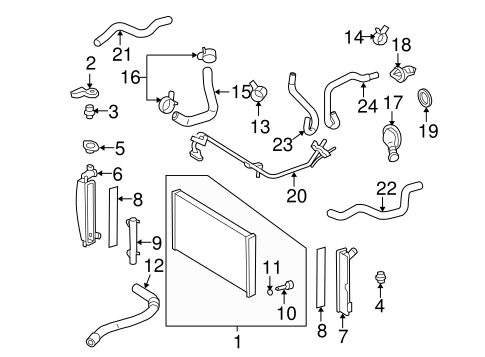

No. Part # Part # / Description List Price Price
1 16400-0D230 16400-0D230 / Radiator Assembly

WARRANTY, MANUAL TRANS

$353.78 $265.34
1 16410-AZ001 16410-AZ001 / Radiator Assembly Mvp

Radiator Assembly

SERVICE, AUTO TRANS

$102.68 $77.01
1 16400-0D240 16400-0D240 / Radiator Assembly

WARRANTY, AUTO TRANS

$423.90 $317.93
2 16533-0D030 16533-0D030 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, RIGHT

$21.81 $16.36
2 16533-0D030 16533-0D030 / Radiator Assembly Upper Bracket

Radiator Assembly Upper Bracket, LEFT

$21.81 $16.36
3 16523-0D030 16523-0D030 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, LEFT

$4.65 $3.49
3 16523-0D030 16523-0D030 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, RIGHT

$4.65 $3.49
4 16535-21040 16535-21040 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, RIGHT

JAPAN BUILT

$15.72 $11.79
4 16535-21040 16535-21040 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, LEFT

JAPAN BUILT

$15.72 $11.79
4 16535-0D040 16535-0D040 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, LEFT

US BUILT

$15.69 $11.77
4 16535-0D040 16535-0D040 / Radiator Assembly Lower Bracket

Radiator Assembly Lower Bracket, RIGHT

US BUILT

$15.69 $11.77
5 16401-20353 16401-20353 / Cap

Radiator Cap

$14.82 $11.12
6 16461-0D250 16461-0D250 / Tank

Tank, RIGHT

AUTO TRANS

$145.36 $109.02
6 16461-0D230 16461-0D230 / Tank

Tank, RIGHT

MANUAL TRANS

$145.36 $109.02
7 16441-0D250 16441-0D250 / Tank

Tank, LEFT

AUTO TRANS

$143.95 $107.96
8 16462-0D250 16462-0D250 / Tank Seal

Tank Seal, RIGHT

$50.71 $38.03
8 16442-0D250 16442-0D250 / Tank Seal

Tank Seal, LEFT

$45.63 $34.22
9 16491-0D250 16491-0D250 / Oil Cooler

$360.71 $270.53
10 23322-54010 23322-54010 / Drain Plug

$7.44 $5.58
11 16492-21050 16492-21050 / Drain Plug O-Ring

Drain Plug Seal

$3.00 $2.25
12 16571-0D150 16571-0D150 / Upper Hose

$25.43 $19.07
13 90466-37002 90466-37002 / Hose Clamp

Upper Hose Clamp

FRONT

$9.14 $6.86
14 90467-33006 90467-33006 / Hose Clamp

Upper Hose Clamp

REAR

$5.11 $3.83
15 16572-0D120 16572-0D120 / Lower Hose

W/O XRS

$22.98 $17.24
16 90466-35001 90466-35001 / Hose Clamp

Lower Hose Clamp

$9.14 $6.86
17 16321-22070 16321-22070 / Thermostat Housing

Water Inlet

W/O XRS

$18.04 $13.53
18 90916-A3003 90916-A3003 / Thermostat

$24.05 $18.04
19 16325-62010 16325-62010 / Thermostat Gasket

Thermostat Seal

$6.35 $4.76
20 16268-22161 16268-22161 / By-Pass Pipe

ALL

$63.93 $47.95
21 87245-1E161 87245-1E161 / Heater Hose

OUTLET, JAPAN BUILT

$35.37 $26.53
21 87245-02510 87245-02510 / Heater Hose

OUTLET, US BUILT

$35.37 $26.53
22 87245-1E170 87245-1E170 / Heater Hose

INLET, JAPAN BUILT

$53.70 $40.28
22 87245-02500 87245-02500 / Heater Hose

INLET, US BUILT

$53.70 $40.28
23 16261-0D102 16261-0D102 / By-Pass Hose

UPPER

$7.51 $5.63
24 16264-0D102 16264-0D102 / By-Pass Hose

LOWER, W/O XRS

$16.76 $12.57
