FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2005 Toyota Tundra

Select FUEL SYSTEM COMPONENTS Part

2005 Toyota Tundra

Change vehicle

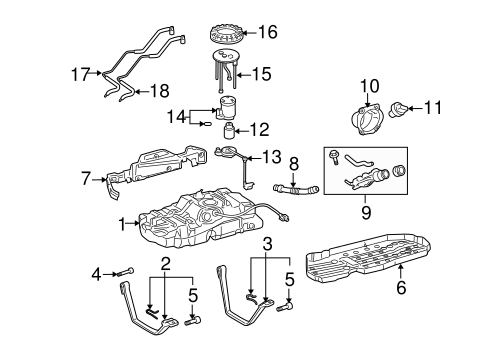

No. Part # Part # / Description List Price Price
1 77001-0C050 77001-0C050 / Fuel Tank

2005-06

- -
2 77601-0C020 77601-0C020 / Fuel Tank Strap

2005-06, FRONT, 4WD

$73.21 $53.69
2 77601-0C030 77601-0C030 / Fuel Tank Strap

2005-06, FRONT, 2WD

$73.21 $53.69
3 77603-0C020 77603-0C020 / Fuel Tank Strap

2005-06, REAR, 4WD

$93.04 $68.23
3 77603-0C030 77603-0C030 / Fuel Tank Strap

2005-06, REAR, 2WD

$93.04 $68.23
4 90240-10043 90240-10043 / Fuel Tank Pin

Fuel Tank Pin, RIGHT

2005-06

$3.99 $2.93
5 77653-0C020 77653-0C020 / Fuel Tank Pin

Fuel Tank Pin, LEFT

2005-06

- -
6 77161-0C040 77161-0C040 / Tank Shield

2005-06

$243.71 $178.75
7 77697-0C010 77697-0C010 / Protector

2005-06

$164.81 $120.88
8 77213-0C060 77213-0C060 / Filler Hose

2005-06, W/O STEP SIDE

$44.56 $32.68
8 77213-0C070 77213-0C070 / Filler Hose

2005-06, W/STEP SIDE

$47.03 $34.50
9 77201-0C070 77201-0C070 / Inlet Pipe

2005-06, W/STEP SIDE

$207.62 $152.28
9 77201-0C040 77201-0C040 / Inlet Pipe

2005-06, W/O STEP SIDE

$178.63 $131.02
10 77290-0C030 77290-0C030 / Fuel Pocket

2005-06, W/O STEP SIDE, W/O DOUBLE CAB

$37.50 $27.50
10 77290-0C020 77290-0C020 / Fuel Pocket

2005-06, W/STEP SIDE

$37.50 $27.50
11 77300-0E010 77300-0E010 / Fuel Cap

2005-06

- -
12 23221-0F020 23221-0F020 / Fuel Pump

2005-06

- -
13 23217-0F020 23217-0F020 / Fuel Strainer

2005-06

- -
14 23300-0F010 23300-0F010 / Fuel Filter

2005-06

- -
15 77024-0C010 77024-0C010 / Suction Tube

2005-06

- -
16 77144-08010 77144-08010 / Retainer

2005-06

$58.70 $43.05
17 77209-0C040 77209-0C040 / Fuel Pump Tube

Tube

2005-06, MAIN

$29.08 $21.33
18 77204-0C020 77204-0C020 / Tube

2005-06, RETURN

$28.39 $20.83
No. Part # Part # / Description List Price Price
layer_8 90080-87010 90080-87010 / Relay Box Relay

Relay

COMPUTER RELAY; TUNDRA

$29.19 $21.41
layer_10 90084-98032 90084-98032 / Fuel Pump Relay

TUNDRA

$56.23 $41.24
N/A 23209-39075 23209-39075 / Injector

TUNDRA; 4.0L; AISAN

$161.64 $118.56
No. Part # Part # / Description List Price Price
N/A 78120-0C050 78120-0C050 / Pedal Travel Sensor

TUNDRA; 4.0L

$502.24 $368.37
N/A 23807-0P010 23807-0P010 / Fuel Rail

TUNDRA; 4.0L

$125.56 $92.10
N/A 23280-31010 23280-31010 / Fuel Pressure Regulator

TUNDRA; 4.0L

$150.67 $110.51
