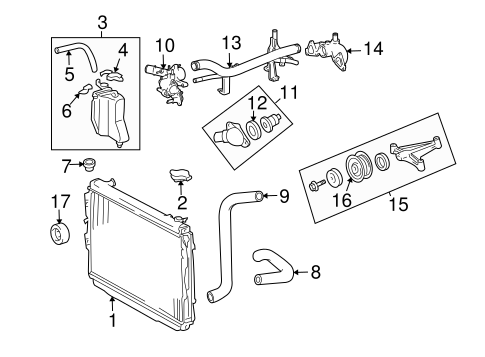

COOLING SYSTEM/RADIATOR & COMPONENTS for 2005 Toyota Tundra

Select RADIATOR & COMPONENTS Part

2005 Toyota Tundra

Change vehicle

No. Part # Part # / Description List Price Price
1 16410-0P010 16410-0P010 / Radiator Assembly

4.0 LITER, WARRANTY, MANUAL TRANS

- -
1 16410-0P020 16410-0P020 / Radiator Assembly

4.0 LITER, WARRANTY, AUTO TRANS

- -
1 16410-YZZAV 16410-YZZAV / Radiator Assembly

4.0 LITER, SERVICE

$411.67 $301.34
2 16401-20353 16401-20353 / Cap

Radiator Cap

4.0 LITER

$14.96 $10.98
3 16470-07042 16470-07042 / Reservoir Assembly

4.0 LITER

$96.49 $70.77
4 16471-03010 16471-03010 / Reservoir Cap

4.0 LITER

$5.63 $4.12
5 90080-44115 90080-44115 / Overflow Hose

4.0 LITER

- -
6 90080-46090 90080-46090 / Overflow Hose Clamp

4.0 LITER

$1.78 $1.31
7 90480-25025 90480-25025 / Reservoir Grommet

Overflow Hose Grommet

4.0 LITER

$10.54 $7.73
8 16571-0P010 16571-0P010 / Upper Hose

4.0 LITER

$21.57 $15.81
9 16572-0P010 16572-0P010 / Lower Hose

4.0 LITER

$35.27 $25.88
10 16320-31021 16320-31021 / Water Inlet

4.0 LITER

$162.71 $119.34
11 16031-0P010 16031-0P010 / Water Inlet

Thermostat Hsng

4.0 LITER, W/THERMOSTAT

$42.75 $31.35
12 16326-31020 16326-31020 / Gasket

Thermostat Hsng Gasket

4.0 LITER

$1.15 $0.84
13 16306-AD011 16306-AD011 / Water Outlet

4.0 LITER

$66.14 $48.51
14 16356-31011 16356-31011 / By-Pass Pipe

4.0 LITER

$78.53 $57.60
15 16630-31010 16630-31010 / Pulley Assembly

4.0 LITER

- -
16 16603-31020 16603-31020 / Idler Pulley

4.0 LITER, #1

$170.47 $125.03
17 16604-0P010 16604-0P010 / Idler Pulley

4.0 LITER, #2

$60.60 $44.44
17 16604-0P010 16604-0P010 / Idler Pulley

Serpentine Idler Pulley

TUNDRA; 4.0L

$60.60 $44.44

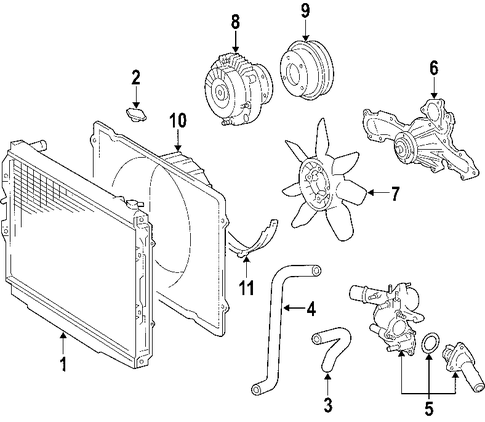

COOLING SYSTEM/RADIATOR & COMPONENTS for 2005 Toyota Tundra #2
No. Part # Part # / Description List Price Price
1 16400-0P010 16400-0P010 / Radiator

TUNDRA; MANUAL TRANS

$405.30 $297.27
1 16400-0P020 16400-0P020 / Radiator

TUNDRA; AUTO TRANS

$449.78 $329.89
5 16320-31021 16320-31021 / Water Inlet

Thermostat Housing

TUNDRA

$162.71 $119.34
7 16361-0P380 16361-0P380 / Fan Blade

TUNDRA

$128.44 $94.21
8 16210-0P010 16210-0P010 / Fan Clutch

TUNDRA

$176.96 $129.80
9 16371-0P010 16371-0P010 / Fan Pulley

Pulley

TUNDRA

$68.61 $50.33
10 16711-0P010 16711-0P010 / Fan Shroud

Shroud

TUNDRA

$117.75 $86.36
11 16712-07020 16712-07020 / Lower Shroud

Shield

TUNDRA

$22.78 $16.71
