BRAKES/ANTI-LOCK BRAKES for 2005 Toyota RAV4

Select ANTI-LOCK BRAKES Part

2005 Toyota RAV4

Change vehicle

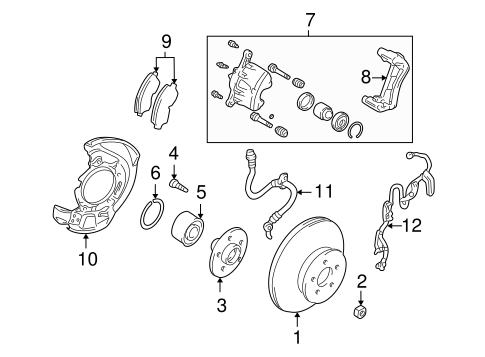

No. Part # Part # / Description List Price Price
1 43512-42032 43512-42032 / Rotor

Rotor, RIGHT

$80.08 $60.06
1 43512-42032 43512-42032 / Rotor

Rotor, LEFT

$80.08 $60.06
1 43512-42032 43512-42032 / Rotor

RAV4

$80.08 $60.06
2 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

$8.19 $6.14
2 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

$8.19 $6.14
3 43502-42020 43502-42020 / Front Hub

Hub, LEFT

$154.35 $115.76
3 43502-42020 43502-42020 / Front Hub

Hub, RIGHT

$154.35 $115.76
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

$4.17 $3.13
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

$4.17 $3.13
5 90369-43009 90369-43009 / Bearing

Wheel Bearing, LEFT

$82.92 $62.19
5 90369-43009 90369-43009 / Bearing

Wheel Bearing, RIGHT

$82.92 $62.19
6 90521-88001 90521-88001 / Snap Ring

Snap Ring, RIGHT

$6.95 $5.21
6 90521-88001 90521-88001 / Snap Ring

Snap Ring, LEFT

$6.95 $5.21
7 47730-42040 47730-42040 / Caliper Assembly

Caliper, RIGHT

$409.41 $307.06
7 47750-42040 47750-42040 / Caliper Assembly

Caliper, LEFT

$409.41 $307.06
7 47750-42040 47750-42040 / Caliper Assembly

RAV4; LEFT

$409.41 $307.06
7 47730-42040 47730-42040 / Caliper Assembly

RAV4; RIGHT

$409.41 $307.06
8 47721-42040 47721-42040 / Caliper Mount Bracket

Caliper Mount Bracket, LEFT

$139.29 $104.47
8 47721-42040 47721-42040 / Caliper Mount Bracket

Caliper Mount Bracket, RIGHT

$139.29 $104.47
9 04465-42130 04465-42130 / Brake Pads

$99.00 $74.25
9 04465-42130 04465-42130 / Brake Pads

Front Pads

RAV4

$99.00 $74.25
10 47781-42030 47781-42030 / Splash Shield

Splash Shield, RIGHT

$28.19 $21.14
10 47782-42030 47782-42030 / Splash Shield

Splash Shield, LEFT

$28.19 $21.14
11 90947-02C55 90947-02C55 / Brake Hose

Brake Hose, LEFT

$75.37 $56.53
11 90947-02C54 90947-02C54 / Flex Hose

Brake Hose, RIGHT

$75.37 $56.53
11 90947-02C55 90947-02C55 / Brake Hose

Flex Hose

RAV4; LEFT

$75.37 $56.53
11 90947-02C54 90947-02C54 / Flex Hose

RAV4; RIGHT

$75.37 $56.53
12 89543-42040 89543-42040 / Front Speed Sensor

ABS Sensor, LEFT

$267.44 $200.58
12 89542-42040 89542-42040 / Front Speed Sensor

ABS Sensor, RIGHT

$267.44 $200.58
12 89542-42040 89542-42040 / Front Speed Sensor

RAV4; RIGHT

$267.44 $200.58
12 89543-42040 89543-42040 / Front Speed Sensor

RAV4; LEFT

$267.44 $200.58
No. Part # Part # / Description List Price Price

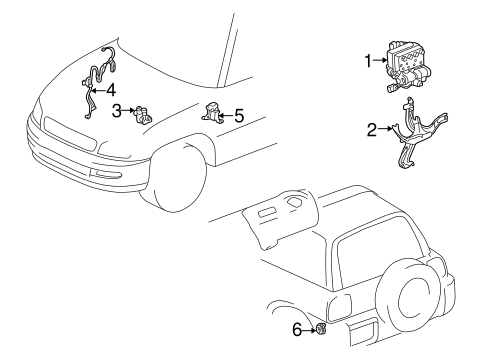

1 44050-42100 44050-42100 / Actuator Assembly

4WD, W/LIMITED SLIP

$2,204.92 $1,653.69
1 44050-42080 44050-42080 / Actuator Assembly

4WD, W/O LIMITED SLIP

$1,984.44 $1,488.33
1 44050-42110 44050-42110 / Actuator Assembly

2WD

- -
1 44050-42110 44050-42110 / Actuator Assembly

Modulator Valve

RAV4; 2WD; W/O STABILITY CONTROL

- -
1 44050-42080 44050-42080 / Actuator Assembly

Modulator Valve

RAV4; 4WD; W/O STABILITY CONTROL; W/O LIMITED SLIP

$1,984.44 $1,488.33
1 44050-42100 44050-42100 / Actuator Assembly

Modulator Valve

RAV4; 4WD; W/O STABILITY CONTROL; W/LIMITED SLIP

$2,204.92 $1,653.69
2 44590-42090 44590-42090 / Mount Bracket

W/VSC

$78.21 $58.66
2 44590-42040 44590-42040 / Mount Bracket

W/O VSC

$51.78 $38.84
3 47150-12250 47150-12250 / Pressure Metering Valve

Valve Assembly

$324.99 $243.74
3 47150-12250 47150-12250 / Pressure Metering Valve

RAV4; 4 DOOR; ALL

$324.99 $243.74
5 89440-42040 89440-42040 / Decel Sensor

$446.44 $334.83
5 89440-42040 89440-42040 / Decel Sensor

G-Sensor

RAV4; 4 DOOR

$446.44 $334.83
No. Part # Part # / Description List Price Price

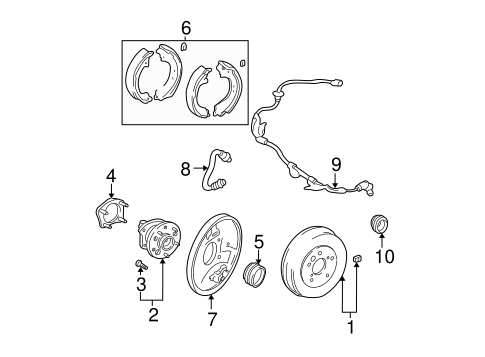

2 42410-42050 42410-42050 / Hub & Bearing

Hub & Bearing, LEFT

2 WHEEL DRIVE, W/O ABS

$318.58 $238.94
2 42410-42050 42410-42050 / Hub & Bearing

Hub & Bearing, RIGHT

2 WHEEL DRIVE, W/O ABS

$318.58 $238.94
2 42450-42030 42450-42030 / Hub & Bearing

Hub & Bearing, RIGHT

2 WHEEL DRIVE, W/ABS

$503.56 $377.67
2 42450-42030 42450-42030 / Hub & Bearing

Hub & Bearing, LEFT

2 WHEEL DRIVE, W/ABS

$503.56 $377.67
3 90942-02049 90942-02049 / Wheel Stud

Wheel Bolt, LEFT

2 WHEEL DRIVE

$4.17 $3.13
3 90942-02049 90942-02049 / Wheel Stud

Wheel Bolt, RIGHT

2 WHEEL DRIVE

$4.17 $3.13
4 42405-42010 42405-42010 / Bearing Retainer

Bearing Retainer, RIGHT

2 WHEEL DRIVE, W/ABS

$91.80 $68.85
4 42406-42010 42406-42010 / Bearing Retainer

Bearing Retainer, LEFT

2 WHEEL DRIVE, W/ABS

$91.80 $68.85
4 42423-42010 42423-42010 / Bearing Retainer

Bearing Retainer, RIGHT

2 WHEEL DRIVE, W/O ABS

$24.74 $18.56
4 42423-42010 42423-42010 / Bearing Retainer

Bearing Retainer, LEFT

2 WHEEL DRIVE, W/O ABS

$24.74 $18.56
6 04495-42080 04495-42080 / Brake Shoes

2 WHEEL DRIVE

$71.03 $53.27
6 04495-42080 04495-42080 / Brake Shoes

Rear Shoes

RAV4

$71.03 $53.27
7 47043-42030 47043-42030 / Backing Plate

Backing Plate, RIGHT

2 WHEEL DRIVE

$102.40 $76.80
7 47043-42030 47043-42030 / Backing Plate

RAV4; REAR DRUM; RIGHT

$102.40 $76.80
8 90947-02C53 90947-02C53 / Hose

Hose, LEFT

2 WHEEL DRIVE

$46.06 $34.55
8 90947-02C53 90947-02C53 / Hose

Hose, RIGHT

2 WHEEL DRIVE

$46.06 $34.55
8 90947-02C53 90947-02C53 / Hose

Flex Hose

RAV4

$46.06 $34.55
9 89545-42030 89545-42030 / Rear Speed Sensor

ABS Sensor, RIGHT

2 WHEEL DRIVE

$267.44 $200.58
9 89546-42030 89546-42030 / Rear Speed Sensor

ABS Sensor, LEFT

2 WHEEL DRIVE

$267.44 $200.58
9 89545-42030 89545-42030 / Rear Speed Sensor

RAV4; RIGHT; 4WD

$267.44 $200.58
9 89546-42030 89546-42030 / Rear Speed Sensor

RAV4; LEFT; 4WD

$267.44 $200.58
No. Part # Part # / Description List Price Price
N/A 89516-42030 89516-42030 / Rear Speed Sensor

RAV4; RIGHT; 2WD

$87.26 $65.45
N/A 89516-42040 89516-42040 / Rear Speed Sensor

RAV4; LEFT; 2WD

$87.26 $65.45
No. Part # Part # / Description List Price Price
N/A 44050-42161 44050-42161 / Modulator Valve

RAV4; 2WD; W/STABILITY CONTROL

$2,142.53 $1,606.90
