ELECTRICAL/HEADLAMP COMPONENTS for 2005 Toyota Prius

Select HEADLAMP COMPONENTS Part

2005 Toyota Prius

Change vehicle

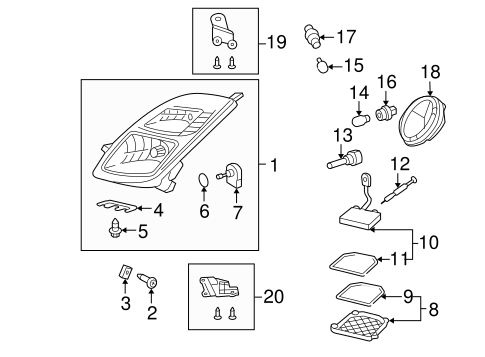

ELECTRICAL/HEADLAMP COMPONENTS for 2005 Toyota Prius #1
No. Part # Part # / Description List Price Price
1 81145-47110 81145-47110 / Composite Headlamp

Headlamp Assembly, RIGHT

W/AUTO LEVEL, W/HID

$376.97 $276.49
1 81185-47110 81185-47110 / Composite Headlamp

Headlamp Assembly, LEFT

W/AUTO LEVEL, W/HID

$376.97 $276.49
1 81145-47110 81145-47110 / Composite Headlamp

PRIUS; RIGHT; W/HID; TO 11/05

$376.97 $276.49
1 81185-47110 81185-47110 / Composite Headlamp

PRIUS; LEFT; W/HID; TO 11/05

$376.97 $276.49
2 90109-06122 90109-06122 / Bumper Cover Bolt

Headlamp Assembly Bolt, RIGHT

W/AUTO LEVEL, W/HID

$1.09 $0.81
3 90179-06127 90179-06127 / Bumper Cover U-Nut

Headlamp Assembly Nut, LEFT

W/AUTO LEVEL, W/HID

$1.09 $0.81
5 90075-02727 90075-02727 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

W/AUTO LEVEL, W/HID

$0.92 $0.67
6 90075-99120 90075-99120 / Leveling Motor Packing

Headlamp Assembly Packing, LEFT

W/AUTO LEVEL, W/HID

$3.62 $2.66
6 90075-99120 90075-99120 / Leveling Motor Packing

Headlamp Assembly Packing, RIGHT

W/AUTO LEVEL, W/HID

$3.62 $2.66
7 85661-22020 85661-22020 / Leveling Motor

Leveling Motor, RIGHT

W/AUTO LEVEL, W/HID

$138.35 $101.47
7 85661-22020 85661-22020 / Leveling Motor

Leveling Motor, LEFT

W/AUTO LEVEL, W/HID

$138.35 $101.47
7 85661-22020 85661-22020 / Leveling Motor

Headlamp Motor

HEADLAMP LEVELING MOTOR; PRIUS; TO 11/05

$138.35 $101.47
8 90075-67004 90075-67004 / Headlamp Cover

Headlamp Cover, LEFT

W/AUTO LEVEL, W/HID

$12.15 $8.92
8 90075-67004 90075-67004 / Headlamp Cover

Headlamp Cover, RIGHT

W/AUTO LEVEL, W/HID

$12.15 $8.92
9 90075-68001 90075-68001 / Socket Gasket

Headlamp Cover Gasket, RIGHT

W/AUTO LEVEL, W/HID

$9.94 $7.30
9 90075-68001 90075-68001 / Socket Gasket

Headlamp Cover Gasket, LEFT

W/AUTO LEVEL, W/HID

$9.94 $7.30
10 81107-51050 81107-51050 / Control Module

Control Module, RIGHT

W/AUTO LEVEL, W/HID

$329.67 $241.80
10 81107-51050 81107-51050 / Control Module

Control Module, LEFT

W/AUTO LEVEL, W/HID

$329.67 $241.80
10 81107-51050 81107-51050 / Control Module

PRIUS; TO 11/05

$329.67 $241.80
11 90075-68001 90075-68001 / Socket Gasket

Control Module Gasket, RIGHT

W/AUTO LEVEL, W/HID

$9.94 $7.30
11 90075-68001 90075-68001 / Socket Gasket

Control Module Gasket, LEFT

W/AUTO LEVEL, W/HID

$9.94 $7.30
12 81125-33460 81125-33460 / Wire Harness

Wire Harness, RIGHT

W/AUTO LEVEL, W/HID

$23.82 $17.47
12 81125-33460 81125-33460 / Wire Harness

Wire Harness, LEFT

W/AUTO LEVEL, W/HID

$23.82 $17.47
13 90981-20007 90981-20007 / Hid Bulb

Hid Bulb, RIGHT

W/AUTO LEVEL, W/HID

$175.00 $149.45
13 90981-20007 90981-20007 / Hid Bulb

Hid Bulb, LEFT

W/AUTO LEVEL, W/HID

$175.00 $149.45
13 90981-20007 90981-20007 / Hid Bulb

Headlamp Bulb

PRIUS; W/HID; TO 11/05

$175.00 $149.45
14 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, RIGHT

W/AUTO LEVEL, W/HID

$6.67 $4.89
15 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, RIGHT

W/AUTO LEVEL, W/HID

$1.04 $0.77
15 00234-00192 00234-00192 / Bulb

Park Lamp Bulb, LEFT

W/AUTO LEVEL, W/HID

$1.04 $0.77
15 00234-00192 00234-00192 / Bulb

Exterior Bulbs

PRIUS; LICENSE PLATE LAMP

$1.04 $0.77
17 90075-60046 90075-60046 / Socket

Socket, LEFT

W/AUTO LEVEL, W/HID, PARK LAMP BULB

$9.94 $7.30
17 90075-60046 90075-60046 / Socket

Socket, RIGHT

W/AUTO LEVEL, W/HID, PARK LAMP BULB

$9.94 $7.30
18 81135-47100 81135-47100 / Rear Cover

Rear Cover, LEFT

W/AUTO LEVEL, W/HID

$17.04 $12.49
18 81135-47100 81135-47100 / Rear Cover

Rear Cover, RIGHT

W/AUTO LEVEL, W/HID

$17.04 $12.49
19 81193-47020 81193-47020 / Repair Bracket

Repair Bracket, RIGHT

W/AUTO LEVEL, W/HID, UPPER

$15.00 $11.00
20 81195-47020 81195-47020 / Repair Bracket

Repair Bracket, RIGHT

W/AUTO LEVEL, W/HID, LOWER

$15.00 $11.00

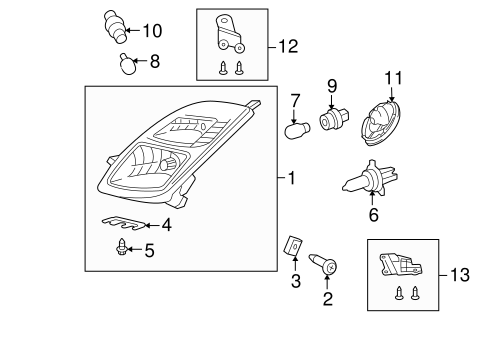

No. Part # Part # / Description List Price Price
1 81130-47070 81130-47070 / Composite Headlamp

Headlamp Assembly, RIGHT

W/O AUTO LEVEL, W/O HID

$192.51 $141.20
1 81170-47070 81170-47070 / Composite Headlamp

Headlamp Assembly, LEFT

W/O AUTO LEVEL, W/O HID

$192.51 $141.20
1 81130-47070 81130-47070 / Composite Headlamp

PRIUS; RIGHT; W/O HID; TO 11/05

$192.51 $141.20
1 81170-47070 81170-47070 / Composite Headlamp

PRIUS; LEFT; W/O HID; TO 11/05

$192.51 $141.20
2 90109-06122 90109-06122 / Bumper Cover Bolt

Headlamp Assembly Bolt, LEFT

W/O AUTO LEVEL, W/O HID

$1.09 $0.81
3 90179-06127 90179-06127 / Bumper Cover U-Nut

Headlamp Assembly Nut, RIGHT

W/O AUTO LEVEL, W/O HID

$1.09 $0.81
4 81118-47060 81118-47060 / Headlamp Assembly Mount Bracket

Headlamp Assembly Mount Bracket, RIGHT

W/O AUTO LEVEL, W/O HID

$17.01 $12.48
4 81158-47060 81158-47060 / Headlamp Assembly Mount Bracket

Headlamp Assembly Mount Bracket, LEFT

W/O AUTO LEVEL, W/O HID

$17.01 $12.48
5 90075-02727 90075-02727 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

W/O AUTO LEVEL, W/O HID

$0.92 $0.67
6 90084-98033 90084-98033 / Headlamp Bulb

Headlamp Bulb, RIGHT

W/O AUTO LEVEL, W/O HID

$30.00 $22.00
6 90084-98033 90084-98033 / Headlamp Bulb

Headlamp Bulb, LEFT

W/O AUTO LEVEL, W/O HID

$30.00 $22.00
6 90084-98033 90084-98033 / Headlamp Bulb

PRIUS; W/O HID

$30.00 $22.00
7 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, LEFT

W/O AUTO LEVEL, W/O HID

$6.67 $4.89
9 90075-60028 90075-60028 / Socket

Socket, LEFT

W/O AUTO LEVEL, W/O HID, SIGNAL BULB

$9.97 $7.31
9 90075-60028 90075-60028 / Socket

Socket, RIGHT

W/O AUTO LEVEL, W/O HID, SIGNAL BULB

$9.97 $7.31
11 81139-47060 81139-47060 / Rear Cover

Rear Cover, LEFT

W/O AUTO LEVEL, W/O HID

$15.49 $11.36
11 81139-47060 81139-47060 / Rear Cover

Rear Cover, RIGHT

W/O AUTO LEVEL, W/O HID

$15.49 $11.36
12 81194-47020 81194-47020 / Repair Bracket

Repair Bracket, LEFT

W/O AUTO LEVEL, W/O HID, UPPER

$15.00 $11.00
13 81196-47020 81196-47020 / Repair Bracket

Repair Bracket, LEFT

W/O AUTO LEVEL, W/O HID, LOWER

$15.00 $11.00

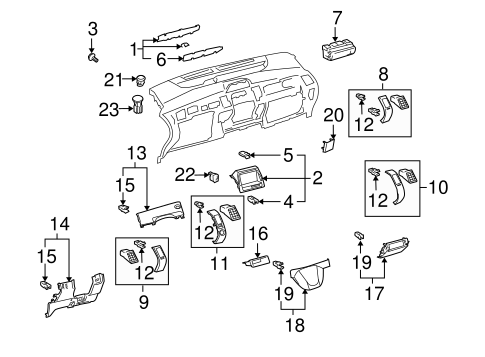

No. Part # Part # / Description List Price Price
1 55410-47050 55410-47050 / Cluster Panel

UPPER

$156.33 $114.67
2 55411-47030-C0 55411-47030-C0 / Cluster Panel

LOWER

$80.28 $58.88
3 93568-55014 93568-55014 / Center Pillar Trim Screw

Cluster Panel Screw

$0.11 $0.07
4 90467-12080 90467-12080 / Switch Bezel Clip

Cluster Panel Clip

#1

$1.03 $0.76
5 90468-05135 90468-05135 / Trim Panel Clip

Cluster Panel Clip

#2

$1.32 $0.96
6 83955-47020 83955-47020 / Lens

$98.32 $72.11
7 83950-47010 83950-47010 / Indicator

$63.30 $46.42
8 55660-47020 55660-47020 / Air Vent Grille

Air Vent Grille, RIGHT

OUTER

$182.16 $133.61
9 55650-47040 55650-47040 / Air Vent Grille

Air Vent Grille, LEFT

OUTER

$181.79 $133.33
10 55680-47020 55680-47020 / Air Vent Grille

Air Vent Grille, RIGHT

INNER

$198.43 $145.53
11 55670-47040 55670-47040 / Air Vent Grille

Air Vent Grille, LEFT

INNER

$198.43 $145.53
12 90467-10203 90467-10203 / Switch Bezel Clip

Air Vent Grille Clip

$1.03 $0.76
13 55044-47020-D0 55044-47020-D0 / Finish Panel

UPPER, RED

$131.57 $96.50
13 55044-47020-E0 55044-47020-E0 / Finish Panel

UPPER, BROWN

$131.57 $96.50
14 55045-47050-D1 55045-47050-D1 / Finish Panel

LOWER, RED

$204.78 $150.19
14 55045-47050-E1 55045-47050-E1 / Finish Panel

LOWER, BROWN

$204.78 $150.19
15 90467-10203 90467-10203 / Switch Bezel Clip

Finish Panel Clip

$1.03 $0.76
16 55521-16030 55521-16030 / Radio Cover

$33.96 $24.91
17 55420-47010 55420-47010 / Center Panel

UPPER

$127.69 $93.65
18 55434-47020-A0 55434-47020-A0 / Center Panel

LOWER, IVORY

- -
18 55434-47020-B0 55434-47020-B0 / Center Panel

LOWER, GRAY

$94.79 $69.53
19 90467-10203 90467-10203 / Switch Bezel Clip

Center Panel Clip

$1.03 $0.76
20 55432-47030-B0 55432-47030-B0 / Lower Panel

GRAY

$40.31 $29.57
20 55432-47030-A0 55432-47030-A0 / Lower Panel

IVORY

$40.31 $29.57
21 88625-47031 88625-47031 / Sunload Sensor

Thermistor

SOLAR SENSOR

$36.70 $26.91
21 88625-47031 88625-47031 / Sunload Sensor

PRIUS

$36.70 $26.91
22 88625-58020 88625-58020 / In-Car Sensor

Thermistor

TEMP SENSOR

$125.02 $91.70
22 88625-58020 88625-58020 / In-Car Sensor

PRIUS; TO 11/05

$125.02 $91.70
23 89121-12010 89121-12010 / Sensor

Light Sensor

$183.57 $134.64
23 89121-12010 89121-12010 / Sensor

Control Sensor

PRIUS

$183.57 $134.64
No. Part # Part # / Description List Price Price
layer_7 90987-02025 90987-02025 / Relay

PRIUS

$80.65 $59.16
