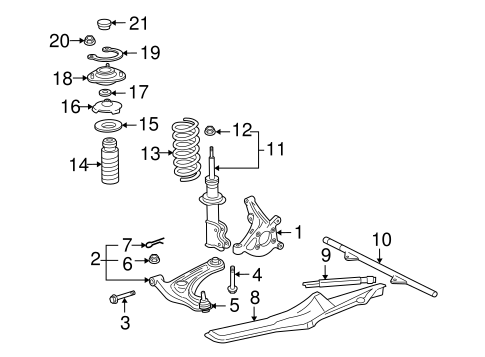

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2005 Toyota MR2 Spyder

Select SUSPENSION COMPONENTS Part

2005 Toyota MR2 Spyder

Change vehicle

No. Part # Part # / Description List Price Price
1 43212-17110 43212-17110 / Knuckle

Knuckle, LEFT

2004-05

$204.20 $153.15
1 43211-17110 43211-17110 / Knuckle

Knuckle, RIGHT

2004-05

$204.20 $153.15
2 48069-19156 48069-19156 / Lower Control Arm

Lower Control Arm, LEFT

2004-05

$332.83 $249.62
2 48068-19176 48068-19176 / Lower Control Arm

Lower Control Arm, RIGHT

2004-05

$332.83 $249.62
3 90119-12338 90119-12338 / Lower Control Arm Mount Bolt

Lower Control Arm Front Bolt, LEFT

2004-05

$3.88 $2.91
3 90119-12338 90119-12338 / Lower Control Arm Mount Bolt

Lower Control Arm Front Bolt, RIGHT

2004-05

$3.88 $2.91
4 90119-12333 90119-12333 / Lower Control Arm Mount Bolt

Lower Control Arm Rear Bolt, RIGHT

2004-05

$5.03 $3.77
4 90119-12333 90119-12333 / Lower Control Arm Mount Bolt

Lower Control Arm Rear Bolt, LEFT

2004-05

$5.03 $3.77
6 90171-12007 90171-12007 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, LEFT

2004-05

$1.72 $1.29
6 90171-12007 90171-12007 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, RIGHT

2004-05

$1.72 $1.29
7 90468-16022 90468-16022 / Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, LEFT

2004-05

$1.38 $1.04
7 90468-16022 90468-16022 / Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, RIGHT

2004-05

$1.38 $1.04
8 51205-17010 51205-17010 / Cross-Member

Cross-member, RIGHT

2004-05

$256.10 $192.08
8 51206-17050 51206-17050 / Cross-Member

Cross-member, LEFT

2004-05

$256.10 $192.08
9 53689-17010 53689-17010 / Center Brace

Center Brace, LEFT

2004-05

$46.43 $34.82
9 53689-17010 53689-17010 / Center Brace

Center Brace, RIGHT

2004-05

$46.43 $34.82
10 51202-17010 51202-17010 / Lower Crossmember

2004-05

$91.23 $68.42
11 48520-19835 48520-19835 / Strut Assembly

Strut Assembly, LEFT

2004-05

$175.35 $131.51
11 48510-80081 48510-80081 / Strut Assembly

Strut Assembly, RIGHT

2004-05

$175.35 $131.51
12 94182-11400 94182-11400 / Upper Mount Nut

Top Nut, LEFT

2004-05

$6.01 $4.51
12 94182-11400 94182-11400 / Upper Mount Nut

Top Nut, RIGHT

2004-05

$6.01 $4.51
13 48131-17710 48131-17710 / Coil Spring

Spring, RIGHT

2004-05

$69.12 $51.84
13 48131-17710 48131-17710 / Coil Spring

Spring, LEFT

2004-05

$69.12 $51.84
14 48304-17010 48304-17010 / Strut Bumper

Bumper, RIGHT

2004-05

$25.83 $19.37
14 48304-17010 48304-17010 / Strut Bumper

Bumper, LEFT

2004-05

$25.83 $19.37
15 48157-17030 48157-17030 / Spring Insulator

Insulator, LEFT

2004-05

$12.04 $9.03
15 48157-17030 48157-17030 / Spring Insulator

Insulator, RIGHT

2004-05

$12.04 $9.03
16 48044-17030 48044-17030 / Spring Seat

Seat, RIGHT

2004-05

$16.92 $12.69
16 48044-17030 48044-17030 / Spring Seat

Seat, LEFT

2004-05

$16.92 $12.69
17 90303-22002 90303-22002 / Seal

Seal, LEFT

2004-05

$6.75 $5.06
17 90303-22002 90303-22002 / Seal

Seal, RIGHT

2004-05

$6.75 $5.06
18 48609-17051 48609-17051 / Strut Mount

Mount, RIGHT

2004-05

$100.71 $75.53
18 48609-17051 48609-17051 / Strut Mount

Mount, LEFT

2004-05

$100.71 $75.53
19 48681-17040 48681-17040 / Mount Gasket

Mount Gasket, LEFT

2004-05

$11.87 $8.90
19 48681-17040 48681-17040 / Mount Gasket

Mount Gasket, RIGHT

2004-05

$11.87 $8.90
20 90179-08111 90179-08111 / Mount Nut

Mount Nut, RIGHT

2004-05

$1.38 $1.04
20 90179-08111 90179-08111 / Mount Nut

Mount Nut, LEFT

2004-05

$1.38 $1.04
21 48684-52010 48684-52010 / Top Cap

Dust Cover, LEFT

2004-05

$14.57 $10.93
21 48684-52010 48684-52010 / Top Cap

Dust Cover, RIGHT

2004-05

$14.57 $10.93

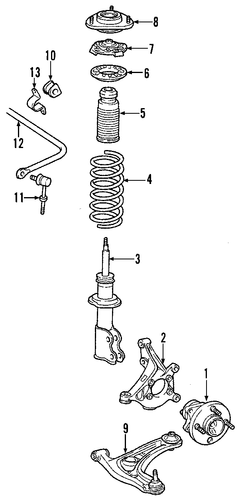

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2005 Toyota MR2 Spyder #2
No. Part # Part # / Description List Price Price
1 43550-17010 43550-17010 / Hub Assembly

Front Hub & Bearing

MR2

$316.99 $237.74
2 43212-17110 43212-17110 / Knuckle

MR2; LEFT

$204.20 $153.15
2 43211-17110 43211-17110 / Knuckle

MR2; RIGHT

$204.20 $153.15
3 48520-19835 48520-19835 / Strut Assembly

Strut

MR2; LEFT

$175.35 $131.51
3 48510-80081 48510-80081 / Strut Assembly

Strut

MR2; RIGHT

$175.35 $131.51
4 48131-17710 48131-17710 / Coil Spring

MR2

$69.12 $51.84
5 48304-17010 48304-17010 / Strut Bumper

MR2

$25.83 $19.37
6 48157-17030 48157-17030 / Spring Insulator

MR2

$12.04 $9.03
7 48044-17030 48044-17030 / Spring Seat

MR2

$16.92 $12.69
8 48609-17051 48609-17051 / Strut Mount

MR2

$100.71 $75.53
9 48069-19156 48069-19156 / Lower Control Arm

MR2; LEFT

$332.83 $249.62
9 48068-19176 48068-19176 / Lower Control Arm

MR2; RIGHT

$332.83 $249.62
10 48815-17130 48815-17130 / Stabilizer Bar Bushing

Bushings

MR2

$9.45 $7.09
11 48820-17050 48820-17050 / Stabilizer Link

Link

MR2

$46.06 $34.55
12 48811-17100 48811-17100 / Stabilizer Bar

MR2

$105.36 $79.02
13 48824-12040 48824-12040 / Stabilizer Bar Bracket

Bracket

MR2

$6.32 $4.74
