FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2005 Toyota Matrix

Select FUEL SYSTEM COMPONENTS Part

2005 Toyota Matrix

Change vehicle

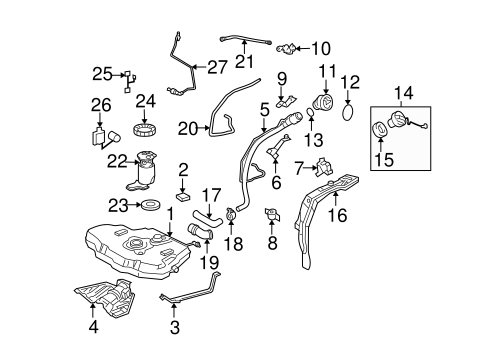

No. Part # Part # / Description List Price Price
1 77001-02490 77001-02490 / Fuel Tank

2WD, 2005-08

- -
2 77651-12080 77651-12080 / Fuel Tank Cushion

Fuel Tank Insulator

2WD, 2005-08

$9.80 $7.19
3 77601-12271 77601-12271 / Fuel Tank Mount Strap

Tank Strap, RIGHT

2WD, 2005-08

$62.26 $45.66
3 77612-02080 77612-02080 / Fuel Tank Mount Strap

Tank Strap, LEFT

2WD, 2005-08

$80.65 $59.16
4 77641-02050 77641-02050 / Shield

2WD, 2005-08

$205.15 $150.46
5 77201-02150 77201-02150 / Filler Pipe

2WD, 2005-08

$142.54 $104.54
6 77281-02050 77281-02050 / Filler Pipe Clamp

2WD, 2005-08

$10.83 $7.94
7 77296-02010 77296-02010 / Filler Pipe Upper Support

2WD, 2005-08

$7.33 $5.37
8 77216-02080 77216-02080 / Filler Pipe Support Bracket

Filler Pipe Lower Support

2WD, 2005-08

$11.06 $8.11
9 77217-02050 77217-02050 / Filler Pipe Support Bracket

2WD, 2005-08, #1

$11.06 $8.11
10 77218-02030 77218-02030 / Filler Pipe Support Bracket

2WD, 2005-08, #2

$19.57 $14.35
11 77291-02060 77291-02060 / Fuel Pocket

2WD, 2005-08

$37.50 $27.50
12 77391-02070 77391-02070 / Fuel Pocket Upper Retainer

2WD, 2005-08

$3.88 $2.84
13 77391-02040 77391-02040 / Pocket O-Ring

Fuel Pocket Lower Retainer

2WD, 2005-08

$2.93 $2.15
14 77300-33070 77300-33070 / Filler Cap

2WD, 2005-08

$23.59 $17.30
15 77316-33042 77316-33042 / Filler Cap Gasket

2WD, 2005-08

$6.58 $4.83
16 77277-02070 77277-02070 / Pipe Shield

2WD, 2005-08

$115.30 $84.57
17 77213-02060 77213-02060 / Filler Hose

Connector Hose

2WD, 2005-08

$37.50 $27.50
18 90460-40007 90460-40007 / Connector Hose Clamp

2WD, 2005-08, REAR

$2.82 $2.06
19 77276-02020 77276-02020 / Connector Hose Protector

2WD, 2005-08

$40.68 $29.84
20 77779-02010 77779-02010 / Outlet Tube

2WD, 2005-08

$33.04 $24.23
21 77404-02051 77404-02051 / Vent Hose

2WD, 2005-08

$55.17 $40.47
22 77020-02181 77020-02181 / Fuel Pump

Fuel Pump Assembly

2WD, 2005-08

$697.39 $511.51
23 77169-02050 77169-02050 / Fuel Pump Assembly Gasket

2WD, 2005-08

$3.48 $2.55
24 77144-04010 77144-04010 / Retainer

2WD, 2005-08

$43.50 $31.90
25 23243-0D010 23243-0D010 / Fuel Pump Wire

Retainer Wire

2WD, 2005-08

$5.66 $4.15
26 83320-02010 83320-02010 / Fuel Gauge Sending Unit

Sending Unit

2WD, 2005-08

$77.81 $57.07
26 83320-02010 83320-02010 / Fuel Gauge Sending Unit

MATRIX; W/O AWD

$77.81 $57.07
27 77209-02080 77209-02080 / Pressure Line

2WD, 2005-08

$28.39 $20.83
No. Part # Part # / Description List Price Price
1 77001-01040 77001-01040 / Fuel Tank

4WD, 2003-05

- -
2 77601-12260 77601-12260 / Fuel Tank Mount Strap

Fuel Tank Mount Strap, RIGHT

4WD, 2003-05

$56.60 $41.52
2 77602-12200 77602-12200 / Fuel Tank Mount Strap

Fuel Tank Mount Strap, LEFT

4WD, 2003-05

$62.26 $45.66
3 77681-32060 77681-32060 / Mount Strap Insulator

Fuel Tank Insulator, RIGHT

4WD, 2003-05

$28.13 $20.63
3 77681-32060 77681-32060 / Mount Strap Insulator

Fuel Tank Insulator, LEFT

4WD, 2003-05

$28.13 $20.63
4 77641-02100 77641-02100 / Shield

4WD, 2003-05

$236.27 $173.29
5 77201-12750 77201-12750 / Filler Pipe

4WD, 2003-05

$213.62 $156.68
6 77296-12040 77296-12040 / Filler Pipe Upper Bracket

4WD, 2003-05

$8.13 $5.97
7 77217-02040 77217-02040 / Filler Pipe Lower Bracket

4WD, 2003-05, #1

$15.20 $11.15
8 77216-02070 77216-02070 / Filler Pipe Lower Bracket

4WD, 2003-05, #2

$12.21 $8.95
9 77277-02050 77277-02050 / Pipe Shield

4WD, 2003-05

$55.54 $40.74
10 77219-02020 77219-02020 / Cover

4WD, 2003-05

$5.78 $4.23
11 77391-02040 77391-02040 / Pocket O-Ring

Cover Retainer Clip

4WD, 2003-05

$2.93 $2.15
13 77391-02070 77391-02070 / Fuel Pocket Upper Retainer

Fuel Pocket Retainer Clip

4WD, 2003-05

$3.88 $2.84
14 77300-53010 77300-53010 / Filler Cap

4WD, 2003-05

$25.92 $19.01
15 77316-06010 77316-06010 / Cap Gasket

Filler Cap Gasket

4WD, 2003-05

$19.80 $14.52
16 77213-01020 77213-01020 / Connector Hose

4WD, 2003-05

$47.03 $34.50
17 90460-46005 90460-46005 / Connector Hose Clamp

4WD, 2003-05

$9.08 $6.66
18 77276-12060 77276-12060 / Connector Hose Protector

4WD, 2003-05

$28.47 $20.89
19 23221-0A030 23221-0A030 / Fuel Pump

4WD, 2003-05

$378.98 $277.96
20 77169-33020 77169-33020 / Fuel Pump Gasket

4WD, 2003-05

$15.37 $11.27
21 77024-01020 77024-01020 / Fuel Pump Plate

4WD, 2003-05

$40.68 $29.84
22 77168-52010 77168-52010 / Fuel Pump Retainer Plate

4WD, 2003-05

$17.10 $12.54
23 77642-12050 77642-12050 / Fuel Pump Protector

4WD, 2003-05

$22.61 $16.58
24 23300-0A020 23300-0A020 / Fuel Filter

Filter

4WD, 2003-05

$38.23 $28.04
25 77390-12020 77390-12020 / Cut-Off Valve

4WD, 2003-05

$43.85 $32.16
26 77177-02010 77177-02010 / Cut-Off Valve Gasket

4WD, 2003-05

$12.90 $9.47
27 77392-12010 77392-12010 / Cut-Off Valve Retainer Plate

4WD, 2003-05

$28.65 $21.01
28 77393-12030 77393-12030 / Cut-Off Valve Protector

4WD, 2003-05

$10.89 $7.99
29 83320-01040 83320-01040 / Sending Unit

4WD, 2003-05

$85.59 $62.78
No. Part # Part # / Description List Price Price
layer_29 77175-02010 77175-02010 / Pump Support

4WD, 2003-05

$10.14 $7.44
layer_32 77169-33020 77169-33020 / Fuel Pump Gasket

Pump Support Gasket

4WD, 2003-05

$15.37 $11.27
layer_28 23280-22010 23280-22010 / Fuel Pressure Regulator

Pressure Reg

4WD, 2003-05

$151.39 $111.04
layer_15 23280-21010 23280-21010 / Fuel Pressure Regulator

MATRIX

$150.67 $110.51
N/A 78180-02290 78180-02290 / Throttle Cable

MATRIX; W/CRUISE CONTROL

$84.19 $61.74
No. Part # Part # / Description List Price Price
N/A 23808-88600 23808-88600 / Fuel Rail

MATRIX; W/XRS

- -
N/A 78180-01040 78180-01040 / Throttle Cable

MATRIX; W/O CRUISE CONTROL; W/XRS

$110.71 $81.20
N/A 23209-22080 23209-22080 / Injector

MATRIX; W/XRS

- -
N/A 22270-22021 22270-22021 / Idle Speed Control

MATRIX; W/XRS

$307.98 $225.90
