ENGINE/ENGINE for 2005 Toyota Corolla

Select ENGINE Part

2005 Toyota Corolla

Change vehicle

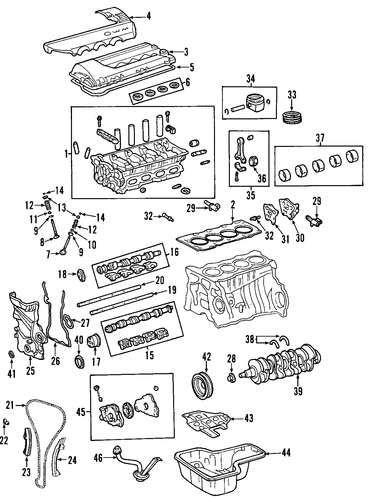

ENGINE/ENGINE for 2005 Toyota Corolla #1
No. Part # Part # / Description List Price Price
N/A 19000-22440 19000-22440 / Engine

COROLLA

- -
layer_3 12305-0D032 12305-0D032 / Side Mount

Mount

COROLLA; RIGHT

$180.73 $132.55
N/A 04112-22600 04112-22600 / Valve Grind Gasket Kit

COROLLA

$217.53 $159.55
layer_1 12361-0D090 12361-0D090 / Front Mount

Mount

COROLLA; FRONT

$105.02 $77.03
N/A 11400-88515 11400-88515 / Short Block

COROLLA

$2,432.05 $2,097.49
N/A 11410-29175 11410-29175 / Cylinder Block

COROLLA

$2,365.16 $2,039.79
N/A 04111-22260 04111-22260 / Overhaul Gasket Set

COROLLA

- -
1 11101-29476 11101-29476 / Cylinder Head

COROLLA

$1,065.62 $919.03
2 11115-22060 11115-22060 / Head Gasket

COROLLA

$59.46 $43.62
3 11201-88600 11201-88600 / Valve Cover

COROLLA

$463.34 $339.84
4 11212-22120 11212-22120 / Engine Cover

Outer Cover

COROLLA

$75.34 $55.25
5 11213-88600 11213-88600 / Valve Cover Gasket

COROLLA

$19.84 $14.55
6 11193-15010 11193-15010 / Valve Cover Seal

Plug Seal

COROLLA

$10.37 $7.61
7 13711-88600 13711-88600 / Intake Valve

COROLLA

$18.71 $13.73
8 13715-88602 13715-88602 / Exhaust Valve

COROLLA

$25.68 $18.84
9 13734-88600 13734-88600 / Valve Spring Seats

COROLLA

$1.41 $1.04
10 90913-02115 90913-02115 / Exhaust Valve Seals

Intake Valve Seals

COROLLA

$9.74 $7.15
11 90913-02114 90913-02114 / Exhaust Valve Seals

COROLLA

$9.74 $7.15
12 90905-01061 90905-01061 / Valve Springs

COROLLA; EXHAUST

$8.24 $6.04
12 90905-01063 90905-01063 / Valve Springs

COROLLA; INTAKE

$8.75 $6.42
13 13741-88600 13741-88600 / Valve Spring Retainers

COROLLA

$3.88 $2.84
14 90913-03033 90913-03033 / Valve Keeper

COROLLA

$1.55 $1.13
15 13501-29025 13501-29025 / Intake Camshaft

COROLLA

$356.40 $261.40
16 13502-29015 13502-29015 / Exhaust Camshaft

COROLLA

$349.96 $256.68
17 13050-0D010 13050-0D010 / Timing Gear

Intake Gear

COROLLA

$276.49 $202.79
18 13523-0D010 13523-0D010 / Camshaft Gear

Exhaust Gear

COROLLA

$41.29 $30.28
19 13901-22020 13901-22020 / Intake Rocker Shaft

COROLLA

$86.67 $63.57
20 13902-22010 13902-22010 / Exhaust Rocker Shaft

COROLLA

$86.67 $63.57
21 13506-88600 13506-88600 / Timing Chain

COROLLA

$249.68 $183.13
22 13540-88600 13540-88600 / Tensioner

COROLLA

$41.35 $30.33
23 13559-88600 13559-88600 / Chain Guide

COROLLA

$39.97 $29.32
24 13561-88600 13561-88600 / Damper

COROLLA

$51.31 $37.64
25 11321-88601 11321-88601 / Timing Cover

Front Cover

COROLLA

$340.25 $249.56
26 11328-88600 11328-88600 / Timing Cover Gasket

Outer Gasket

COROLLA

$18.10 $13.27
27 11329-88600 11329-88600 / Timing Cover Gasket

Inner Gasket

COROLLA

$8.53 $6.26
28 13521-0D010 13521-0D010 / Crankshaft Gear

COROLLA

$19.25 $14.12
29 15330-22040 15330-22040 / Valve Assembly

COROLLA

$106.11 $77.82
30 15337-88600 15337-88600 / Housing

COROLLA

$56.60 $41.52
31 15338-22010 15338-22010 / Housing Gasket

COROLLA

$6.98 $5.12
32 15678-46010 15678-46010 / Filter

COROLLA; NO.1

$4.86 $3.56
32 15678-21010 15678-21010 / Filter

COROLLA; NO.2

$8.07 $5.92
33 13011-88601 13011-88601 / Piston Ring Set

COROLLA

$155.85 $114.30
34 13101-88601 13101-88601 / Piston

COROLLA

$97.98 $71.86
35 13201-29075 13201-29075 / Connecting Rod

COROLLA

$103.99 $76.27
36 13041-88601-03 13041-88601-03 / Bearings

Bearing

COROLLA; MARK 3

$14.93 $10.94
36 13041-88601-02 13041-88601-02 / Bearings

Bearing

COROLLA; MARK 2

$14.93 $10.94
36 13041-88601-01 13041-88601-01 / Bearings

Bearing

COROLLA; MARK 1

$14.93 $10.94
37 11701-22020-01 11701-22020-01 / Bearings

Bearing

COROLLA; MARK 1

$27.01 $19.81
37 11701-22020-05 11701-22020-05 / Bearings

Bearing

COROLLA; MARK 5

$27.01 $19.81
37 11701-22020-02 11701-22020-02 / Bearings

Bearing

COROLLA; MARK 2

$27.01 $19.81
37 11701-22020-03 11701-22020-03 / Bearings

Bearing

COROLLA; MARK 3

$27.01 $19.81
37 11701-22020-04 11701-22020-04 / Bearings

Bearing

COROLLA; MARK 4

$27.01 $19.81
38 11791-0T030 11791-0T030 / Thrust Washer

Thrust Bearing

COROLLA

$25.63 $18.80
39 13401-22051 13401-22051 / Crankshaft

COROLLA

$568.18 $416.73
40 90311-85010 90311-85010 / Rear Main Seal

COROLLA

$31.78 $23.30
41 90080-31049 90080-31049 / Seal

Front Crank Seal

COROLLA

$8.94 $6.55
42 13470-88600 13470-88600 / Crankshaft Pulley

Pulley

COROLLA

$290.75 $213.24
43 12123-88603 12123-88603 / Oil Pan Baffle

COROLLA

$38.56 $28.28
44 12101-22040 12101-22040 / Oil Pan

COROLLA

$136.74 $100.30
45 15100-88600 15100-88600 / Oil Pump

COROLLA

$181.33 $132.99
46 15104-88600 15104-88600 / Oil Pick-Up

COROLLA

$54.10 $39.69
ENGINE/ENGINE for 2005 Toyota Corolla #2
No. Part # Part # / Description List Price Price
layer_3 12305-0D023 12305-0D023 / Side Mount

Mount

COROLLA; SIDE; RIGHT

$180.73 $132.55
N/A 11400-22170 11400-22170 / Short Block

COROLLA; JAPAN BUILT

$2,766.47 $2,385.89
N/A 19000-22290 19000-22290 / Engine

COROLLA; JAPAN BUILT

- -
N/A 19000-22360 19000-22360 / Engine

COROLLA; USA BUILT

- -
layer_4 12372-0D110 12372-0D110 / Side Mount

Mount

COROLLA; SIDE; LEFT; AUTO TRANS; 4-SPEED

$120.59 $88.45
layer_7 12371-0D110 12371-0D110 / Rear Mount

Mount

COROLLA; REAR; AUTO TRANS

$127.77 $93.72
layer_1 12361-0D100 12361-0D100 / Front Mount

Mount

COROLLA; FRONT; AUTO TRANS

$105.02 $77.03
N/A 04112-0D303 04112-0D303 / Valve Grind Gasket Kit

COROLLA; USA BUILT

$191.80 $140.68
N/A 04111-22251 04111-22251 / Overhaul Gasket Set

COROLLA; USA BUILT

- -
N/A 11400-22530 11400-22530 / Short Block

COROLLA; USA BUILT

$2,212.41 $1,908.06
N/A 04111-22741 04111-22741 / Overhaul Gasket Set

COROLLA; JAPAN BUILT

$287.32 $210.73
layer_4 12372-0D100 12372-0D100 / Side Mount

Mount

COROLLA; SIDE; LEFT; MANUAL TRANS

$120.59 $88.45
layer_7 12371-0D100 12371-0D100 / Rear Mount

Mount

COROLLA; REAR; MANUAL TRANS

$127.77 $93.72
N/A 04112-22252 04112-22252 / Valve Grind Gasket Kit

COROLLA; JAPAN BUILT

$211.78 $155.33
4 11201-0D030 11201-0D030 / Valve Cover

COROLLA; USA MADE PART; USA BUILT; TYPE B

$445.67 $326.87
4 11201-22060 11201-22060 / Valve Cover

COROLLA; USA MADE PART; JAPAN BUILT

$374.93 $274.99
8 90080-31043 90080-31043 / Valve Seals

COROLLA; INTAKE

$9.74 $7.15
8 90080-31046 90080-31046 / Valve Seals

COROLLA; EXHAUST

$9.74 $7.15
14 13050-0D010 13050-0D010 / Timing Gear

COROLLA; CAMSHAFT GEAR; RIGHT

$276.49 $202.79
14 13523-0D010 13523-0D010 / Camshaft Gear

Timing Gear

COROLLA; CAMSHAFT GEAR; LEFT

$41.29 $30.28
14 13521-0D010 13521-0D010 / Crankshaft Gear

Timing Gear

COROLLA; CRANKSHAFT GEAR

$19.25 $14.12
18 13561-22020 13561-22020 / Chain Guide

Damper

COROLLA; JAPAN BUILT

$28.58 $20.96
18 13561-0D010 13561-0D010 / Chain Guide

Damper

COROLLA; USA BUILT; CODE 5001001-9XXXXXX

$82.41 $60.45
20 11321-22021 11321-22021 / Front Cover

COROLLA; USA BUILT; JAPAN PART

$239.80 $175.89
20 11321-0D010 11321-0D010 / Timing Cover

Front Cover

COROLLA; JAPAN BUILT

$274.11 $201.04
21 13011-22221 13011-22221 / Piston Ring Set

COROLLA; USA BUILT; USA MADE PART

$141.67 $103.91
24 13041-22024-02 13041-22024-02 / Bearing Set

Bearing

COROLLA; MARK 2

$15.60 $11.44
24 13041-22024-01 13041-22024-01 / Bearing Set

Bearing

COROLLA; MARK 1

$15.60 $11.44
24 13041-22024-03 13041-22024-03 / Bearing Set

Bearing

COROLLA; MARK 3

$15.60 $11.44
25 11701-0D011-04 11701-0D011-04 / Bearing

COROLLA; MARK 4

- -
25 11701-0D011-02 11701-0D011-02 / Bearing

COROLLA; MARK 2

- -
25 11701-0D011-01 11701-0D011-01 / Bearing

COROLLA; MARK 1

- -
25 11701-0D011-03 11701-0D011-03 / Bearing

COROLLA; MARK 3

- -
33 15104-22023 15104-22023 / Oil Pick-Up

COROLLA; USA BUILT; JAPAN MADE PART

$49.51 $36.31
33 15104-0D020 15104-0D020 / Oil Pick-Up

COROLLA; USA BUILT; USA MADE PART

$61.20 $44.88
