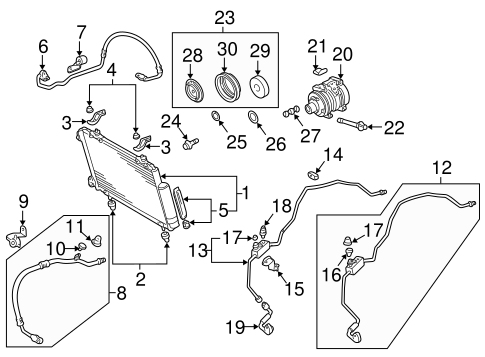

HVAC/CONDENSER, COMPRESSOR & LINES for 2005 Toyota Celica

Select CONDENSER, COMPRESSOR & LINES Part

2005 Toyota Celica

Change vehicle

No. Part # Part # / Description List Price Price
1 88460-20600 88460-20600 / Condenser

$312.89 $229.49
3 88688-2D860 88688-2D860 / Bracket

Bracket, LEFT

$2.18 $1.60
3 88688-2D860 88688-2D860 / Bracket

Bracket, RIGHT

$2.18 $1.60
4 90179-06274 90179-06274 / Tail Lamp Assembly Nut

Bracket Nut, LEFT

$0.98 $0.72
4 90179-06274 90179-06274 / Tail Lamp Assembly Nut

Bracket Nut, RIGHT

$0.98 $0.72
5 88474-17010 88474-17010 / Dehydrator

$95.87 $70.32
5 88474-17010 88474-17010 / Dehydrator

Drier

CELICA

$95.87 $70.32
6 88703-20240 88703-20240 / Discharge Hose

GT

$153.17 $112.34
8 88704-20500 88704-20500 / Suction Hose

$184.27 $135.15
12 88706-20230 88706-20230 / Pressure Cut-Off Switch

Liquid Line

FACTORY INSTALLED

$216.20 $158.58
12 88706-20230 88706-20230 / Pressure Cut-Off Switch

CELICA; PART OF LIQUID LINE.

$216.20 $158.58
13 88706-20250 88706-20250 / Liquid Line

DEALER INSTALLED

$204.31 $149.85
14 88718-32220 88718-32220 / Lever Clip

Liquid Line Holder

$1.24 $0.90
19 88716-2D600 88716-2D600 / Extension Pipe

DEALER INSTALLED

$34.25 $25.12
20 88320-2B420-84 88320-2B420-84 / Compressor

$487.35 $356.74
22 90119-08B42 90119-08B42 / Compressor Assembly Mount Bolt

Compressor Mount Bolt

$1.34 $0.99
23 88410-32200 88410-32200 / Clutch & Pulley

$358.01 $262.58
23 88410-32200 88410-32200 / Clutch & Pulley

Clutch

CELICA; ALL

$358.01 $262.58
24 90099-04349 90099-04349 / Clutch & Pulley Bolt

$0.71 $0.52
25 90099-07065 90099-07065 / Clutch & Pulley Washer

Clutch & Pulley Spacer

$1.84 $1.35
26 90099-07114 90099-07114 / Clutch & Pulley Snap Ring

$1.05 $0.77
27 88335-14020 88335-14020 / Clutch & Pulley Repair Kit

Clutch & Pulley Hardware Kit

$1.34 $0.99
No. Part # Part # / Description List Price Price
layer_12 91661-60616 91661-60616 / Bracket Bolt

Bracket Bolt, LEFT

$0.98 $0.72
layer_12 91661-60616 91661-60616 / Bracket Bolt

Bracket Bolt, RIGHT

$0.98 $0.72
No. Part # Part # / Description List Price Price
layer_6 88703-20250 88703-20250 / Discharge Hose

CELICA; ALL; GT-S

$167.28 $122.70
