BRAKES/HYDRAULIC SYSTEM for 2005 Toyota 4Runner

Select HYDRAULIC SYSTEM Part

2005 Toyota 4Runner

Change vehicle

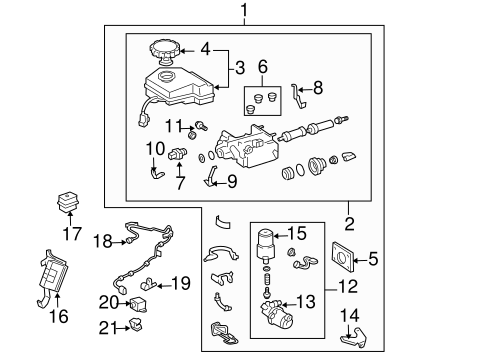

No. Part # Part # / Description List Price Price
1 47050-35030 47050-35030 / Actuator Assembly

2003-05, 5 SPEED

$2,761.84 $2,025.69
1 47050-60081 47050-60081 / Actuator Assembly

2003-05, 4 SPEED

$3,146.07 $2,307.51
2 47025-60081 47025-60081 / Master Cylinder

2003-05

$1,732.68 $1,270.85
3 47220-60180 47220-60180 / Master Cylinder Reservoir

Reservoir Assembly

2003-05, 5 SPEED

$188.17 $138.02
3 47220-60170 47220-60170 / Reservoir Assembly

2003-05, 4 SPEED

$188.17 $138.02
4 47230-30130 47230-30130 / Cap

Reservoir Cap

2003-05

$10.09 $7.39
5 44785-04020 44785-04020 / Gasket

2003-05

$2.59 $1.89
6 47255-16010 47255-16010 / Reservoir Assembly Grommet

Grommet

2003-05, FRONT & REAR

$11.78 $8.64
6 31417-35010 31417-35010 / Grommet

2003-05, CENTER

$2.93 $2.15
7 89639-30100 89639-30100 / Pressure Sensor

2003-05

$246.18 $180.56
8 44593-60010 44593-60010 / Bracket

2003-05, #1

$5.95 $4.37
9 44594-60010 44594-60010 / Bracket

2003-05, #2

- -
10 44591-60050 44591-60050 / Bracket

2003-05, #3

$4.17 $3.05
11 90149-40006 90149-40006 / Bracket Screw

2003-05

$1.35 $0.99
12 47070-60050 47070-60050 / Pump Assembly

2003-05

$1,672.97 $1,227.05
12 47070-60050 47070-60050 / Pump Assembly

Motor & Pump

4-RUNNER; MOTOR & ACCUMULATOR ASSY

$1,672.97 $1,227.05
12 47070-60050 47070-60050 / Pump Assembly

Brake Booster

4-RUNNER; ALL

$1,672.97 $1,227.05
13 47960-30030 47960-30030 / Motor & Pump

Pump

2003-05

$1,460.75 $1,071.39
14 47968-30020 47968-30020 / Pump Bracket

2003-05

$6.18 $4.53
15 47950-30010 47950-30010 / Motor & Pump

Accumulator

2003-05

$382.00 $280.17
16 89540-35320 89540-35320 / Control Module

2003-05, SKID CONTROL

$2,132.75 $1,821.14
17 88263-24020 88263-24020 / Relay

ABS Relay

2003-05, #1

$58.36 $42.80
17 88263-24030 88263-24030 / Relay

ABS Relay

2003-05, #2

$61.20 $44.88
17 88263-24020 88263-24020 / Relay

4-RUNNER; #1

$58.36 $42.80
17 88263-24030 88263-24030 / Relay

4-RUNNER; #2

$61.20 $44.88
20 89180-35020 89180-35020 / Yaw Rate Sensor

Yaw Sensor

2003-05

$456.27 $334.66
20 89180-35020 89180-35020 / Yaw Rate Sensor

4-RUNNER

$456.27 $334.66
21 86652-51010 86652-51010 / Buzzer Switch

2003-05, SKID CONTROL

$56.60 $41.52
No. Part # Part # / Description List Price Price
layer_2 47025-35070 47025-35070 / Master Cylinder

4-RUNNER; W/ABS

$1,525.62 $1,118.97
