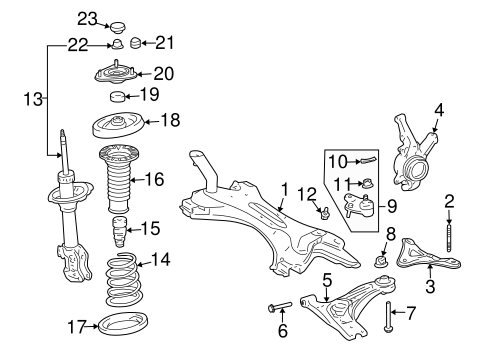

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2005 Scion tC

Select SUSPENSION COMPONENTS Part

2005 Scion tC

Change vehicle

No. Part # Part # / Description List Price Price
1 51201-21060 51201-21060 / Engine Cradle

$1,364.91 $1,001.10
2 90951-01002 90951-01002 / Engine Cradle Stud

$14.39 $10.55
3 52257-20071 52257-20071 / Bracket

Bracket, RIGHT

$50.94 $37.37
3 52258-20071 52258-20071 / Bracket

Bracket, LEFT

$54.82 $40.21
4 43211-21040 43211-21040 / Knuckle

Knuckle, RIGHT

$251.70 $184.61
4 43212-21040 43212-21040 / Knuckle

Knuckle, LEFT

$251.70 $184.61
5 48069-21020 48069-21020 / Lower Control Arm

Lower Control Arm, LEFT

$200.07 $146.74
5 48068-21020 48068-21020 / Lower Control Arm

Lower Control Arm, RIGHT

$200.07 $146.74
6 90119-14108 90119-14108 / Lower Control Arm Mount Bolt

Lower Control Arm Front Bolt, LEFT

$5.98 $4.38
6 90119-14108 90119-14108 / Lower Control Arm Mount Bolt

Lower Control Arm Front Bolt, RIGHT

$5.98 $4.38
7 90119-14108 90119-14108 / Lower Control Arm Mount Bolt

Lower Control Arm Rear Bolt, LEFT

$5.98 $4.38
7 90119-14108 90119-14108 / Lower Control Arm Mount Bolt

Lower Control Arm Rear Bolt, RIGHT

$5.98 $4.38
8 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, RIGHT

$1.67 $1.22
8 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, LEFT

$1.67 $1.22
9 43330-09670 43330-09670 / Lower Ball Joint

Lower Ball Joint, RIGHT

$59.47 $43.62
9 43330-09670 43330-09670 / Lower Ball Joint

Lower Ball Joint, LEFT

$59.47 $43.62
10 95381-02525 95381-02525 / Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, LEFT

$1.03 $0.76
10 95381-02525 95381-02525 / Ball Joint Cotter Pin

Lower Ball Joint Cotter Pin, RIGHT

$1.03 $0.76
11 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Nut, RIGHT

$3.25 $2.38
11 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Nut, LEFT

$3.25 $2.38
12 90105-12336 90105-12336 / Lower Ball Joint Mount Bolt

Lower Ball Joint Bolt, LEFT

$1.64 $1.20
12 90105-12336 90105-12336 / Lower Ball Joint Mount Bolt

Lower Ball Joint Bolt, RIGHT

$1.64 $1.20
13 48520-29835 48520-29835 / Strut

Strut, LEFT

$140.19 $102.82
13 48510-80142 48510-80142 / Strut

Strut, RIGHT

$140.19 $102.82
14 48131-21341 48131-21341 / Coil Spring

Spring, RIGHT

AUTO TRANS

$78.09 $57.28
14 48131-21341 48131-21341 / Coil Spring

Spring, LEFT

AUTO TRANS

$78.09 $57.28
14 48131-21381 48131-21381 / Coil Spring

Spring, RIGHT

MANUAL TRANS

$78.09 $57.28
14 48131-21381 48131-21381 / Coil Spring

Spring, LEFT

MANUAL TRANS

$78.09 $57.28
15 48331-12210 48331-12210 / Bumper

Bumper, RIGHT

$13.68 $10.03
15 48331-12210 48331-12210 / Bumper

Bumper, LEFT

$13.68 $10.03
16 48157-02070 48157-02070 / Upper Insulator

Insulator, LEFT

$24.16 $17.73
16 48157-02070 48157-02070 / Upper Insulator

Insulator, RIGHT

$24.16 $17.73
17 48158-47010 48158-47010 / Lower Insulator

Lower Seat, LEFT

$15.80 $11.59
17 48158-47010 48158-47010 / Lower Insulator

Lower Seat, RIGHT

$15.80 $11.59
18 48044-02050 48044-02050 / Upper Seat

Upper Seat, LEFT

$17.93 $13.15
18 48044-02050 48044-02050 / Upper Seat

Upper Seat, RIGHT

$17.93 $13.15
19 90303-22002 90303-22002 / Seal

Dust Seal, LEFT

$6.84 $5.01
19 90303-22002 90303-22002 / Seal

Dust Seal, RIGHT

$6.84 $5.01
20 48609-21030 48609-21030 / Upper Mount

Upper Mount, LEFT

$99.73 $73.15
20 48609-21030 48609-21030 / Upper Mount

Upper Mount, RIGHT

$99.73 $73.15
21 90178-10026 90178-10026 / Upper Mount Nut

Upper Mount Nut, LEFT

$1.35 $0.99
21 90178-10026 90178-10026 / Upper Mount Nut

Upper Mount Nut, RIGHT

$1.35 $0.99
22 90080-17217 90080-17217 / Top Nut

Top Nut, LEFT

$3.25 $2.38
22 90080-17217 90080-17217 / Top Nut

Top Nut, RIGHT

$3.25 $2.38
23 48684-52010 48684-52010 / Top Cap

Cover, RIGHT

$14.74 $10.81
23 48684-52010 48684-52010 / Top Cap

Cover, LEFT

$14.74 $10.81

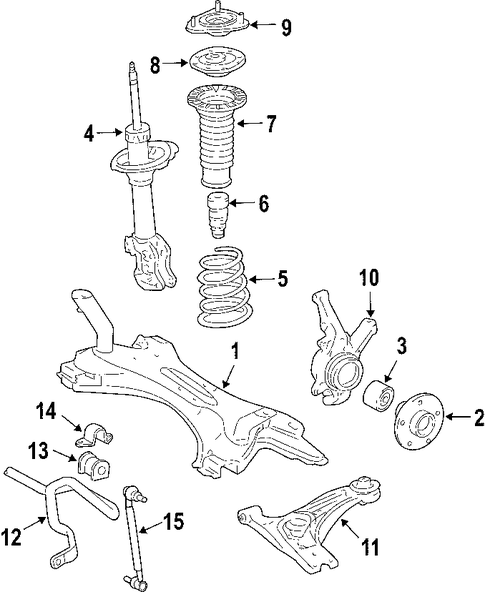

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2005 Scion tC #2
No. Part # Part # / Description List Price Price
1 51201-21060 51201-21060 / Engine Cradle

Cross-member

TC

$1,364.91 $1,001.10
2 43502-21010 43502-21010 / Front Hub

TC

$131.77 $96.65
3 90080-36136 90080-36136 / Bearing

Front Wheel Bearing

TC

$59.76 $43.83
4 48520-29835 48520-29835 / Strut

TC; LEFT

$140.19 $102.82
4 48510-80142 48510-80142 / Strut

TC; RIGHT

$140.19 $102.82
5 48131-21341 48131-21341 / Coil Spring

TC; AUTO TRANS

$78.09 $57.28
5 48131-21381 48131-21381 / Coil Spring

TC; MANUAL TRANS

$78.09 $57.28
6 48331-12210 48331-12210 / Bumper

Strut Bumper

TC; TO 2/06

$13.68 $10.03
7 48157-02070 48157-02070 / Upper Insulator

Spring Insulator

TC

$24.16 $17.73
8 48044-02050 48044-02050 / Upper Seat

Spring Seat

TC

$17.93 $13.15
9 48609-21030 48609-21030 / Upper Mount

Strut Mount

TC

$99.73 $73.15
10 43211-21040 43211-21040 / Knuckle

TC; RIGHT

$251.70 $184.61
10 43212-21040 43212-21040 / Knuckle

TC; LEFT

$251.70 $184.61
11 48068-21020 48068-21020 / Lower Control Arm

TC; RIGHT

$200.07 $146.74
11 48069-21020 48069-21020 / Lower Control Arm

TC; LEFT

$200.07 $146.74
12 48811-21050 48811-21050 / Stabilizer Bar

TC

$105.91 $77.68
13 48815-21020 48815-21020 / Stabilizer Bar Bushing

Bushings

TC

$15.83 $11.61
14 48824-20120 48824-20120 / Stabilizer Bar Bracket

Bracket

TC

$19.14 $14.03
15 48820-02030 48820-02030 / Stabilizer Link

Link

TC

$119.18 $87.41
