ELECTRICAL/BULBS - CHASSIS for 2005 Scion tC

Select BULBS - CHASSIS Part

2005 Scion tC

Change vehicle

No. Part # Part # / Description List Price Price
1 81130-21130 81130-21130 / Headlamp Assembly

Headlamp Assembly, RIGHT

$214.50 $160.88
1 81170-21130 81170-21130 / Headlamp Assembly

Headlamp Assembly, LEFT

$214.50 $160.88
1 81130-21130 81130-21130 / Headlamp Assembly

Composite Headlamp

TC; RIGHT

$214.50 $160.88
1 81170-21130 81170-21130 / Headlamp Assembly

Composite Headlamp

TC; LEFT

$214.50 $160.88
2 90159-A0034 90159-A0034 / Side Support Retainer Screw

Headlamp Assembly Screw

$0.83 $0.62
3 90189-05142 90189-05142 / Headlamp Assembly Grommet

$1.12 $0.84
4 90109-06347 90109-06347 / Headlamp Assembly Bolt

$0.89 $0.67
5 81193-21030 81193-21030 / Headlamp Assembly Repair Kit

Headlamp Assembly Repair Kit, RIGHT

BASE

$19.37 $14.53
5 81194-21030 81194-21030 / Headlamp Assembly Repair Kit

Headlamp Assembly Repair Kit, LEFT

BASE

$19.37 $14.53
6 53183-21030 53183-21030 / Seal

Seal, RIGHT

$10.43 $7.82
6 53184-21030 53184-21030 / Seal

Seal, LEFT

$10.43 $7.82
7 90069-81008 90069-81008 / Low Beam Bulb Cover

Socket Cover, RIGHT

$11.52 $8.64
7 90069-81008 90069-81008 / Low Beam Bulb Cover

Socket Cover, LEFT

$11.52 $8.64
8 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, RIGHT

$23.73 $17.80
8 90981-13046 90981-13046 / High Beam Bulb

High Beam Bulb, LEFT

$23.73 $17.80
8 90981-13046 90981-13046 / High Beam Bulb

Headlamp Bulb

TC; HIGH BEAM

$23.73 $17.80
9 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, LEFT

$23.73 $17.80
9 90981-13047 90981-13047 / Fog Lamp Bulb

Low Beam Bulb, RIGHT

$23.73 $17.80
9 90981-13047 90981-13047 / Fog Lamp Bulb

Headlamp Bulb

TC; LOW BEAM

$23.73 $17.80
10 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, RIGHT

$1.04 $0.78
10 00234-00192 00234-00192 / Bulb

Marker Lamp Bulb, LEFT

$1.04 $0.78
10 00234-00192 00234-00192 / Bulb

Side Marker Bulb

TC

$1.04 $0.78
10 00234-00192 00234-00192 / Bulb

License Lamp Bulb

TC

$1.04 $0.78
11 81125-21130 81125-21130 / Harness

Harness, LEFT

MARKER LAMP BULB

$32.75 $24.56
11 81125-21130 81125-21130 / Harness

Harness, RIGHT

MARKER LAMP BULB

$32.75 $24.56
12 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, RIGHT

$6.61 $4.96
12 90981-15011 90981-15011 / Bulb

Signal Lamp Bulb, LEFT

$6.61 $4.96
12 90981-15011 90981-15011 / Bulb

Turn Signal Bulb

TC; FRONT

$6.61 $4.96
13 90075-60028 90075-60028 / Socket

Socket, LEFT

SIGNAL LAMP BULB

$9.86 $7.40
13 90075-60028 90075-60028 / Socket

Socket, RIGHT

SIGNAL LAMP BULB

$9.86 $7.40
14 52135-21020 52135-21020 / Mount Bracket

Mount Bracket, RIGHT

$23.56 $17.67
14 52136-21020 52136-21020 / Mount Bracket

Mount Bracket, LEFT

$23.56 $17.67

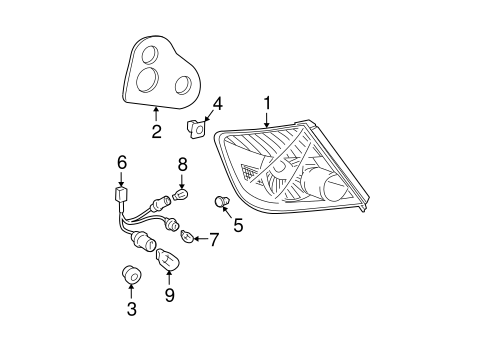

No. Part # Part # / Description List Price Price
1 81551-21230 81551-21230 / Lens & Housing

Lens & Housing, RIGHT

$150.70 $113.03
1 81561-21230 81561-21230 / Lens & Housing

Lens & Housing, LEFT

$150.70 $113.03
2 81564-21230 81564-21230 / Lens & Housing Gasket

Lens & Housing Gasket, LEFT

$22.99 $17.24
2 81554-21230 81554-21230 / Lens & Housing Gasket

Lens & Housing Gasket, RIGHT

$22.99 $17.24
3 90178-A0005 90178-A0005 / Combo Lamp Assembly Nut

Lens & Housing Nut, LEFT

$1.18 $0.89
3 90178-A0005 90178-A0005 / Combo Lamp Assembly Nut

Lens & Housing Nut, RIGHT

$1.18 $0.89
4 90467-09112 90467-09112 / Tail Lamp Assembly Retainer Nut

Lens & Housing Clip, LEFT

$2.24 $1.68
4 90467-09112 90467-09112 / Tail Lamp Assembly Retainer Nut

Lens & Housing Clip, RIGHT

$2.24 $1.68
5 81496-21010 81496-21010 / Tail Lamp Assembly Guide

Lens & Housing Guide, RIGHT

$1.64 $1.23
5 81496-21010 81496-21010 / Tail Lamp Assembly Guide

Lens & Housing Guide, LEFT

$1.64 $1.23
6 81555-21230 81555-21230 / Socket & Wire

Socket & Wire, LEFT

$34.71 $26.03
6 81555-21230 81555-21230 / Socket & Wire

Socket & Wire, RIGHT

$34.71 $26.03
7 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, RIGHT

$5.14 $3.86
7 90981-13044 90981-13044 / Bulb

Stop Lamp Bulb, LEFT

$5.14 $3.86
7 90981-13044 90981-13044 / Bulb

Taillamp Bulb

TC

$5.14 $3.86
8 90981-13043 90981-13043 / Bulb

Signal Lamp Bulb, LEFT

$5.06 $3.80
8 90981-13043 90981-13043 / Bulb

Signal Lamp Bulb, RIGHT

$5.06 $3.80
8 90981-13043 90981-13043 / Bulb

Turn Signal Bulb

TC; REAR

$5.06 $3.80
9 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, LEFT

$4.71 $3.53
9 90981-11059 90981-11059 / Bulb

Backup Lamp Bulb, RIGHT

$4.71 $3.53
9 90981-11059 90981-11059 / Bulb

Back-Up Lamp Bulb

TC

$4.71 $3.53
