FRONT SUSPENSION/STRUTS & COMPONENTS for 2004 Toyota RAV4

Select STRUTS & COMPONENTS Part

2004 Toyota RAV4

Change vehicle

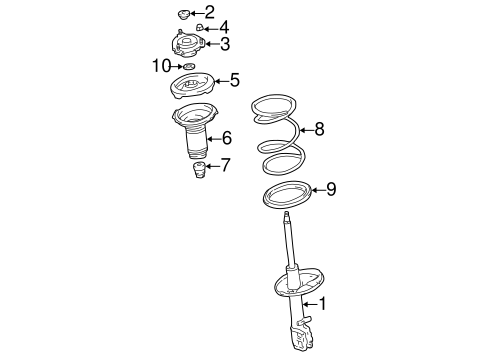

No. Part # Part # / Description List Price Price
1 48510-49535 48510-49535 / Strut Assembly

Strut, RIGHT

$177.23 $129.99
1 48520-49615 48520-49615 / Strut Assembly

Strut, LEFT

$177.23 $129.99
2 48684-52010 48684-52010 / Top Cap

Cover, LEFT

$14.74 $10.81
2 48684-52010 48684-52010 / Top Cap

Cover, RIGHT

$14.74 $10.81
3 48609-42012 48609-42012 / Upper Insulator

Upper Insulator, LEFT

$114.73 $84.14
3 48609-42012 48609-42012 / Upper Insulator

Upper Insulator, RIGHT

$114.73 $84.14
4 94184-61401 94184-61401 / Upper Insulator Nut

Upper Insulator Nut, RIGHT

$1.35 $0.99
4 94184-61401 94184-61401 / Upper Insulator Nut

Upper Insulator Nut, LEFT

$1.35 $0.99
5 48044-32030 48044-32030 / Spring Seat

Seat, LEFT

$30.31 $22.23
5 48044-32030 48044-32030 / Spring Seat

Seat, RIGHT

$30.31 $22.23
6 48157-42010 48157-42010 / Dust Cover

Dust Cover, LEFT

$31.98 $23.46
6 48157-42010 48157-42010 / Dust Cover

Dust Cover, RIGHT

$31.98 $23.46
7 48331-42020 48331-42020 / Stop Bumper

Stop Bumper, LEFT

$22.50 $16.51
7 48331-42020 48331-42020 / Stop Bumper

Stop Bumper, RIGHT

$22.50 $16.51
8 48131-42450 48131-42450 / Coil Spring

Spring, RIGHT

2WD, W/AC, AUTO TRANS

$111.29 $81.63
8 48131-42400 48131-42400 / Coil Spring

Spring, LEFT

4WD, MANUAL TRANS

$100.93 $74.03
8 48131-42430 48131-42430 / Coil Spring

Spring, RIGHT

2WD, W/O AC, MANUAL TRANS

$103.51 $75.92
8 48131-42440 48131-42440 / Coil Spring

Spring, LEFT

2WD, W/O AC, AUTO TRANS

$106.64 $78.21
8 48131-42410 48131-42410 / Coil Spring

Spring, LEFT

4WD, AUTO TRANS

$96.26 $70.60
8 48131-42410 48131-42410 / Coil Spring

Spring, RIGHT

4WD, AUTO TRANS

$96.26 $70.60
8 48131-42400 48131-42400 / Coil Spring

Spring, RIGHT

4WD, MANUAL TRANS

$100.93 $74.03
8 48131-42440 48131-42440 / Coil Spring

Spring, RIGHT

2WD, W/AC, MANUAL TRANS

$106.64 $78.21
8 48131-42450 48131-42450 / Coil Spring

Spring, LEFT

2WD, W/AC, AUTO TRANS

$111.29 $81.63
8 48131-42430 48131-42430 / Coil Spring

Spring, LEFT

2WD, W/O AC, MANUAL TRANS

$103.51 $75.92
9 48158-32030 48158-32030 / Lower Seat

Lower Seat, RIGHT

$25.86 $18.97
9 48158-32030 48158-32030 / Lower Seat

Lower Seat, LEFT

$25.86 $18.97
10 90303-22049 90303-22049 / Seal

Dust Seal, RIGHT

$5.23 $3.83
10 90303-22049 90303-22049 / Seal

Dust Seal, LEFT

$5.23 $3.83
