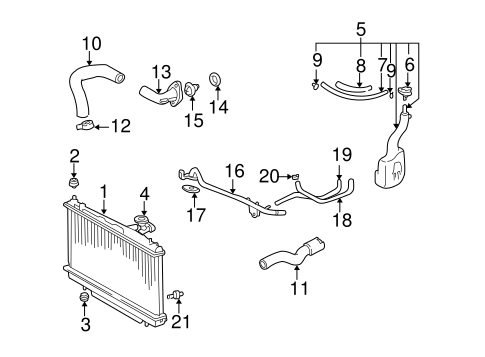

COOLING SYSTEM/RADIATOR & COMPONENTS for 2004 Toyota RAV4

Select RADIATOR & COMPONENTS Part

2004 Toyota RAV4

Change vehicle

No. Part # Part # / Description List Price Price
1 16400-28480 16400-28480 / Radiator Assembly

ALL, MANUAL TRANS

$396.19 $290.59
1 16400-28500 16400-28500 / Radiator Assembly

ALL, AUTO TRANS

$416.41 $305.43
2 16523-28010 16523-28010 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, LEFT

$15.00 $11.00
2 16523-28010 16523-28010 / Radiator Assembly Upper Insulator

Radiator Assembly Upper Insulator, RIGHT

$15.00 $11.00
3 16535-03050 16535-03050 / Radiator Assembly Lower Insulator

Radiator Assembly Lower Insulator, LEFT

$12.24 $8.98
3 16535-03050 16535-03050 / Radiator Assembly Lower Insulator

Radiator Assembly Lower Insulator, RIGHT

$12.24 $8.98
4 16401-7A470 16401-7A470 / Radiator Cap

$16.68 $12.24
5 16470-28050 16470-28050 / Reservoir

$77.42 $56.79
6 16405-28020 16405-28020 / Reservoir Cap

$16.36 $12.00
7 90445-12078 90445-12078 / Overflow Hose

Reservoir Cap Pipe

$10.57 $7.76
8 16483-28050 16483-28050 / Reservoir Cap Protector

$1.90 $1.39
9 90069-19014 90069-19014 / Reservoir Hose Clamp

Reservoir Cap Clamp

$1.35 $0.99
11 16571-28060 16571-28060 / Hose

Lower Hose

$21.57 $15.81
12 90467-37005 90467-37005 / Hose Clamp

Lower Hose Clamp

$5.26 $3.86
13 16321-28010 16321-28010 / Thermostat Housing

Thermostat Hsng

$42.44 $31.12
14 16325-62010 16325-62010 / Thermostat Gasket

Thermostat Hsng Gasket

$6.44 $4.72
15 90916-A3003 90916-A3003 / Thermostat

$24.02 $17.62
16 16268-28010 16268-28010 / By-Pass Pipe

W/O OIL COOLER

$42.81 $31.40
16 16268-28100 16268-28100 / By-Pass Pipe

W/OIL COOLER

$42.81 $31.40
17 16258-0H010 16258-0H010 / By-Pass Pipe Gasket

$1.41 $1.04
18 16261-28060 16261-28060 / By-Pass Hose

# 1

$16.93 $12.42
19 16264-28080 16264-28080 / By-Pass Hose

# 2

$16.93 $12.42
20 96135-51300 96135-51300 / Hose Clamp

By-Pass Hose Clamp

$3.28 $2.40

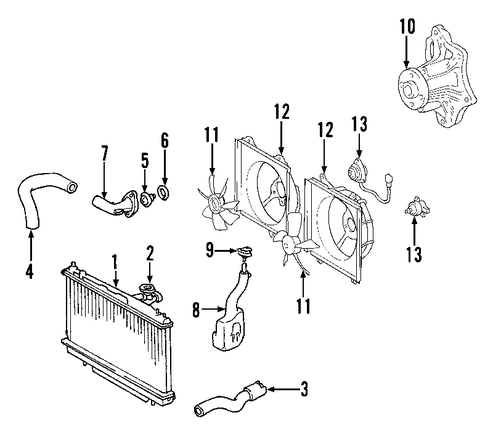

COOLING SYSTEM/RADIATOR & COMPONENTS for 2004 Toyota RAV4 #2
No. Part # Part # / Description List Price Price
1 16400-28500 16400-28500 / Radiator Assembly

Radiator

RAV4; AUTO TRANS; ALL

$416.41 $305.43
1 16400-28480 16400-28480 / Radiator Assembly

Radiator

RAV4; MANUAL TRANS; ALL

$396.19 $290.59
3 16571-28060 16571-28060 / Hose

Upper Hose

RAV4

$21.57 $15.81
4 16572-28030 16572-28030 / Hose

Lower Hose

RAV4

$21.57 $15.81
5 90916-A3003 90916-A3003 / Thermostat

RAV4

$24.02 $17.62
6 16325-62010 16325-62010 / Thermostat Gasket

RAV4

$6.44 $4.72
7 16321-28010 16321-28010 / Thermostat Housing

RAV4

$42.44 $31.12
8 16470-28050 16470-28050 / Reservoir

RAV4

$77.42 $56.79
9 16405-28020 16405-28020 / Reservoir Cap

Cap

RAV4

$16.36 $12.00
11 16361-28070 16361-28070 / Fan Blade

RAV4; RIGHT

$97.00 $71.15
11 16361-23050 16361-23050 / Fan Blade

RAV4; LEFT

$64.76 $47.49
12 16711-28150 16711-28150 / Fan Shroud

RAV4; LEFT

$87.63 $64.27
12 16711-28180 16711-28180 / Fan Shroud

RAV4; RIGHT

$74.19 $54.41
13 16363-28050 16363-28050 / Fan Motor

RAV4; RIGHT

$205.00 $150.35
13 16363-0D110 16363-0D110 / Fan Motor

RAV4; LEFT

$206.10 $151.17
