BRAKES/HYDRAULIC SYSTEM for 2004 Toyota Celica

Select HYDRAULIC SYSTEM Part

2004 Toyota Celica

Change vehicle

No. Part # Part # / Description List Price Price
1 43512-20711 43512-20711 / Rotor

Rotor, RIGHT

ALL

$72.76 $54.57
1 43512-20711 43512-20711 / Rotor

Rotor, LEFT

ALL

$72.76 $54.57
1 43512-20711 43512-20711 / Rotor

CELICA; GT-S

$72.76 $54.57
2 43502-32080 43502-32080 / Hub Assembly

Hub Assembly, LEFT

$130.90 $98.18
2 43502-32080 43502-32080 / Hub Assembly

Hub Assembly, RIGHT

$130.90 $98.18
3 90080-17238 90080-17238 / Axle Nut

Axle Nut, LEFT

$8.19 $6.14
3 90080-17238 90080-17238 / Axle Nut

Axle Nut, RIGHT

$8.19 $6.14
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

$4.17 $3.13
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

$4.17 $3.13
5 90080-36136 90080-36136 / Bearing

Wheel Bearing, RIGHT

$59.07 $44.30
5 90080-36136 90080-36136 / Bearing

Wheel Bearing, LEFT

$59.07 $44.30
6 90521-79002 90521-79002 / Snap Ring

Wheel Bearing Snap Ring, RIGHT

$3.10 $2.33
6 90521-79002 90521-79002 / Snap Ring

Wheel Bearing Snap Ring, LEFT

$3.10 $2.33
7 47781-20350 47781-20350 / Backing Plate

Splash Shield, RIGHT

ALL

$32.96 $24.72
7 47782-20350 47782-20350 / Backing Plate

Splash Shield, LEFT

ALL

$32.96 $24.72
7 47782-20350 47782-20350 / Backing Plate

CELICA; LEFT; GT-S

$32.96 $24.72
7 47781-20350 47781-20350 / Backing Plate

CELICA; RIGHT; GT

$32.96 $24.72
8 90148-60028 90148-60028 / Splash Shield Bolt

Splash Shield Bolt, RIGHT

- -
8 90148-60028 90148-60028 / Splash Shield Bolt

Splash Shield Bolt, LEFT

- -
9 47730-20640 47730-20640 / Caliper

Caliper, RIGHT

ALL

$344.99 $258.74
9 47750-20640 47750-20640 / Caliper

Caliper, LEFT

ALL

$344.99 $258.74
9 47750-20640 47750-20640 / Caliper

CELICA; GT; LEFT

$344.99 $258.74
9 47730-20640 47730-20640 / Caliper

CELICA; GT; RIGHT

$344.99 $258.74
10 47721-20460 47721-20460 / Caliper Mount

Caliper Mount, RIGHT

ALL

$126.80 $95.10
10 47722-20150 47722-20150 / Caliper Mount

Caliper Mount, LEFT

ALL

$126.80 $95.10
11 04465-20540 04465-20540 / Brake Pads

ALL

$52.99 $39.74
11 04465-20540 04465-20540 / Brake Pads

Front Pads

CELICA; GT-S

$52.99 $39.74
12 90947-02C24 90947-02C24 / Brake Hose

Brake Hose, LEFT

$75.37 $56.53
12 90947-02C23 90947-02C23 / Brake Hose

Brake Hose, RIGHT

$75.37 $56.53
12 90947-02C23 90947-02C23 / Brake Hose

Flex Hose

CELICA; FRONT; RIGHT

$75.37 $56.53
12 90947-02C24 90947-02C24 / Brake Hose

Flex Hose

CELICA; FRONT; LEFT

$75.37 $56.53
13 90468-08040 90468-08040 / Brake Hose Retainer

Brake Hose Retainer, LEFT

$2.36 $1.77
13 90468-08040 90468-08040 / Brake Hose Retainer

Brake Hose Retainer, RIGHT

$2.36 $1.77
14 89542-20140 89542-20140 / Speed Sensor

Speed Sensor, RIGHT

$267.44 $200.58
14 89543-20140 89543-20140 / Speed Sensor

Speed Sensor, LEFT

$267.44 $200.58
14 89543-20140 89543-20140 / Speed Sensor

Front Speed Sensor

CELICA; LEFT

$267.44 $200.58
14 89542-20140 89542-20140 / Speed Sensor

Front Speed Sensor

CELICA; RIGHT

$267.44 $200.58
No. Part # Part # / Description List Price Price

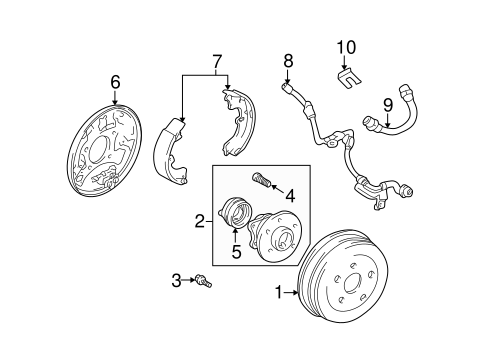

1 42431-02100 42431-02100 / Drum

Drum, LEFT

DRUM BRAKES

$111.47 $83.60
1 42431-02100 42431-02100 / Drum

Drum, RIGHT

DRUM BRAKES

$111.47 $83.60
1 42431-02100 42431-02100 / Drum

CELICA; GT

$111.47 $83.60
2 42410-01020 42410-01020 / Hub & Bearing

Hub Assembly, LEFT

DRUM BRAKES, W/O ABS

$407.14 $305.36
2 42410-01020 42410-01020 / Hub & Bearing

Hub Assembly, RIGHT

DRUM BRAKES, W/O ABS

$407.14 $305.36
3 90105-10502 90105-10502 / Hub Assembly Bolt

Hub Assembly Bolt, LEFT

DRUM BRAKES

$1.61 $1.21
3 90105-10502 90105-10502 / Hub Assembly Bolt

Hub Assembly Bolt, RIGHT

DRUM BRAKES

$1.61 $1.21
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, LEFT

DRUM BRAKES

$4.17 $3.13
5 89544-20010 89544-20010 / ABS Sensor

ABS Sensor, LEFT

DRUM BRAKES, NSK

$166.50 $124.88
5 89544-32040 89544-32040 / ABS Sensor

ABS Sensor, LEFT

DRUM BRAKES, TOYOTA/KOYO

$166.50 $124.88
5 89544-32040 89544-32040 / ABS Sensor

ABS Sensor, RIGHT

DRUM BRAKES, TOYOTA/KOYO

$166.50 $124.88
5 89544-32040 89544-32040 / ABS Sensor

Rear Sensor Ring

CELICA; KOYO

$166.50 $124.88
6 47043-20140 47043-20140 / Backing Plate

Backing Plate, RIGHT

DRUM BRAKES

$67.52 $50.64
6 47044-20140 47044-20140 / Backing Plate

Backing Plate, LEFT

DRUM BRAKES

$67.52 $50.64
6 47044-20140 47044-20140 / Backing Plate

CELICA; REAR DRUM BRAKE; LEFT; GT

$67.52 $50.64
6 47043-20140 47043-20140 / Backing Plate

CELICA; REAR DRUM BRAKE; RIGHT; GT

$67.52 $50.64
7 04495-47010 04495-47010 / Shoes

Brake Shoes

DRUM BRAKES

$57.54 $43.16
7 04495-47010 04495-47010 / Shoes

CELICA; GT

$57.54 $43.16
8 89516-20020 89516-20020 / ABS Sensor Wire

ABS Sensor Wire, LEFT

DRUM BRAKES

$43.47 $32.60
8 89516-20010 89516-20010 / ABS Sensor Wire

ABS Sensor Wire, RIGHT

DRUM BRAKES

$43.47 $32.60
8 89516-20010 89516-20010 / ABS Sensor Wire

Rear Speed Sensor

CELICA; RIGHT

$43.47 $32.60
8 89516-20020 89516-20020 / ABS Sensor Wire

Rear Speed Sensor

CELICA; LEFT

$43.47 $32.60
9 90947-02C25 90947-02C25 / Brake Hose

Brake Hose, LEFT

DRUM BRAKES

$46.06 $34.55
9 90947-02C25 90947-02C25 / Brake Hose

Brake Hose, RIGHT

DRUM BRAKES

$46.06 $34.55
9 90947-02C25 90947-02C25 / Brake Hose

Flex Hose

CELICA; REAR; GT

$46.06 $34.55
No. Part # Part # / Description List Price Price

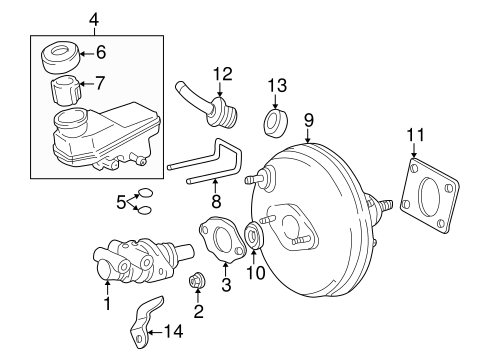

1 47207-20141 47207-20141 / Master Cylinder

CELICA; ALL; FROM 11/03

$248.79 $186.59
2 90080-18070 90080-18070 / Positive Term Nut

Master Cylinder Nut

$1.26 $0.95
3 47275-52010 47275-52010 / Master Cylinder Gasket

$2.33 $1.75
4 47220-20271 47220-20271 / Reservoir Assembly

AUTO TRANS

$181.07 $135.80
4 47220-20281 47220-20281 / Reservoir Assembly

MANUAL TRANS

$181.07 $135.80
5 47255-52010 47255-52010 / Reservoir Assembly Grommet

$3.62 $2.72
6 47230-48091 47230-48091 / Reservoir Cap

Cap

$7.41 $5.56
7 47299-52010 47299-52010 / Strainer

$7.10 $5.33
8 47237-20020 47237-20020 / Stopper

$4.71 $3.53
9 44610-2G080 44610-2G080 / Brake Booster

Booster Assembly

ALL

$723.97 $542.98
9 44610-2G080 44610-2G080 / Brake Booster

CELICA; GT-S

$723.97 $542.98
10 44604-52070 44604-52070 / Booster Assembly Seal

$12.50 $9.38
11 44785-02010 44785-02010 / Booster Assembly Mount Gasket

Booster Assembly Gasket

$5.11 $3.83
12 44730-10020 44730-10020 / Check Valve

$41.43 $31.07
13 90480-24015 90480-24015 / Valve Grommet

Check Valve Grommet

$3.62 $2.72
14 44758-20350 44758-20350 / Check Valve Bracket

$5.11 $3.83
No. Part # Part # / Description List Price Price
1 42431-47030 42431-47030 / Rotor

Rotor, LEFT

DISC BRAKES

$77.32 $57.99
1 42431-47030 42431-47030 / Rotor

Rotor, RIGHT

DISC BRAKES

$77.32 $57.99
1 42431-47030 42431-47030 / Rotor

CELICA; GT-S

$77.32 $57.99
2 42450-63011 42450-63011 / Hub Assembly

Hub Assembly, LEFT

DISC BRAKES, W/ABS

$432.13 $324.10
2 42450-63011 42450-63011 / Hub Assembly

Hub Assembly, RIGHT

DISC BRAKES, W/ABS

$432.13 $324.10
4 90942-02049 90942-02049 / Wheel Stud

Wheel Stud, RIGHT

DISC BRAKES

$4.17 $3.13
5 89544-20010 89544-20010 / ABS Sensor

ABS Sensor, RIGHT

DISC BRAKES, NSK

$166.50 $124.88
5 89544-20010 89544-20010 / ABS Sensor

Rear Sensor Ring

CELICA; NSK

$166.50 $124.88
6 46503-20070 46503-20070 / Backing Plate

Backing Plate, RIGHT

DISC BRAKES

$291.83 $218.87
6 46504-20070 46504-20070 / Backing Plate

Backing Plate, LEFT

DISC BRAKES

$291.83 $218.87
6 46503-20070 46503-20070 / Backing Plate

CELICA; REAR DISC/PARK BRAKE; GT-S; RIGHT

$291.83 $218.87
6 46504-20070 46504-20070 / Backing Plate

CELICA; REAR DISC/PARK BRAKE; GT-S; LEFT

$291.83 $218.87
7 47750-20620 47750-20620 / Caliper

Caliper, LEFT

DISC BRAKES

$287.50 $215.63
7 47730-20630 47730-20630 / Caliper

Caliper, RIGHT

DISC BRAKES

$287.50 $215.63
7 47750-20620 47750-20620 / Caliper

CELICA; LEFT; GT-S

$287.50 $215.63
7 47730-20630 47730-20630 / Caliper

CELICA; RIGHT; GT-S

$287.50 $215.63
8 04466-20090 04466-20090 / Brake Pads

DISC BRAKES

$47.99 $35.99
8 04466-20090 04466-20090 / Brake Pads

Rear Pads

CELICA; GT-S

$47.99 $35.99
10 90947-02A37 90947-02A37 / Brake Hose

Brake Hose, LEFT

DISC BRAKES

$39.28 $29.46
10 90947-02A37 90947-02A37 / Brake Hose

Brake Hose, RIGHT

DISC BRAKES

$39.28 $29.46
10 90947-02A37 90947-02A37 / Brake Hose

Flex Hose

CELICA; REAR; GT-S

$39.28 $29.46
11 90468-08040 90468-08040 / Brake Hose Retainer

Brake Hose Retainer, LEFT

DISC BRAKES

$2.36 $1.77
11 90468-08040 90468-08040 / Brake Hose Retainer

Brake Hose Retainer, RIGHT

DISC BRAKES

$2.36 $1.77
No. Part # Part # / Description List Price Price
N/A 47207-20140 47207-20140 / Master Cylinder

CELICA; ALL; TO 11/03

$282.12 $211.59
N/A 47150-02020 47150-02020 / Valve

Pressure Metering Valve

CELICA; GT-S

$286.06 $214.55
No. Part # Part # / Description List Price Price
N/A 47150-12230 47150-12230 / Pressure Metering Valve

CELICA; GT

$324.99 $243.74
