FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2004 Toyota Camry

Select FUEL SYSTEM COMPONENTS Part

2004 Toyota Camry

Change vehicle

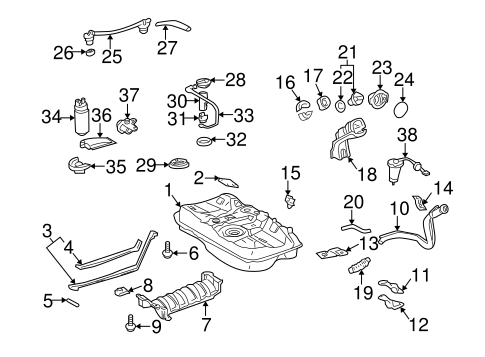

FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2004 Toyota Camry #1
No. Part # Part # / Description List Price Price
1 77001-06112 77001-06112 / Fuel Tank

JAPAN BUILT

- -
2 77652-33020 77652-33020 / Fuel Tank Cushion

$7.79 $5.71
3 77601-07010 77601-07010 / Mount Strap

Mount Strap, RIGHT

JAPAN BUILT

$56.60 $41.52
3 77602-33050 77602-33050 / Mount Strap

Mount Strap, LEFT

JAPAN BUILT

$56.60 $41.52
3 77602-07010 77602-07010 / Mount Strap

Mount Strap, LEFT

US BUILT

$56.60 $41.52
4 77681-32060 77681-32060 / Mount Strap Insulator

Mount Strap Insulator, RIGHT

$28.13 $20.63
4 77681-32060 77681-32060 / Mount Strap Insulator

Mount Strap Insulator, LEFT

$28.13 $20.63
5 90250-08019 90250-08019 / Mount Strap Pin

Mount Strap Pin, RIGHT

$5.83 $4.28
5 90250-08019 90250-08019 / Mount Strap Pin

Mount Strap Pin, LEFT

$5.83 $4.28
6 90080-11267 90080-11267 / Mount Strap Bolt

Mount Strap Bolt, RIGHT

$1.35 $0.99
6 90080-11267 90080-11267 / Mount Strap Bolt

Mount Strap Bolt, LEFT

$1.35 $0.99
7 77631-06011 77631-06011 / Tank Shield

$62.61 $45.92
8 90185-06002 90185-06002 / Tank Shield Fastener

$2.30 $1.68
9 90080-11169 90080-11169 / Heat Shield Bolt

Tank Shield Bolt

$0.66 $0.49
10 77201-06090 77201-06090 / Filler Neck

JAPAN BUILT

$252.53 $185.22
11 77216-06030 77216-06030 / Breather Tube Support

Filler Neck Support

#1

$14.11 $10.35
12 77217-06040 77217-06040 / Breather Tube Support

Filler Neck Support

#2

$11.06 $8.11
13 77218-06050 77218-06050 / Filler Neck Support

#3, US BUILT

$11.58 $8.49
13 77218-33060 77218-33060 / Filler Neck Support

#3, JAPAN BUILT

$7.86 $5.77
14 77272-33020 77272-33020 / Filler Neck Support

#4, JAPAN BUILT

$14.39 $10.55
14 77272-06020 77272-06020 / Filler Neck Support

#4, US BUILT

$14.42 $10.58
15 77229-06040 77229-06040 / Breather Tube Clamp

Filler Neck Clamp

$2.93 $2.15
16 77219-06020 77219-06020 / Filler Neck Upper Cover

$9.31 $6.83
17 77248-06020 77248-06020 / Holder

Filler Neck Holder

$3.71 $2.72
18 77277-33070 77277-33070 / Pipe Shield

JAPAN BUILT

$72.52 $53.19
18 77277-AA030 77277-AA030 / Pipe Shield

US BUILT

$120.62 $88.47
19 77213-33100 77213-33100 / Filler Hose

Connector Hose

JAPAN BUILT

$42.44 $31.12
19 77213-06040 77213-06040 / Connector Hose

US BUILT

$42.44 $31.12
20 77226-06040 77226-06040 / Breather Tube

$58.36 $42.80
21 77300-33070 77300-33070 / Filler Cap

$23.59 $17.30
22 77316-33042 77316-33042 / Filler Cap Gasket

$6.58 $4.83
23 77291-33040 77291-33040 / Pocket

JAPAN BUILT

$31.84 $23.35
23 77291-AA031 77291-AA031 / Pocket

US BUILT

- -
24 77391-02040 77391-02040 / Pocket O-Ring

OUTER

$2.93 $2.15
24 77391-12040 77391-12040 / Pocket O-Ring

INNER, JAPAN BUILT

$3.53 $2.59
24 77391-20030 77391-20030 / Pocket O-Ring

INNER, US BUILT

$3.48 $2.55
28 77024-06040 77024-06040 / Suction Valve

Plate

FUEL SUCTION, US BUILT

$40.68 $29.84
29 77168-33060 77168-33060 / Fuel Pump Assembly Plate

Plate

VENT TUBE

$18.70 $13.73
30 23300-0A020 23300-0A020 / Fuel Filter

CAMRY

$38.23 $28.04
31 77175-06020 77175-06020 / Fuel Filter Support

JAPAN BUILT

$10.11 $7.42
32 77169-33020 77169-33020 / Fuel Pump Gasket

Fuel Filter Gasket

$15.37 $11.27
33 77209-06030 77209-06030 / Suction Tube

Tube

$36.09 $26.47
34 23221-0A030 23221-0A030 / Fuel Pump

2.4 LITER

$378.98 $277.96
35 23249-0A020 23249-0A020 / Fuel Pump Cushion

$18.39 $13.49
36 23217-0C010 23217-0C010 / Fuel Filter

Fuel Strainer

$14.28 $10.48
37 23280-22010 23280-22010 / Fuel Pressure Regulator

Pressure Reg

2.4 LITER

$151.39 $111.04
37 23280-22010 23280-22010 / Fuel Pressure Regulator

CAMRY; 2.4L; FEDERAL

$151.39 $111.04
38 83320-06010 83320-06010 / Fuel Gauge Sending Unit

Gauge Unit

- -
38 83320-06010 83320-06010 / Fuel Gauge Sending Unit

CAMRY

- -
No. Part # Part # / Description List Price Price
layer_9 77203-06020 77203-06020 / Suction Tube

$37.50 $27.50
N/A 78010-33010 78010-33010 / Pedal Travel Sensor

CAMRY; W/O ADJUSTABLE PEDAL

$537.61 $394.32
layer_1 77001-06082 77001-06082 / Fuel Tank

CAMRY; 2.4L; CALIFORNIA

- -
N/A 23209-0H030 23209-0H030 / Injector

CAMRY; 2.4L; FEDERAL; JAPAN BUILT; AUTO TRANS; MARK 232500H030

$161.64 $118.56
N/A 78030-33022 78030-33022 / Pedal Travel Sensor

CAMRY; W/ADJUSTABLE PEDAL

$257.13 $188.59
No. Part # Part # / Description List Price Price
N/A 23814-0H010 23814-0H010 / Fuel Rail

CAMRY; 2.4L

$66.86 $49.04
N/A 23209-0H050 23209-0H050 / Injector

CAMRY; 2.4L; CALIFORNIA

$161.64 $118.56
layer_37 23280-20060 23280-20060 / Fuel Pressure Regulator

CAMRY; 2.4L; CALIFORNIA

$150.67 $110.51
N/A 23209-0H010 23209-0H010 / Injector

CAMRY; 2.4L; FEDERAL; USA BUILT; TO 9/03

$177.90 $130.48
