BODY/BUMPER & COMPONENTS - REAR for 2004 Toyota Avalon

Select BUMPER & COMPONENTS - REAR Part

2004 Toyota Avalon

Change vehicle

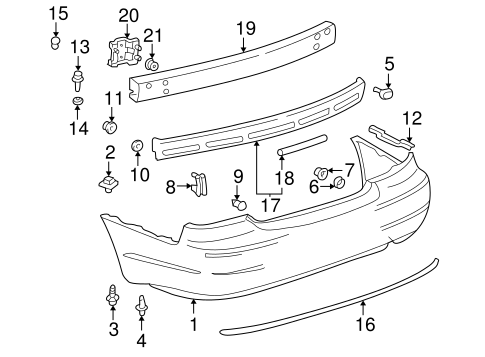

No. Part # Part # / Description List Price Price
1 52159-AC903 52159-AC903 / Bumper Cover

- -
2 52197-16020 52197-16020 / Bumper Cover Bracket

Bumper Cover Bracket, RIGHT

$1.78 $1.31
2 52197-16020 52197-16020 / Bumper Cover Bracket

Bumper Cover Bracket, LEFT

$1.78 $1.31
3 90080-15077 90080-15077 / Bumper Cover Screw

Bumper Cover Bolt, RIGHT

$0.98 $0.72
3 90080-15077 90080-15077 / Bumper Cover Screw

Bumper Cover Bolt, LEFT

$0.98 $0.72
4 90467-A0008 90467-A0008 / Bumper Cover Clip

Bumper Cover Fastener, LEFT

$0.98 $0.72
4 90467-A0008 90467-A0008 / Bumper Cover Clip

Bumper Cover Fastener, RIGHT

$0.98 $0.72
5 52791-12040 52791-12040 / Bumper Cover Bolt

Mount Bolt

$1.70 $1.24
6 90430-05013 90430-05013 / Bumper Cover Seal

Mount Bolt Washer

$1.81 $1.33
7 90179-06274 90179-06274 / Tail Lamp Assembly Nut

Mount Bolt Nut

$0.98 $0.72
8 52575-AC020 52575-AC020 / Retainer

Retainer, LEFT

$7.15 $5.25
8 52575-AC020 52575-AC020 / Retainer

Retainer, RIGHT

$7.15 $5.25
9 90269-03053 90269-03053 / Side Support Bolt

Retainer Rivet, RIGHT

$0.72 $0.52
9 90269-03053 90269-03053 / Side Support Bolt

Retainer Rivet, LEFT

$0.72 $0.52
10 90430-05188 90430-05188 / Bumper Cover Washer

Retainer Washer, RIGHT

$1.35 $0.99
10 90430-05188 90430-05188 / Bumper Cover Washer

Retainer Washer, LEFT

$1.35 $0.99
11 90179-06274 90179-06274 / Tail Lamp Assembly Nut

Retainer Nut, LEFT

$0.98 $0.72
11 90179-06274 90179-06274 / Tail Lamp Assembly Nut

Retainer Nut, RIGHT

$0.98 $0.72
12 52562-AC010 52562-AC010 / Upper Retainer

Upper Retainer, RIGHT

$12.96 $9.50
12 52562-AC010 52562-AC010 / Upper Retainer

Upper Retainer, LEFT

$12.96 $9.50
13 90084-11012 90084-11012 / Side Support Bolt

Upper Retainer Bolt, LEFT

U.S. BUILT

$1.03 $0.76
13 90119-A0251 90119-A0251 / Upper Retainer Bolt

Upper Retainer Bolt, RIGHT

JAPAN BUILT

$0.66 $0.49
13 90084-11012 90084-11012 / Side Support Bolt

Upper Retainer Bolt, RIGHT

U.S. BUILT

$1.03 $0.76
13 90119-A0251 90119-A0251 / Upper Retainer Bolt

Upper Retainer Bolt, LEFT

JAPAN BUILT

$0.66 $0.49
14 90430-06003 90430-06003 / Side Support Washer

Upper Retainer Washer, RIGHT

$1.44 $1.05
14 90430-06003 90430-06003 / Side Support Washer

Upper Retainer Washer, LEFT

$1.44 $1.05
15 90269-03053 90269-03053 / Side Support Bolt

Upper Retainer Clip, LEFT

$0.72 $0.52
15 90269-03053 90269-03053 / Side Support Bolt

Upper Retainer Clip, RIGHT

$0.72 $0.52
16 52751-AC020 52751-AC020 / Molding

$85.94 $63.04
17 52615-AC030 52615-AC030 / Energy Absorber

$95.36 $69.94
18 52172-AA010 52172-AA010 / Reinforcement Reinforced Bar

Center Reinforced

$42.97 $31.51
19 52171-AC040 52171-AC040 / Reinforce Bar

$287.44 $210.83
20 52176-AC020 52176-AC020 / Mount Bracket

Mount Bracket, LEFT

$82.40 $60.44
20 52175-AC010 52175-AC010 / Mount Bracket

Mount Bracket, RIGHT

$82.40 $60.44
21 90080-17262 90080-17262 / Rear Brace Nut

Mount Bracket Nut, RIGHT

$1.95 $1.43
21 90080-17262 90080-17262 / Rear Brace Nut

Mount Bracket Nut, LEFT

$1.95 $1.43
