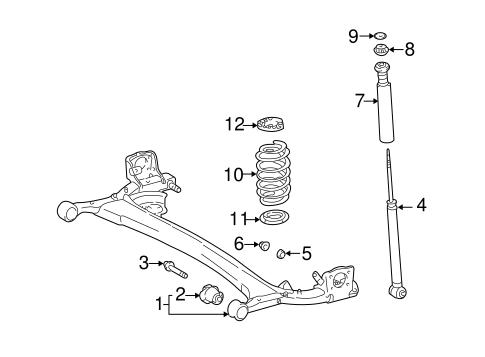

REAR SUSPENSION/REAR SUSPENSION for 2004 Scion xA

Select REAR SUSPENSION Part

2004 Scion xA

Change vehicle

No. Part # Part # / Description List Price Price
1 42110-52140 42110-52140 / Axle Assembly

Axle Beam

$1,446.73 $1,061.12
2 48725-52021 48725-52021 / Axle Beam Bushing

Axle Beam Bushing, LEFT

$68.96 $50.58
2 48725-52021 48725-52021 / Axle Beam Bushing

Axle Beam Bushing, RIGHT

$68.96 $50.58
3 90119-12342 90119-12342 / Axle Beam Mount Bolt

Axle Beam Mount Bolt, LEFT

$5.09 $3.73
3 90119-12342 90119-12342 / Axle Beam Mount Bolt

Axle Beam Mount Bolt, RIGHT

$5.09 $3.73
4 48530-80195 48530-80195 / Shock Absorber

Shock, LEFT

$79.95 $58.63
4 48530-80195 48530-80195 / Shock Absorber

Shock, RIGHT

$79.95 $58.63
5 90560-12065 90560-12065 / Shock Spacer

Shock Spacer, RIGHT

$3.28 $2.40
5 90560-12065 90560-12065 / Shock Spacer

Shock Spacer, LEFT

$3.28 $2.40
6 90178-12010 90178-12010 / Top Nut

Shock Nut, LEFT

$1.67 $1.22
6 90178-12010 90178-12010 / Top Nut

Shock Nut, RIGHT

$1.67 $1.22
7 48750-52090 48750-52090 / Shock Mount

Support, LEFT

$52.32 $38.38
7 48750-52090 48750-52090 / Shock Mount

Support, RIGHT

$52.32 $38.38
8 48755-52070 48755-52070 / Bushing

Bushing, LEFT

$15.29 $11.21
8 48755-52070 48755-52070 / Bushing

Bushing, RIGHT

$15.29 $11.21
9 90201-10320 90201-10320 / Upper Support Washer

Bushing Retainer, LEFT

$5.20 $3.82
9 90201-10320 90201-10320 / Upper Support Washer

Bushing Retainer, RIGHT

$5.20 $3.82
10 48231-52170 48231-52170 / Coil Spring

Spring, LEFT

$118.57 $86.97
10 48231-52170 48231-52170 / Coil Spring

Spring, RIGHT

$118.57 $86.97
11 48258-52010 48258-52010 / Lower Insulator

Lower Insulator, LEFT

$5.49 $4.03
11 48258-52010 48258-52010 / Lower Insulator

Lower Insulator, RIGHT

$5.49 $4.03
12 48257-52010 48257-52010 / Upper Insulator

Upper Insulator, LEFT

$8.68 $6.37
12 48257-52010 48257-52010 / Upper Insulator

Upper Insulator, RIGHT

$8.68 $6.37
REAR SUSPENSION/REAR SUSPENSION for 2004 Scion xA #2
No. Part # Part # / Description List Price Price
1 48530-80195 48530-80195 / Shock Absorber

XA; TO 10/04

$79.95 $58.63
2 48750-52090 48750-52090 / Shock Mount

Support

XA

$52.32 $38.38
3 48231-52170 48231-52170 / Coil Spring

XA; TO 10/04

$118.57 $86.97
4 48257-52010 48257-52010 / Upper Insulator

Upper Spring Insulator

XA

$8.68 $6.37
5 48258-52010 48258-52010 / Lower Insulator

Lower Spring Insulator

XA

$5.49 $4.03
6 42450-52021 42450-52021 / Hub Assembly

Hub & Bearing Assembly

XA

$406.76 $298.34
7 42110-52140 42110-52140 / Axle Assembly

XA

$1,446.73 $1,061.12
8 48725-52021 48725-52021 / Axle Beam Bushing

Axle Bushing

XA

$68.96 $50.58
