FRONT SUSPENSION/SUSPENSION COMPONENTS for 2003 Toyota Prius

Select SUSPENSION COMPONENTS Part

2003 Toyota Prius

Change vehicle

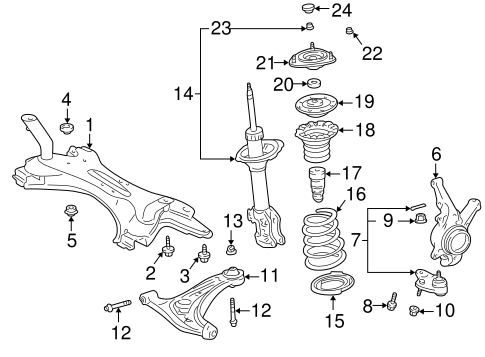

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2003 Toyota Prius #1
No. Part # Part # / Description List Price Price
1 51201-47021 51201-47021 / Engine Cradle

$1,635.54 $1,199.59
2 90119-14050 90119-14050 / Suspension Cross-Member Bolt

Engine Cradle Bolt, LEFT

FRONT

$6.38 $4.67
2 90119-14050 90119-14050 / Suspension Cross-Member Bolt

Engine Cradle Bolt, RIGHT

FRONT

$6.38 $4.67
3 90119-A0014 90119-A0014 / Engine Cradle Rear Bolt

Engine Cradle Bolt, RIGHT

REAR

$6.29 $4.61
3 90119-A0014 90119-A0014 / Engine Cradle Rear Bolt

Engine Cradle Bolt, LEFT

REAR

$6.29 $4.61
4 90950-01392 90950-01392 / Hood Hole Plug

Engine Cradle Grommet, LEFT

UPPER

$1.58 $1.16
4 90950-01392 90950-01392 / Hood Hole Plug

Engine Cradle Grommet, RIGHT

UPPER

$1.58 $1.16
5 90950-01398 90950-01398 / Engine Cradle Grommet

Engine Cradle Grommet, RIGHT

LOWER

$1.49 $1.10
5 90950-01398 90950-01398 / Engine Cradle Grommet

Engine Cradle Grommet, LEFT

LOWER

$1.49 $1.10
6 43211-47011 43211-47011 / Knuckle

Knuckle, RIGHT

$281.75 $206.66
6 43212-47011 43212-47011 / Knuckle

Knuckle, LEFT

$281.75 $206.66
7 43330-09230 43330-09230 / Ball Joint

Lower Ball Joint, RIGHT

$74.40 $54.57
7 43330-09230 43330-09230 / Ball Joint

Lower Ball Joint, LEFT

$74.40 $54.57
8 90080-10130 90080-10130 / Ball Joint Bolt

Lower Ball Joint Bolt, LEFT

$2.64 $1.94
8 90080-10130 90080-10130 / Ball Joint Bolt

Lower Ball Joint Bolt, RIGHT

$2.64 $1.94
9 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, RIGHT

$3.25 $2.38
9 90080-17214 90080-17214 / Lower Ball Joint Castle Nut

Lower Ball Joint Castle Nut, LEFT

$3.25 $2.38
10 90080-17222 90080-17222 / Stabilizer Link Nut

Lower Ball Joint Nut, LEFT

$2.70 $1.98
10 90080-17222 90080-17222 / Stabilizer Link Nut

Lower Ball Joint Nut, RIGHT

$2.70 $1.98
11 48069-47021 48069-47021 / Lower Control Arm

Lower Control Arm, LEFT

$240.83 $176.64
11 48068-47021 48068-47021 / Lower Control Arm

Lower Control Arm, RIGHT

$240.83 $176.64
12 90080-11506 90080-11506 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

$5.03 $3.68
12 90080-11506 90080-11506 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

$5.03 $3.68
13 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, RIGHT

$1.67 $1.22
13 90080-17223 90080-17223 / Ft Lateral Arm Nut

Lower Control Arm Nut, LEFT

$1.67 $1.22
14 48520-49335 48520-49335 / Strut

Strut, LEFT

$156.06 $114.46
14 48510-49225 48510-49225 / Strut

Strut, RIGHT

$156.06 $114.46
15 48158-47010 48158-47010 / Lower Insulator

Lower Insulator, RIGHT

$15.80 $11.59
15 48158-47010 48158-47010 / Lower Insulator

Lower Insulator, LEFT

$15.80 $11.59
16 48131-47050 48131-47050 / Coil Spring

Spring, RIGHT

$93.15 $68.32
16 48131-47060 48131-47060 / Coil Spring

Spring, LEFT

$104.29 $76.49
17 48331-47010 48331-47010 / Strut Bumper

Bumper, LEFT

$51.29 $37.61
17 48331-47010 48331-47010 / Strut Bumper

Bumper, RIGHT

$51.29 $37.61
18 48157-47010 48157-47010 / Upper Insulator

Upper Insulator, LEFT

$39.97 $29.32
18 48157-47010 48157-47010 / Upper Insulator

Upper Insulator, RIGHT

$39.97 $29.32
19 48044-47010 48044-47010 / Spring Seat

Seat, RIGHT

$21.46 $15.74
19 48044-47010 48044-47010 / Spring Seat

Seat, LEFT

$21.46 $15.74
20 90303-22049 90303-22049 / Seal

Dust Seal, LEFT

$5.23 $3.83
20 90303-22049 90303-22049 / Seal

Dust Seal, RIGHT

$5.23 $3.83
21 48609-47020 48609-47020 / Strut Mount

Support, RIGHT

$124.50 $91.32
21 48609-47020 48609-47020 / Strut Mount

Support, LEFT

$124.50 $91.32
22 90178-08010 90178-08010 / Strut Mount Nut

Support Nut, RIGHT

$1.35 $0.99
22 90178-08010 90178-08010 / Strut Mount Nut

Support Nut, LEFT

$1.35 $0.99
23 94182-11400 94182-11400 / Upper Mount Nut

Top Nut, LEFT

$6.09 $4.47
23 94182-11400 94182-11400 / Upper Mount Nut

Top Nut, RIGHT

$6.09 $4.47
24 48684-12070 48684-12070 / Dust Cover

Cover, LEFT

$12.35 $9.06
24 48684-12070 48684-12070 / Dust Cover

Cover, RIGHT

$12.35 $9.06

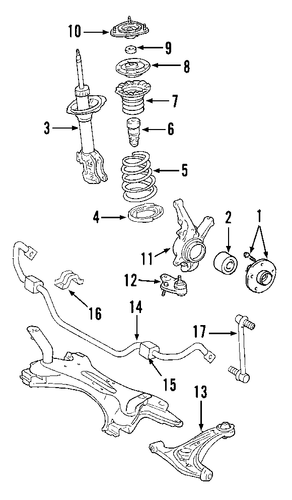

FRONT SUSPENSION/SUSPENSION COMPONENTS for 2003 Toyota Prius #2
No. Part # Part # / Description List Price Price
1 43502-12140 43502-12140 / Front Hub

PRIUS

$127.51 $93.53
2 90080-36136 90080-36136 / Bearing

Front Wheel Bearing

PRIUS

$59.76 $43.83
3 48510-49225 48510-49225 / Strut

PRIUS; RIGHT

$156.06 $114.46
3 48520-49335 48520-49335 / Strut

PRIUS; LEFT

$156.06 $114.46
4 48158-47010 48158-47010 / Lower Insulator

PRIUS

$15.80 $11.59
5 48131-47060 48131-47060 / Coil Spring

PRIUS; LEFT

$104.29 $76.49
5 48131-47050 48131-47050 / Coil Spring

PRIUS; RIGHT

$93.15 $68.32
6 48331-47010 48331-47010 / Strut Bumper

PRIUS

$51.29 $37.61
7 48157-47010 48157-47010 / Upper Insulator

PRIUS

$39.97 $29.32
8 48044-47010 48044-47010 / Spring Seat

PRIUS

$21.46 $15.74
9 90303-22049 90303-22049 / Seal

PRIUS

$5.23 $3.83
10 48609-47020 48609-47020 / Strut Mount

PRIUS

$124.50 $91.32
11 43211-47011 43211-47011 / Knuckle

PRIUS; RIGHT

$281.75 $206.66
11 43212-47011 43212-47011 / Knuckle

PRIUS; LEFT

$281.75 $206.66
12 43330-09230 43330-09230 / Ball Joint

Lower Ball Joint

PRIUS

$74.40 $54.57
13 48068-47021 48068-47021 / Lower Control Arm

PRIUS; RIGHT

$240.83 $176.64
13 48069-47021 48069-47021 / Lower Control Arm

PRIUS; LEFT

$240.83 $176.64
14 48811-47030 48811-47030 / Stabilizer Bar

PRIUS

$128.12 $93.96
15 48815-28120 48815-28120 / Stabilizer Bar Bushing

Bushings

PRIUS

$11.18 $8.20
16 48824-47010 48824-47010 / Stabilizer Bar Bracket

Bracket

PRIUS

$15.72 $11.53
17 48820-02030 48820-02030 / Stabilizer Link

Link

PRIUS

$119.18 $87.41
