REAR SUSPENSION/REAR SUSPENSION for 2003 Toyota Highlander

Select REAR SUSPENSION Part

2003 Toyota Highlander

Change vehicle

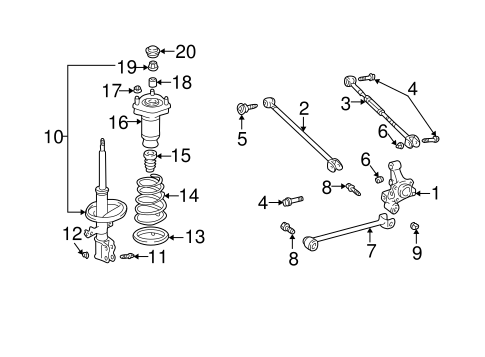

REAR SUSPENSION/REAR SUSPENSION for 2003 Toyota Highlander #1
No. Part # Part # / Description List Price Price
layer_16 48760-48030 48760-48030 / Strut Mount

HIGHLANDER; FWD; LEFT

$143.35 $105.14
layer_16 48750-48030 48750-48030 / Strut Mount

HIGHLANDER; FWD; RIGHT

$143.35 $105.14
layer_20 48760-48010 48760-48010 / Strut Mount

HIGHLANDER; AWD; LEFT

$138.81 $101.81
layer_20 48750-48010 48750-48010 / Strut Mount

HIGHLANDER; AWD; RIGHT

$138.81 $101.81
1 51206-48020 51206-48020 / Cross-Member

HIGHLANDER; AWD

$1,149.49 $843.09
1 51206-0E014 51206-0E014 / Cross-Member

HIGHLANDER; FWD

$615.78 $451.64
2 42450-48011 42450-48011 / Hub & Bearing

Hub & Bearing Assembly

HIGHLANDER; FWD; RIGHT

$512.87 $376.17
2 42460-48011 42460-48011 / Hub & Bearing

Hub & Bearing Assembly

HIGHLANDER; FWD; LEFT

$512.87 $376.17
3 42301-32060 42301-32060 / Hub

HIGHLANDER

$270.57 $198.46
4 90369-38019 90369-38019 / Wheel Bearings

HIGHLANDER; AWD

$129.58 $95.04
5 90311-52005 90311-52005 / Seal

Wheel Seal

HIGHLANDER; AWD; OUTER

$10.97 $8.04
5 90311-56031 90311-56031 / Inner Seal

Wheel Seal

HIGHLANDER; AWD; INNER

$10.93 $8.02
6 42305-06100 42305-06100 / Knuckle

HIGHLANDER; FWD; LEFT

$271.98 $199.48
6 42305-33020 42305-33020 / Knuckle

HIGHLANDER; AWD; LEFT

$233.08 $170.95
6 42304-06100 42304-06100 / Knuckle

HIGHLANDER; FWD; RIGHT

$271.98 $199.48
6 42304-33020 42304-33020 / Knuckle

HIGHLANDER; AWD; RIGHT

$233.08 $170.95
7 48780-48010 48780-48010 / Strut Rod

Trailing Arm

HIGHLANDER; AWD

$170.47 $125.03
7 48780-48020 48780-48020 / Strut Rod

Trailing Arm

HIGHLANDER; FWD

$149.95 $109.98
8 48530-49195 48530-49195 / Strut

HIGHLANDER; AWD; RIGHT

$209.60 $153.73
8 48540-49125 48540-49125 / Strut

HIGHLANDER; AWD; LEFT

$209.60 $153.73
8 48530-49215 48530-49215 / Strut

HIGHLANDER; FWD; RIGHT

$224.25 $164.48
8 48540-49145 48540-49145 / Strut

HIGHLANDER; FWD; LEFT

$224.25 $164.48
9 48341-48010 48341-48010 / Stopper

HIGHLANDER

$17.61 $12.92
10 48231-48151 48231-48151 / Coil Spring

HIGHLANDER; AWD

$139.07 $102.00
10 48231-48121 48231-48121 / Coil Spring

HIGHLANDER; FWD

$128.68 $94.38
11 48258-0E010 48258-0E010 / Spring Lower Insulator

Insulator

HIGHLANDER

$14.25 $10.46
12 48710-48020 48710-48020 / Front Control Arm

Lower Control Arm

HIGHLANDER; FRONT; AWD

$175.44 $128.67
12 48730-48050 48730-48050 / Rear Control Arm

Lower Control Arm

HIGHLANDER; REAR; AWD

$190.29 $139.57
12 48740-48030 48740-48030 / Rear Lateral Arm

Lower Control Arm

HIGHLANDER; REAR; FWD; LEFT

$178.97 $131.27
12 48710-48030 48710-48030 / Front Control Arm

Lower Control Arm

HIGHLANDER; FRONT; FWD

$170.47 $125.03
12 48730-48070 48730-48070 / Rear Lateral Arm

Lower Control Arm

HIGHLANDER; REAR; FWD; RIGHT

$178.97 $131.27
13 48812-48070 48812-48070 / Stabilizer Bar

HIGHLANDER; FWD

$92.35 $67.73
13 48812-48080 48812-48080 / Stabilizer Bar

HIGHLANDER; AWD

$106.83 $78.35
14 48818-06090 48818-06090 / Stabilizer Bar Bushing

Bushings

HIGHLANDER; FWD

$14.14 $10.37
14 48818-06150 48818-06150 / Stabilizer Bar Bushing

Bushings

HIGHLANDER; AWD

$7.24 $5.31
15 48832-AA010 48832-AA010 / Bracket

Mounting Bracket

HIGHLANDER; FWD

$10.92 $8.00
15 48832-0E050 48832-0E050 / Stabilizer Bar Bracket

Mounting Bracket

HIGHLANDER; AWD; RIGHT; NO.2

$7.18 $5.27
15 48832-32070 48832-32070 / Stabilizer Bar Bracket

Mounting Bracket

HIGHLANDER; AWD; RIGHT; NO.1

$16.49 $12.10
15 48832-0E020 48832-0E020 / Stabilizer Bar Bracket

Mounting Bracket

HIGHLANDER; AWD; LEFT; NO.1

$14.37 $10.54
15 48832-0E030 48832-0E030 / Stabilizer Bar Bracket

Mounting Bracket

HIGHLANDER; AWD; LEFT; NO.2

$7.70 $5.65
16 48830-32040 48830-32040 / Stabilizer Link

Link

HIGHLANDER; AWD

$120.96 $88.72
16 48830-06030 48830-06030 / Stabilizer Link

Link

HIGHLANDER; FWD

$97.26 $71.33
REAR SUSPENSION/REAR SUSPENSION for 2003 Toyota Highlander #2
No. Part # Part # / Description List Price Price
1 42304-33020 42304-33020 / Knuckle

Knuckle, RIGHT

4WD

$233.08 $170.95
1 42305-33020 42305-33020 / Knuckle

Knuckle, LEFT

4WD

$233.08 $170.95
2 48710-48020 48710-48020 / Front Control Arm

Front Control Arm, LEFT

4WD

$175.44 $128.67
2 48710-48020 48710-48020 / Front Control Arm

Front Control Arm, RIGHT

4WD

$175.44 $128.67
3 48730-48050 48730-48050 / Rear Control Arm

Rear Control Arm, LEFT

4WD

$190.29 $139.57
3 48730-48050 48730-48050 / Rear Control Arm

Rear Control Arm, RIGHT

4WD

$190.29 $139.57
4 90901-19002 90901-19002 / Rear Control Arm Bolt

Rear Control Arm Bolt, RIGHT

4WD, OUTER

$24.14 $17.70
4 90901-19002 90901-19002 / Rear Control Arm Bolt

Rear Control Arm Bolt, LEFT

4WD, OUTER

$24.14 $17.70
5 90119-A0390 90119-A0390 / Axle Support Bolt Assembly

Rear Control Arm Bolt, RIGHT

4WD, INNER, FRONT

$15.98 $11.71
5 90119-A0390 90119-A0390 / Axle Support Bolt Assembly

Rear Control Arm Bolt, LEFT

4WD, INNER, FRONT

$15.98 $11.71
6 90119-12126 90119-12126 / Rear Control Arm Bolt

Rear Control Arm Bolt, RIGHT

4WD, INNER, REAR

$4.11 $3.01
6 90119-12126 90119-12126 / Rear Control Arm Bolt

Rear Control Arm Bolt, LEFT

4WD, INNER, REAR

$4.11 $3.01
7 90080-17265 90080-17265 / Outer Tie Rod Adjust Nut

Rear Control Arm Nut, LEFT

4WD, OUTER

$3.25 $2.38
7 90080-17265 90080-17265 / Outer Tie Rod Adjust Nut

Rear Control Arm Nut, RIGHT

4WD, OUTER

$3.25 $2.38
8 90080-17228 90080-17228 / Ft Lateral Arm Nut

Rear Control Arm Nut, RIGHT

4WD, INNER, FRONT

$7.53 $5.53
8 90080-17228 90080-17228 / Ft Lateral Arm Nut

Rear Control Arm Nut, LEFT

4WD, INNER, FRONT

$7.53 $5.53
9 90178-A0001 90178-A0001 / Control Arm Nut

Rear Control Arm Nut, LEFT

4WD, INNER, REAR

$1.64 $1.20
9 90178-A0001 90178-A0001 / Control Arm Nut

Rear Control Arm Nut, RIGHT

4WD, INNER, REAR

$1.64 $1.20
10 48409-32030 48409-32030 / Adjust Cam

Adjust Cam, LEFT

4WD

$12.24 $8.98
10 48409-32030 48409-32030 / Adjust Cam

Adjust Cam, RIGHT

4WD

$12.24 $8.98
11 48780-48010 48780-48010 / Strut Rod

Strut Rod, LEFT

4WD

$170.47 $125.03
11 48780-48010 48780-48010 / Strut Rod

Strut Rod, RIGHT

4WD

$170.47 $125.03
12 90080-11133 90080-11133 / Strut Rod Bolt

Strut Rod Bolt, RIGHT

4WD

$5.11 $3.75
12 90080-11133 90080-11133 / Strut Rod Bolt

Strut Rod Bolt, LEFT

4WD

$5.11 $3.75
13 90089-17059 90089-17059 / Strut Rod Nut

Strut Rod Nut, RIGHT

4WD

- -
13 90089-17059 90089-17059 / Strut Rod Nut

Strut Rod Nut, LEFT

4WD

- -
14 48530-49195 48530-49195 / Strut

Strut, RIGHT

4WD

$209.60 $153.73
14 48540-49125 48540-49125 / Strut

Strut, LEFT

4WD

$209.60 $153.73
15 90080-10398 90080-10398 / Strut Bolt

Strut Bolt, RIGHT

4WD

$10.31 $7.56
15 90080-10398 90080-10398 / Strut Bolt

Strut Bolt, LEFT

4WD

$10.31 $7.56
16 90178-A0028 90178-A0028 / Strut Nut

Strut Nut, RIGHT

4WD

$2.13 $1.56
16 90178-A0028 90178-A0028 / Strut Nut

Strut Nut, LEFT

4WD

$2.13 $1.56
17 48258-0E010 48258-0E010 / Spring Lower Insulator

Insulator, RIGHT

4WD

$14.25 $10.46
17 48258-0E010 48258-0E010 / Spring Lower Insulator

Insulator, LEFT

4WD

$14.25 $10.46
18 48231-48151 48231-48151 / Coil Spring

Spring, LEFT

4WD

$139.07 $102.00
18 48231-48151 48231-48151 / Coil Spring

Spring, RIGHT

4WD

$139.07 $102.00
19 48341-48010 48341-48010 / Stopper

Bumper, RIGHT

4WD

$17.61 $12.92
19 48341-48010 48341-48010 / Stopper

Bumper, LEFT

4WD

$17.61 $12.92
20 48760-48010 48760-48010 / Strut Mount

Support, LEFT

4WD

$138.81 $101.81
20 48750-48010 48750-48010 / Strut Mount

Support, RIGHT

4WD

$138.81 $101.81
21 90178-A0002 90178-A0002 / Strut Mount Nut

Support Nut, RIGHT

4WD

$1.35 $0.99
21 90178-A0002 90178-A0002 / Strut Mount Nut

Support Nut, LEFT

4WD

$1.35 $0.99
22 90080-38148 90080-38148 / Collar

Collar, LEFT

4WD

$9.02 $6.61
22 90080-38148 90080-38148 / Collar

Collar, RIGHT

4WD

$9.02 $6.61
23 90080-17212 90080-17212 / Strut Retainer Nut

Top Nut, RIGHT

4WD

$2.96 $2.17
23 90080-17212 90080-17212 / Strut Retainer Nut

Top Nut, LEFT

4WD

$2.96 $2.17
24 48753-06011 48753-06011 / Strut Mount Cover

Cover, LEFT

4WD

$4.42 $3.25
24 48753-06011 48753-06011 / Strut Mount Cover

Cover, RIGHT

4WD

$4.42 $3.25
No. Part # Part # / Description List Price Price
1 42304-06100 42304-06100 / Knuckle

Knuckle, RIGHT

2WD

$271.98 $199.48
1 42305-06100 42305-06100 / Knuckle

Knuckle, LEFT

2WD

$271.98 $199.48
2 48710-48030 48710-48030 / Front Control Arm

Front Control Arm, RIGHT

2WD

$170.47 $125.03
2 48710-48030 48710-48030 / Front Control Arm

Front Control Arm, LEFT

2WD

$170.47 $125.03
3 48730-48070 48730-48070 / Rear Lateral Arm

Rear Control Arm, RIGHT

2WD

$178.97 $131.27
3 48740-48030 48740-48030 / Rear Lateral Arm

Rear Control Arm, LEFT

2WD

$178.97 $131.27
4 90080-11672 90080-11672 / Ft Lateral Arm Mount Bolt

Rear Control Arm Bolt, LEFT

2WD, #1

$10.31 $7.56
4 90080-11672 90080-11672 / Ft Lateral Arm Mount Bolt

Rear Control Arm Bolt, RIGHT

2WD, #1

$10.31 $7.56
5 90080-11674 90080-11674 / Ft Lateral Arm Mount Bolt

Rear Control Arm Bolt, RIGHT

2WD, #2

$28.16 $20.65
5 90080-11674 90080-11674 / Ft Lateral Arm Mount Bolt

Rear Control Arm Bolt, LEFT

2WD, #2

$28.16 $20.65
6 90080-17223 90080-17223 / Ft Lateral Arm Nut

Rear Control Arm Nut, RIGHT

2WD

$1.67 $1.22
6 90080-17223 90080-17223 / Ft Lateral Arm Nut

Rear Control Arm Nut, LEFT

2WD

$1.67 $1.22
7 48780-48020 48780-48020 / Strut Rod

Strut Rod, RIGHT

2WD

$149.95 $109.98
7 48780-48020 48780-48020 / Strut Rod

Strut Rod, LEFT

2WD

$149.95 $109.98
10 48530-49215 48530-49215 / Strut

Strut, RIGHT

2WD

$224.25 $164.48
10 48540-49145 48540-49145 / Strut

Strut, LEFT

2WD

$224.25 $164.48
14 48231-48121 48231-48121 / Coil Spring

Spring, RIGHT

2WD

$128.68 $94.38
14 48231-48121 48231-48121 / Coil Spring

Spring, LEFT

2WD

$128.68 $94.38
16 48750-48030 48750-48030 / Strut Mount

Support, RIGHT

2WD

$143.35 $105.14
16 48760-48030 48760-48030 / Strut Mount

Support, LEFT

2WD

$143.35 $105.14
