HVAC/CONDENSER, COMPRESSOR & LINES for 2003 Toyota Corolla

Select CONDENSER, COMPRESSOR & LINES Part

2003 Toyota Corolla

Change vehicle

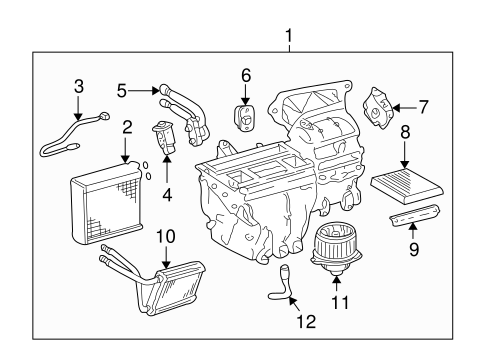

No. Part # Part # / Description List Price Price
1 87010-02230 87010-02230 / Heater Assembly

2003-04, W/AC, W/MARK 3

$3,085.71 $2,314.28
1 87010-02260 87010-02260 / Heater Assembly

2003-04, W/O AC, W/MARK 6

$1,639.29 $1,229.47
1 87010-02240 87010-02240 / Heater Assembly

2003-04, W/O AC, W/MARK 4

$1,639.29 $1,229.47
1 87010-02250 87010-02250 / Heater Assembly

2003-04, W/AC, W/MARK 5

$3,085.71 $2,314.28
2 88501-02080 88501-02080 / Evaporator Core

COROLLA

$384.79 $288.59
3 88625-02051 88625-02051 / Thermistor

2003-04

$41.91 $31.43
4 88515-07040 88515-07040 / Expansion Valve

COROLLA

$101.58 $76.19
5 88710-02250 88710-02250 / Tube

2003-04

$115.57 $86.68
6 87138-02080 87138-02080 / Resistor

COROLLA

$9.42 $7.07
7 87106-02020 87106-02020 / Servo

2003-04

$184.63 $138.47
8 88568-02020 88568-02020 / Cabin Air Filter

Filter

2003-04

$18.95 $14.21
9 88548-02030 88548-02030 / Filter Case

2003-04

$7.99 $5.99
10 87107-02100 87107-02100 / Heater Core

COROLLA; ALL

$489.83 $367.37
11 87103-02370 87103-02370 / Fan & Motor

2003-04

$195.72 $146.79
11 87103-02370 87103-02370 / Fan & Motor

Blower Motor

COROLLA; TO 01/07

$195.72 $146.79
12 88539-02060 88539-02060 / Drain Hose

2003-04

$3.68 $2.76
No. Part # Part # / Description List Price Price
1 88450-12231 88450-12231 / Condenser

JAPAN BUILT, TO 8/02

$431.19 $323.39
1 88450-02170 88450-02170 / Condenser

US BUILT, TO 5/04

$392.26 $294.20
2 88899-52050 88899-52050 / Condenser Bolt

$0.55 $0.41
3 88474-17010 88474-17010 / Dehydrator

$94.84 $71.13
4 88320-02120 88320-02120 / Compressor Assembly

Compressor

$505.06 $378.80
5 88410-02130 88410-02130 / Clutch & Pulley

$133.28 $99.96
5 88410-02130 88410-02130 / Clutch & Pulley

Clutch

COROLLA; JAPAN BUILT

$133.28 $99.96
6 90099-07114 90099-07114 / Clutch & Pulley Snap Ring

$1.05 $0.79
7 88403-02050 88403-02050 / Clutch Plate & Hub Assembly

Hub

$35.41 $26.56
8 88412-02130 88412-02130 / Clutch Coil

Rotor

$75.66 $56.75
8 88412-02130 88412-02130 / Clutch Coil

Pulley

COROLLA

$75.66 $56.75
9 88411-02050 88411-02050 / Clutch Coil

Stator

$46.28 $34.71
9 88411-02050 88411-02050 / Clutch Coil

COROLLA

$46.28 $34.71
10 88703-12670 88703-12670 / Discharge Hose

$128.02 $96.02
11 90069-08007 90069-08007 / Evaporator Core O-Ring

Discharge Hose Seal

$0.63 $0.47
12 88712-02220 88712-02220 / Suction Hose

$211.68 $158.76
13 90068-14010 90068-14010 / Suction Hose O-Ring

Suction Hose Seal

$4.88 $3.66
14 88375-02070 88375-02070 / Suction Hose Cap

$0.34 $0.26
15 88718-1A790 88718-1A790 / Suction Hose Retainer

REAR

$8.39 $6.29
15 88718-1A730 88718-1A730 / Suction Hose Retainer

FRONT

$12.26 $9.20
16 88688-02630 88688-02630 / Suction Hose Bracket

FRONT

$4.58 $3.44
16 88688-0Z040 88688-0Z040 / Suction Hose Bracket

REAR

$23.94 $17.96
17 88718-02160 88718-02160 / Suction Hose Clamp

$4.18 $3.14
18 90480-01405 90480-01405 / Grommet

Seal

TO HEATER CORE

$4.97 $3.73
19 88716-02350 88716-02350 / Liquid Line

$109.86 $82.40
20 90069-08011 90069-08011 / Liquid Line O-Ring

Liquid Line Seal

$2.39 $1.79
21 88375-02060 88375-02060 / Liquid Line Cap

Liquid Line Plug

$0.47 $0.35
22 88718-02170 88718-02170 / Liquid Line Clamp

$3.74 $2.81
23 88688-02710 88688-02710 / Liquid Line Bracket

$1.79 $1.34
24 88645-60030 88645-60030 / High Pressure Cut-Off Switch

Pressure Switch

$131.78 $98.84
24 88645-60030 88645-60030 / High Pressure Cut-Off Switch

Pressure Cut-Off Switch

ALL MODELS

$131.78 $98.84
25 90099-14122 90099-14122 / Pressure Switch Seal

$1.21 $0.91
No. Part # Part # / Description List Price Price
N/A 88335-2B030 88335-2B030 / Gasket Kit

COROLLA

$54.41 $40.81
N/A 88703-12590 88703-12590 / Discharge Hose

COROLLA; JAPAN BUILT

- -
N/A 88474-47010 88474-47010 / Dehydrator

Drier

COROLLA

$66.38 $49.79
N/A 88410-02110 88410-02110 / Clutch

COROLLA; USA BUILT

$767.87 $575.90
No. Part # Part # / Description List Price Price
N/A 88703-02112 88703-02112 / Discharge Hose

COROLLA; USA BUILT

$122.05 $91.54
N/A 88704-1A030 88704-1A030 / Suction Hose

COROLLA; JAPAN BUILT

$225.33 $169.00
N/A 88450-13031 88450-13031 / Condenser

COROLLA; JAPAN BUILT

$376.59 $282.44
