FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 2003 Toyota Avalon

Select FUEL SYSTEM COMPONENTS Part

2003 Toyota Avalon

Change vehicle

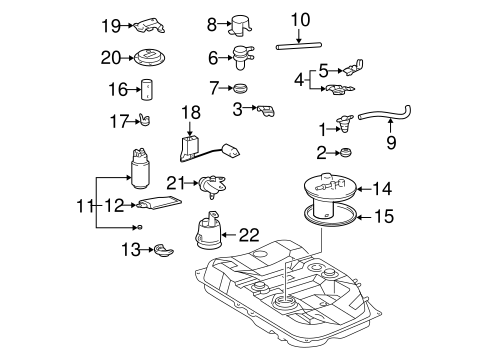

No. Part # Part # / Description List Price Price
1 77340-33020 77340-33020 / Cut-Off Valve

FUEL PUMP & COMPONENTS

$42.50 $31.88
2 77179-33010 77179-33010 / Cut-Off Valve Gasket

FUEL PUMP & COMPONENTS

$4.74 $3.56
3 77643-33030 77643-33030 / Cut-Off Valve Shield

FUEL PUMP & COMPONENTS, FRONT

$11.35 $8.51
4 77606-33010 77606-33010 / Cut-Off Valve Protector

Cut-Off Valve Shield

FUEL PUMP & COMPONENTS, REAR

$30.86 $23.15
5 77281-33010 77281-33010 / Cut-Off Valve Clamp

FUEL PUMP & COMPONENTS

$8.10 $6.08
6 77390-33011 77390-33011 / Check Valve

FUEL PUMP & COMPONENTS

$43.56 $32.67
7 77177-33010 77177-33010 / Gasket

Check Valve Gasket

FUEL PUMP & COMPONENTS

$12.76 $9.57
8 77393-52010 77393-52010 / Check Valve Protector

Check Valve Shield

FUEL PUMP & COMPONENTS

$17.87 $13.40
9 90080-44094 90080-44094 / Hose

FUEL PUMP & COMPONENTS, CUT OFF VALVE

$8.82 $6.62
10 95337-08034 95337-08034 / Hose

FUEL PUMP & COMPONENTS, CHECK VALVE

$16.87 $12.65
11 23221-0A040 23221-0A040 / Fuel Pump

FUEL PUMP & COMPONENTS

$342.86 $257.15
12 23217-0C010 23217-0C010 / Fuel Filter

Filter

FUEL PUMP & COMPONENTS

$14.14 $10.61
12 23217-0C010 23217-0C010 / Fuel Filter

AVALON; IN TANK; FOR FUEL PUMP

$14.14 $10.61
13 23249-0A020 23249-0A020 / Fuel Pump Cushion

Filter Cushion

FUEL PUMP & COMPONENTS

$16.00 $12.00
14 77024-06020 77024-06020 / Suction Valve

Filter Bracket

FUEL PUMP & COMPONENTS

$37.50 $28.13
15 77169-33020 77169-33020 / Fuel Pump Gasket

Filter Gasket

FUEL PUMP & COMPONENTS

$15.23 $11.42
18 83320-06010 83320-06010 / Fuel Gauge Sending Unit

Sending Unit

FUEL PUMP & COMPONENTS

$71.63 $53.72
18 83320-06010 83320-06010 / Fuel Gauge Sending Unit

AVALON

$71.63 $53.72
20 77168-33050 77168-33050 / Suction Tube Plate

Plate

FUEL PUMP & COMPONENTS

$25.54 $19.16
21 23020-0A010 23020-0A010 / Fuel Pressure Regulator

Pressure Reg

FUEL PUMP & COMPONENTS

$99.99 $74.99
21 23020-0A010 23020-0A010 / Fuel Pressure Regulator

AVALON

$99.99 $74.99
22 23300-0A020 23300-0A020 / Fuel Filter

AVALON; IN TANK; FOR FUEL TANK

$37.79 $28.34

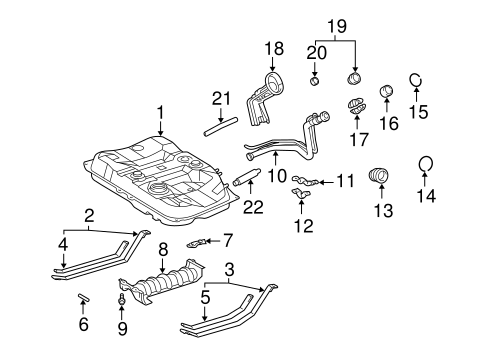

No. Part # Part # / Description List Price Price
1 77001-33161 77001-33161 / Fuel Tank

FUEL TANK & COMPONENTS

- -
2 77601-33010 77601-33010 / Fuel Tank Mount Strap

Fuel Tank Mount Strap, RIGHT

FUEL TANK & COMPONENTS

$62.15 $46.61
3 77602-33010 77602-33010 / Fuel Tank Mount Strap

Fuel Tank Mount Strap, LEFT

FUEL TANK & COMPONENTS

$62.15 $46.61
4 77681-32060 77681-32060 / Mount Strap Insulator

Fuel Tank Seat, RIGHT

FUEL TANK & COMPONENTS

$27.81 $20.86
5 77681-32060 77681-32060 / Mount Strap Insulator

Fuel Tank Seat, LEFT

FUEL TANK & COMPONENTS

$27.81 $20.86
6 90250-08019 90250-08019 / Mount Strap Pin

Fuel Tank Pin, RIGHT

FUEL TANK & COMPONENTS

$5.75 $4.31
6 90250-08019 90250-08019 / Mount Strap Pin

Fuel Tank Pin, LEFT

FUEL TANK & COMPONENTS

$5.75 $4.31
7 77246-06010 77246-06010 / Support Plate

FUEL TANK & COMPONENTS

$8.07 $6.05
8 77631-06011 77631-06011 / Tank Shield

Protector

FUEL TANK & COMPONENTS

$62.15 $46.61
9 90080-11169 90080-11169 / Heat Shield Bolt

Protector Bolt

FUEL TANK & COMPONENTS

$0.63 $0.47
10 77201-06021 77201-06021 / Filler Neck

Filler Pipe

FUEL TANK & COMPONENTS

$269.65 $202.24
11 77217-06020 77217-06020 / Filler Neck Support

Filler Pipe Support

FUEL TANK & COMPONENTS, UPPER

$13.99 $10.49
12 77216-06010 77216-06010 / Filler Neck Support

Filler Pipe Support

FUEL TANK & COMPONENTS, LOWER

$12.53 $9.40
13 77291-AC020 77291-AC020 / Shield

FUEL TANK & COMPONENTS

$29.71 $22.28
14 77391-20030 77391-20030 / Pocket O-Ring

Shield Retainer Ring

FUEL TANK & COMPONENTS, UPPER

$3.42 $2.57
15 77391-02040 77391-02040 / Pocket O-Ring

Shield Retainer Ring

FUEL TANK & COMPONENTS, LOWER

$2.90 $2.18
16 77248-06020 77248-06020 / Holder

FUEL TANK & COMPONENTS

$3.68 $2.76
17 77219-06020 77219-06020 / Filler Neck Upper Cover

Cover

FUEL TANK & COMPONENTS

$8.07 $6.05
18 77277-AA020 77277-AA020 / Pipe Shield

Shield

FUEL TANK & COMPONENTS

$118.92 $89.19
19 77310-48020 77310-48020 / Cap

Filler Cap

FUEL TANK & COMPONENTS

$29.36 $22.02
20 77316-06010 77316-06010 / Cap Gasket

Filler Cap Gasket

FUEL TANK & COMPONENTS

$19.60 $14.70
21 90080-44093 90080-44093 / Breather Tube

FUEL TANK & COMPONENTS

$5.32 $3.99
22 77213-06010 77213-06010 / Connector Hose

FUEL TANK & COMPONENTS

$42.15 $31.61
No. Part # Part # / Description List Price Price
N/A 23814-20021 23814-20021 / Fuel Rail

AVALON; RIGHT

$66.08 $49.56
N/A 23815-20021 23815-20021 / Fuel Rail

AVALON; LEFT

$66.08 $49.56
N/A 22270-0A060 22270-0A060 / Idle Speed Control

AVALON

$347.83 $260.87
No. Part # Part # / Description List Price Price
N/A 23209-0A010 23209-0A010 / Injector

AVALON; ALL

$177.93 $133.45
N/A 78180-07040 78180-07040 / Throttle Cable

AVALON

$90.71 $68.03
